Program : Voltage Monitor
CV/Gate Outs: Outputs for the four CV/Gate channels. Each can be either
a constant DC voltage (CV), momentary gate (G-M), or latched gate (G-L).
Push the channel buttons to either access the CV voltage value (and scroll
with the encoder knob to change) or engage the channel gate. Output
range is -5V to +10V.
Monitor Inputs: Inputs for
the four monitor channels.
Voltage range is +/-10V.
OUTPUT: Push for
the OUTPUT pop-
up menu, to assign
output functions (CV,
Gate-Momentary,
Gate-Latch) and
Gate high and low
voltage values.
The DATA’s Voltage Monitor program provides a four-channel voltage meter with time display, as well as four output channels
of continuous DC voltage (CV), momentary gate (GATE-MO), or latched gate (GATE-LA).
The voltage monitor display shows approximately 12 seconds of incoming information. For each channel display the thick
dotted center line represents 0V and the two ne dotted lines +/-5V. The display is designed to monitor constant or slowly
changing signals (LFOs, sequencers, manual CV or gate controls, etc.). Repeating signals at a frequency greater than 2 Hz will
experience display aliasing, as described in the DATA’s Oscilloscope Program section on aliasing distortion.
Output channels are congured via the OUTPUT pop-up menu in the top right corner. TYPE: CV conguration will output a
constant voltage from the channel’s output jack. To change this voltage, push the corresponding channel button at the bottom
of the display. The channel will then be highlighted in white and you can change the voltage via the encoder knob; scroll for
ne adjustment or push in while scrolling for coarse adjustment (1V per increment).
Output TYPE: GATE-MO congures the output as a momentary gate, where the voltage level set as G-HI is output only while
you press the associated channel button, otherwise the channel will output the G-LOW voltage. Output TYPE: GATE-LA
congures the output as a latched gate, meaning that the output voltage toggles between the high and low voltages with each
button press.

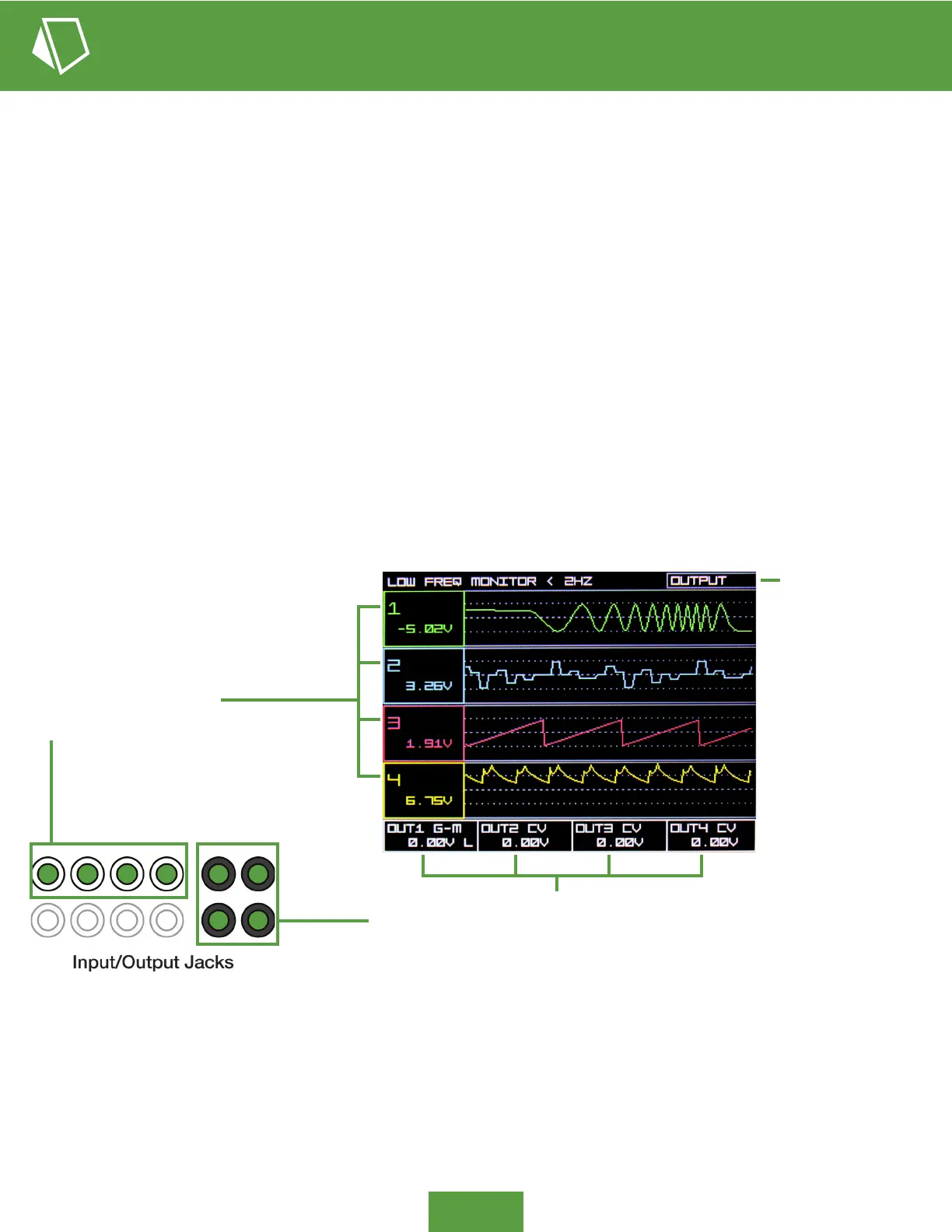

Voltage Monitor - Display Overview
