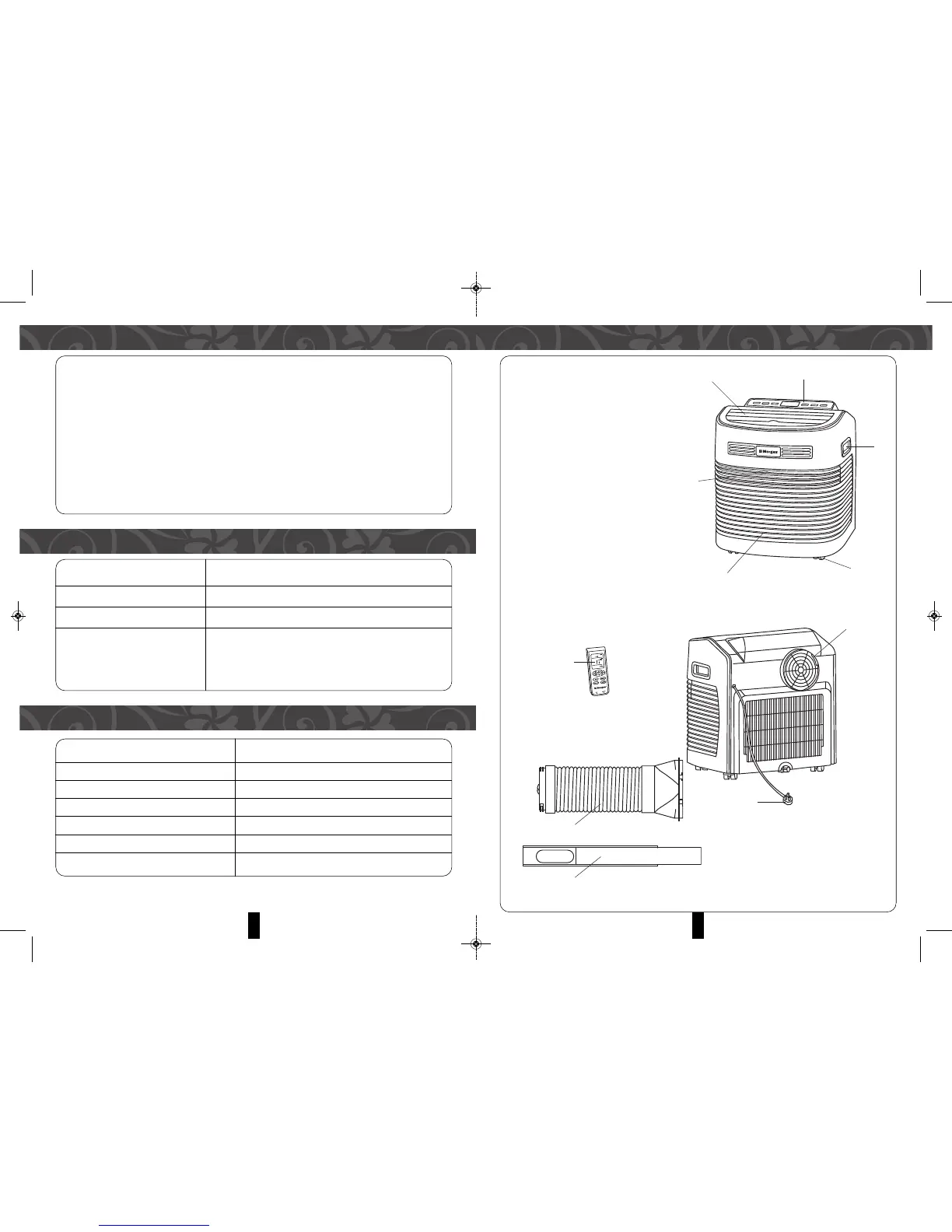

PARTS IDENTIFICATION
PARTS IDENTIFICATION
1. Caster
2. Handle
3. Control panel
4. Wind louver
5. Air inlet grille
6. Air inlet
7. Remote control
8. Air outlet
9. Plug
10. Exhaust pipe assembly
11. Window sealing plate assembly
1
2
3
4
5
6
8
9
7
10
11
10
MAINTENANCE
PERIODIC CLEANING
If the A/C will not be used for a long time:
• Pull out the water plug to drain residual water.
• Run the A/C under fan mode for 2 hour until its interior is dry.
• Turn off the A/C and unplug from power supply.
• Wash the filters and reassemble them.
• Remove the exhaust pipe and store it properly.
• Cover the A/C unit with a plastic bag and store it in a dry place.
INTELLIGENT ERROR DETECTION
SPECIFICATIONS
ERROR-DETECTING CODE MULTI-FUNCTIONAL DEFECTION
E1 Coil temperature sensor Error
E2 Indoor temperature sensor Error
E4 Anti-freezing protection: temperature of the coil is
too low and the A/C is off. When temperature
decreases to 8, anti-freezing protection will be
activated.
MODEL MAC-10PA TITANIUM
RATING VOLTAGE / FREQUENCY 220-240V~ 50Hz
RATED WATTAGE 1050W
MAX AIR FLOW 360m³/h
COOLING CAPACITY 10000Btu/hr
NET WEIGHT 27kg
DIMENSIONS(W x H x D) 480 X 510 X 430mm
