Page 38
CREASING
FAULT:- Pump will not operate when the Compressor switch is switched on.
Check the fuse on the PCB, in the Pump Overload assembly. The Pump Overload assembly is
located on the inside of the yellow leg, below the baffle plate.
If this fuse has blown it must be replaced with a T315mA fuse, Morgana part number 681-011.
WHITE
ORANGE REDYELLOW
Morgana Systems Ltd

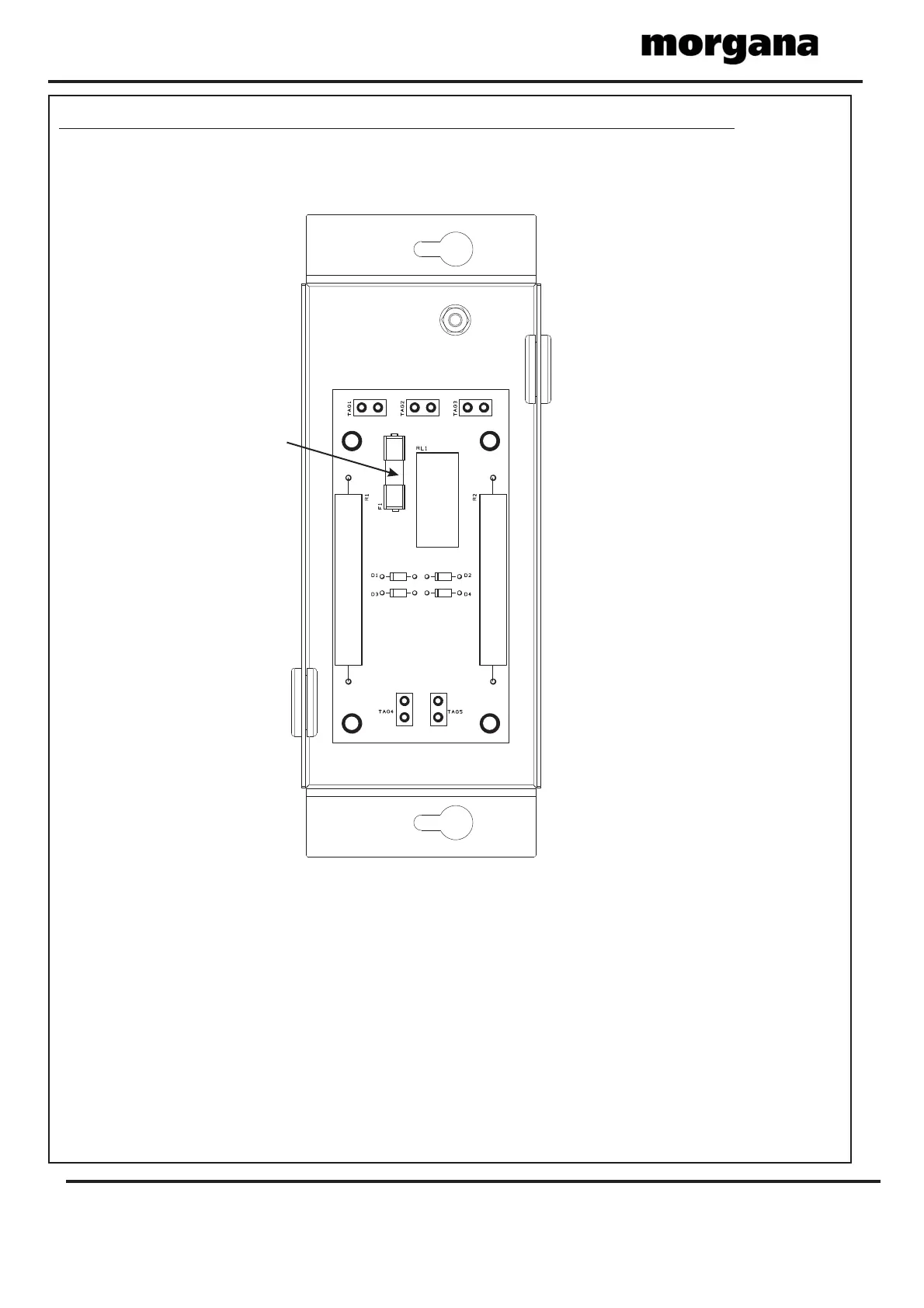

PUMP OVERLOAD BOARD
WHITE
T315mA
FUSE
T315mA
