C-8 OUTLINE OF SYSTEMS
4.6 Relationship between Cylinder Thrust and Gripping Force

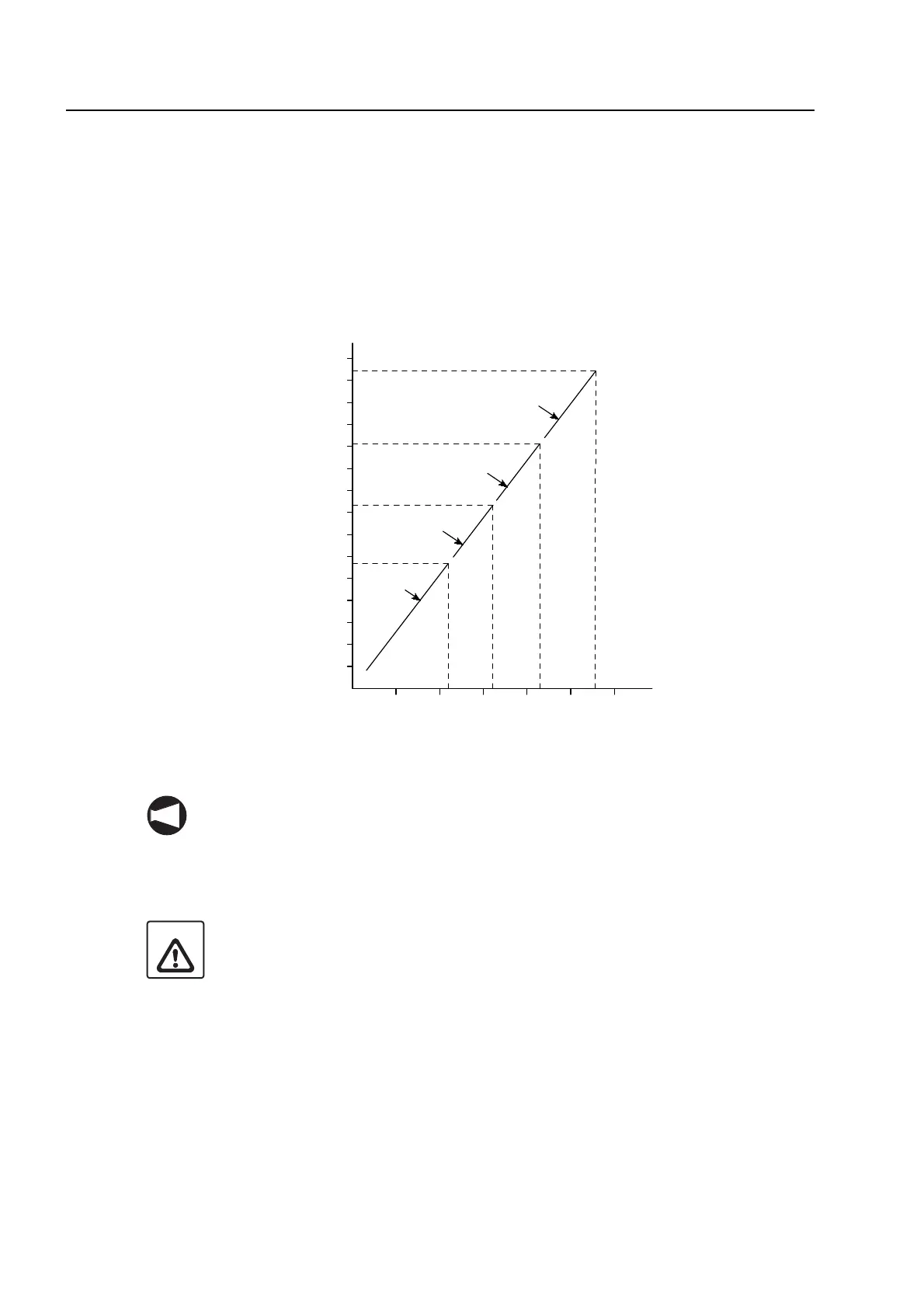

To determine the cutting conditions, use the following chart (Cylinder Thrust - gripping force
diagram) for reference.
Note that the relationship will vary slightly according to the grease characteristics.
Example) Kitagawa hollow chuck
The values given above are for reference only.
For the relationship between the cylinder thrust and the gripping force for the chuck
actually used, refer to the instruction manuals supplied by the chuck and cylinder
manufacturers.
The determination of machining conditions such as chuck pressure, spindle speed,
feedrate and depth of cut for cutting is the responsibility of the customer. In the event
of any difficulty in determining these conditions, consult the chuck and cylinder
manufacturers and tool manufacturers.
B-212
B-210
B-208
B-206
147.1
98.0
49.0
9.81 19.6 29.4 39.2 49.0 58.8
Cylinder Thrust (kN (lbf))
Total Gripping Force (kN (lbf))
NOTE
CAUTION
