Page 18 Morpheus Technologies

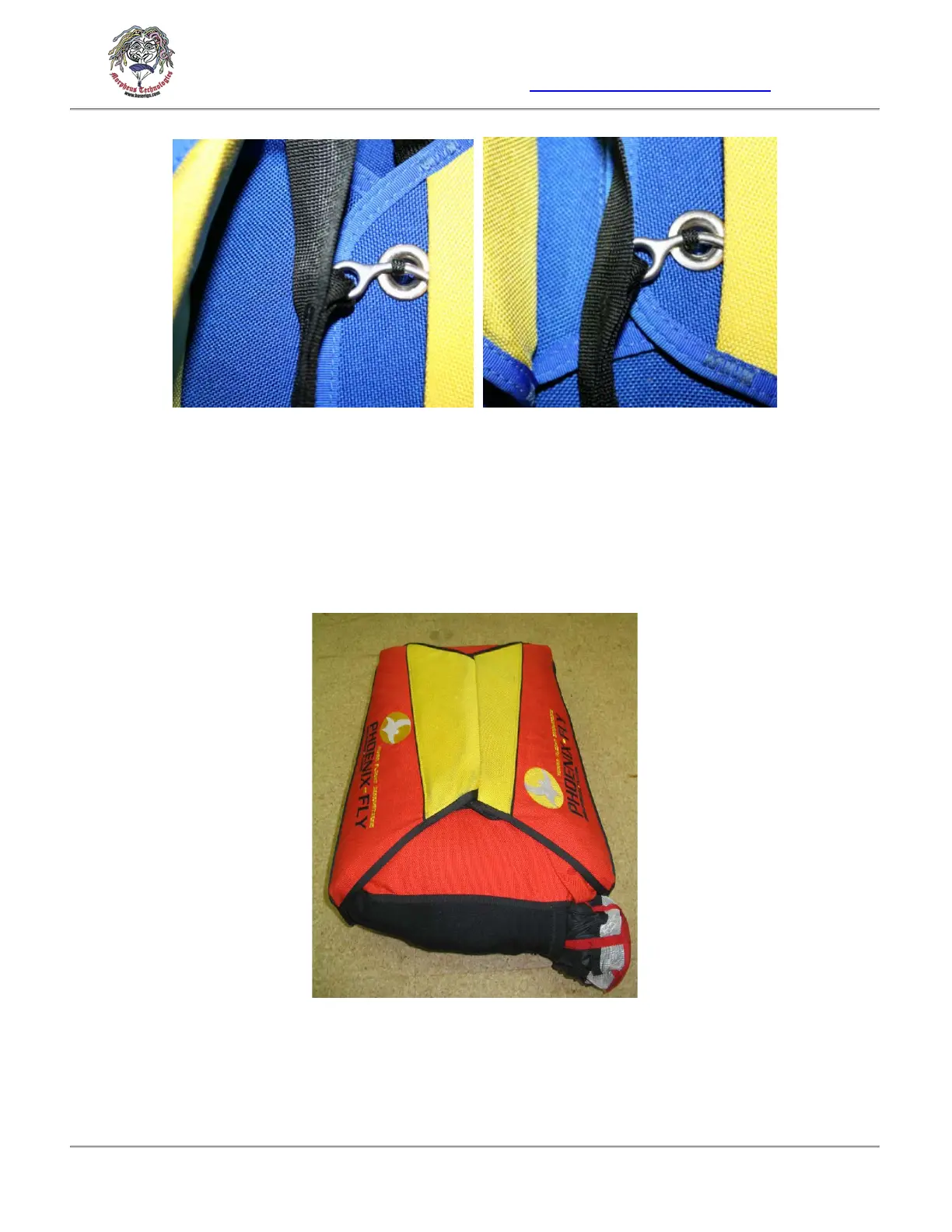

Figure 7a: Top closing loop Figure 7b: Bottom closing loop
Figure 7a and 7b: Take special care when threading the pins through the closing loops.
Ensure that you do not twist the closing loops and pass the pin through loop from left to
right so the pin shape resembles the arch of a bridge, with the end of the pin passing
under the right stiffener (therefore reducing the risk of the pin being pushed out). The
bridle should remain straight and not twisted, the bridle below the bottom pin should be
tucked under the right side flap and then fed in to the bridle protector flap.
Figure 8
Figure 8: Close the pin protector flap, taking care to keep the bride in its central position.
Proceed to the pilot chute section and follow instructions for the type of deployment that
you wish to use.
