Page 37 Morpheus Technologies
Section 10.3: Setting your brakes: Line Mod – No slider

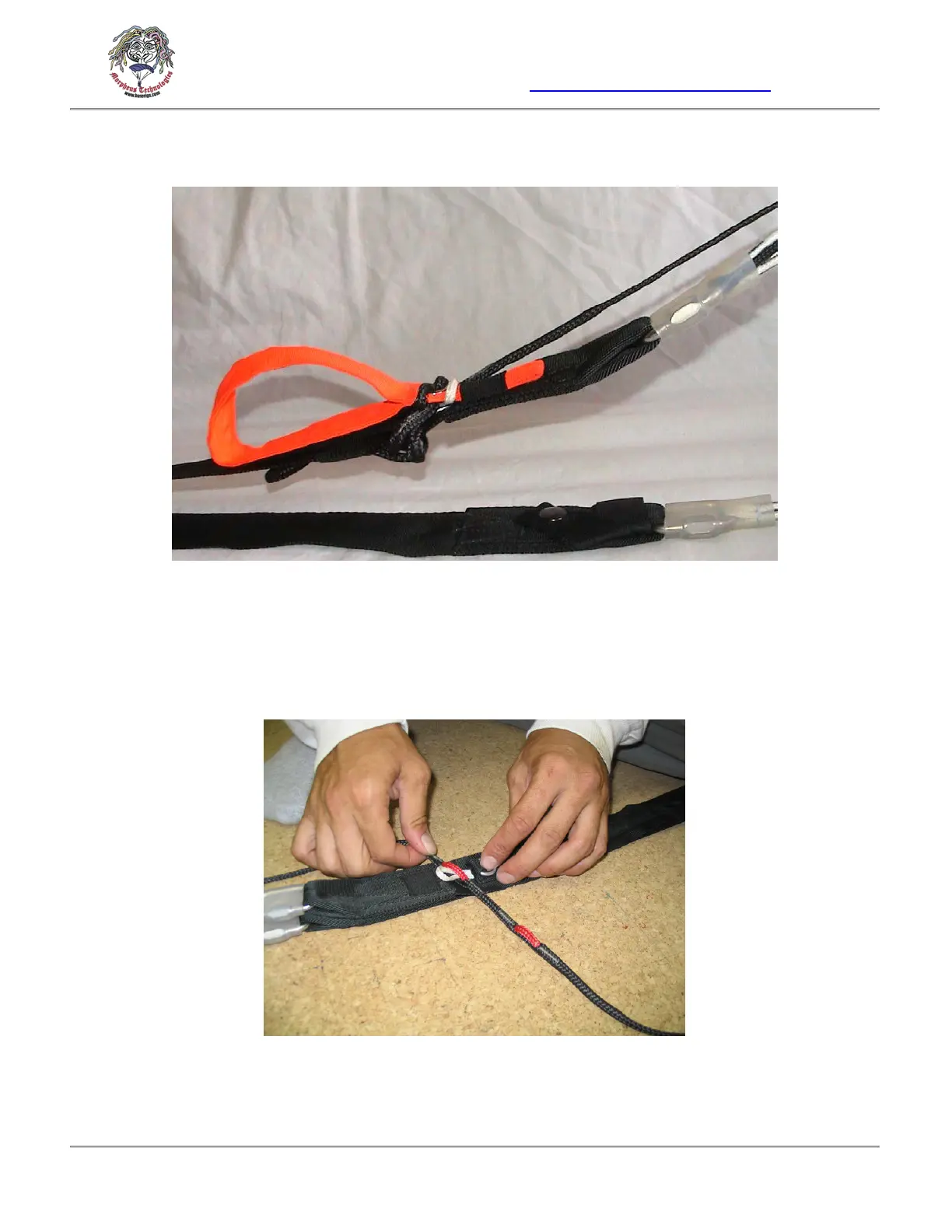

Figure A
Figure A: Be certain to ensure proper control line continuity and make sure that when the
brakes are unstowed, the control lines run straight from the toggle (your hand) to the
trailing edge of the canopy without passing through anything else. The top of the toggle
must never pass through the guide ring.
Figure 1
Figure 1: Determine which brake setting will be used and place the white loop on the riser
through the cat’s eye loop on the control line.
