9

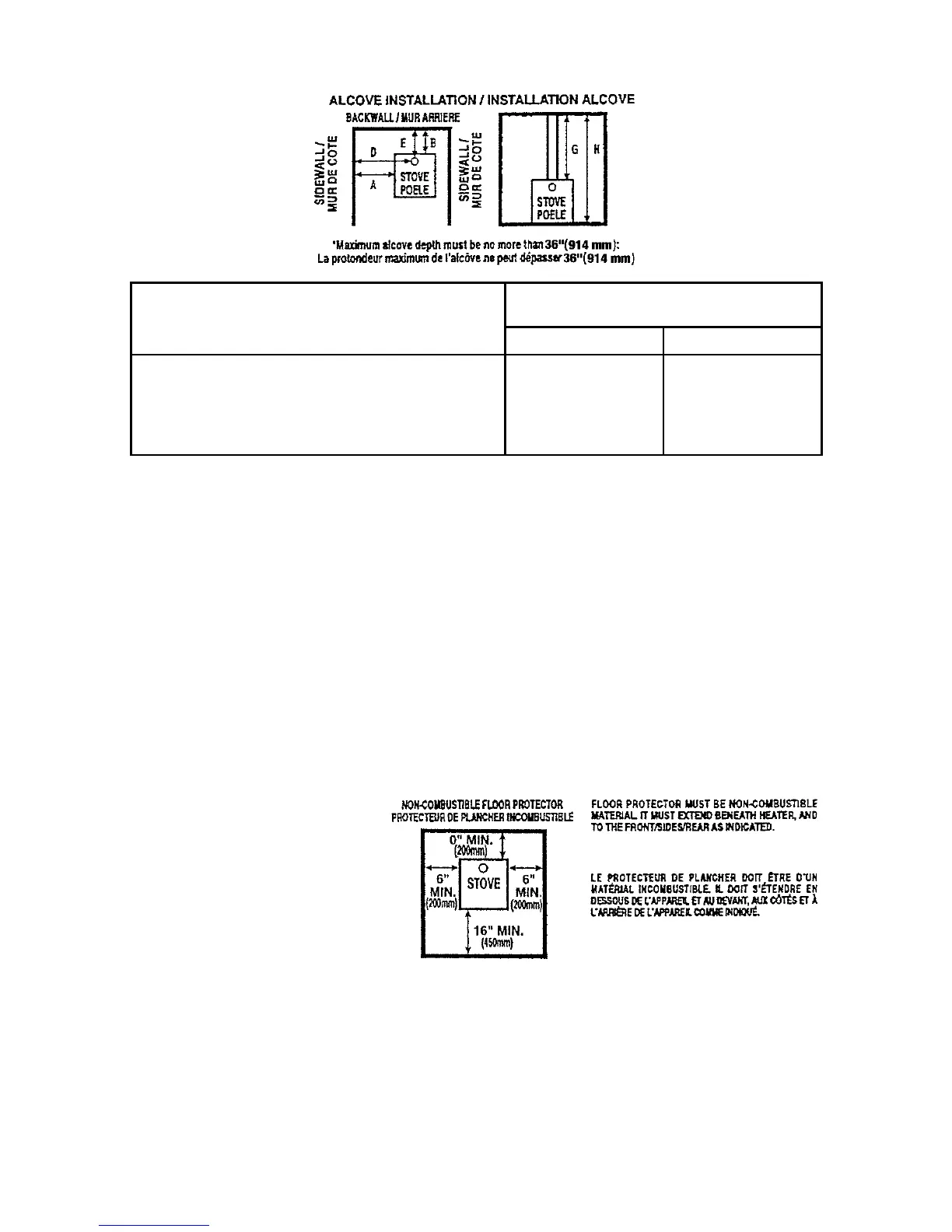

CLEARANCE REQUIREMENTS ALCOVE INSTALLATION
WITH DOUBLEWALL CONNECTOR
A. Sidewall to unit
B. Backwall to unit
D. Sidewall to connector
E. Backwall to connector
G. Unit to ceiling
H. Floor to ceiling
20” (508 mm)
9” (229 mm)
25” (635 mm)
11.5” (292 mm)
33” (838 mm)
60” (1524 mm)
16” (406 mm)
8” (203 mm)
23” (584 mm)
11” (279 mm)
33” (838 mm)
62” (1575 mm)
Flooring requirements
Combustible oor must be protected with non-combustible material beneath the unit and extend-
ing 16-in (450-mm Canada) to the front and 6-in (200-mm Canada) beyond each side of the fuel/
ash removal opening. For horizontal cimney connectors, non-combustible material must be place
beneath the connector and 2-in to each side.
You must ensure that the oor can hold the weight of the stove comfortably.
If using rear exit the oor protection must extend beneath the chimney connector and 2-in
beyond each side.
Distance to furniture
The recommended minimum dis-
tance from stove to furniture is 30
inches. Note that some furniture is
more easily aected by heat and
may need to be moved to a greater
distance. This is your responsibility.
In addition other combustible materials, away from the stove. In general, a distance of 30
inches must be maintained between the stove and moveable combustible item such as dry-
ing clothes, newspapers, rewood etc.
