1.5 Positioning the stove
Distance to walls and lintel
When the stove is positioned near combustible materials, observe all current local and na-
tional building regulations with regards to clearances. Whatever regulations apply to your
area, do not in any case install the stove within 8 inches of combustible materials around the
sides or 16 inches above the top of the stove. These distances may need to be increased if
the materials are sensitive to heat. Note also that wall paper and other decorative materials
may become detached with the eects of heat and care should be taken to ensure that they
do not fall towards the stove in such an event.
When the stove is positioned near non-combustible materials, a gap of 4 inches or more is
recommended for cleaning purposes and to ensure that heat circulates around the stove
and out into the room.

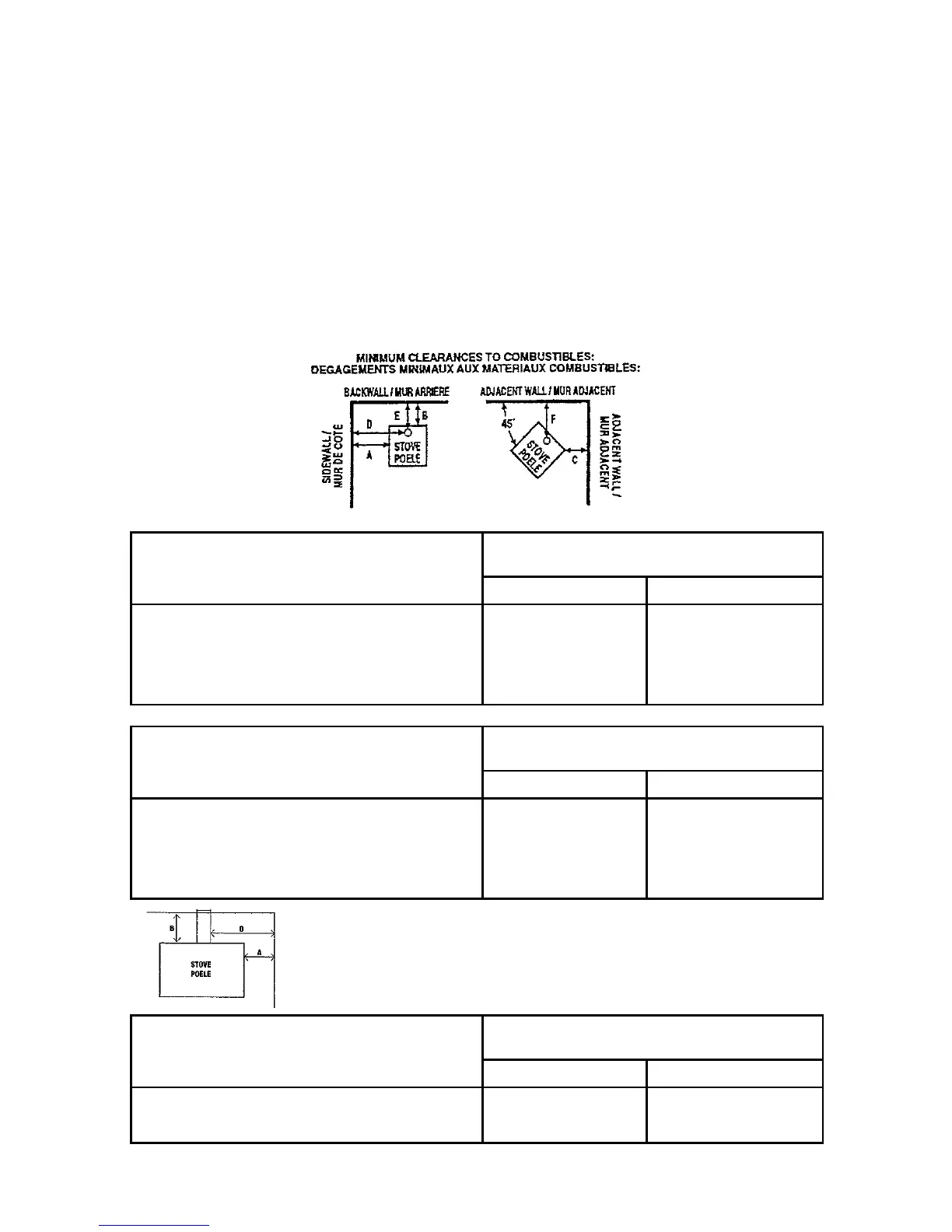

CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
SINGLEWALL CONNECTOR
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
20” (508 mm)
12” (305 mm)
17” (432 mm)
25” (635 mm)
14.5” (368 mm)
23” (584 mm)
16” (406 mm)
9” (228 mm)
13” (330 mm)
23” (584 mm)
12” (305 mm)
19” (483 mm)
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
DOUBLEWALL CONNECTOR
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
20” (508 mm)
8” (203 mm)
15” (381 mm)
25” (635 mm)
10.5” (267 mm)
21” (533 mm)
16” (406 mm)
7” (178 mm)
11” (279 mm)
23” (584 mm)
10” (254 mm)
17” (432 mm)
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
rear vent out the back - doublewall connector
A. Sidewall to unit
B. Backwall to unit
D. Sidewall to connector
20” (508 mm)
9” (229 mm)
25” (635 mm)
16” (406 mm)
8” (203 mm)
23” (584 mm)
Rear vent out the back conguration
