1.6 Fluepipe connections

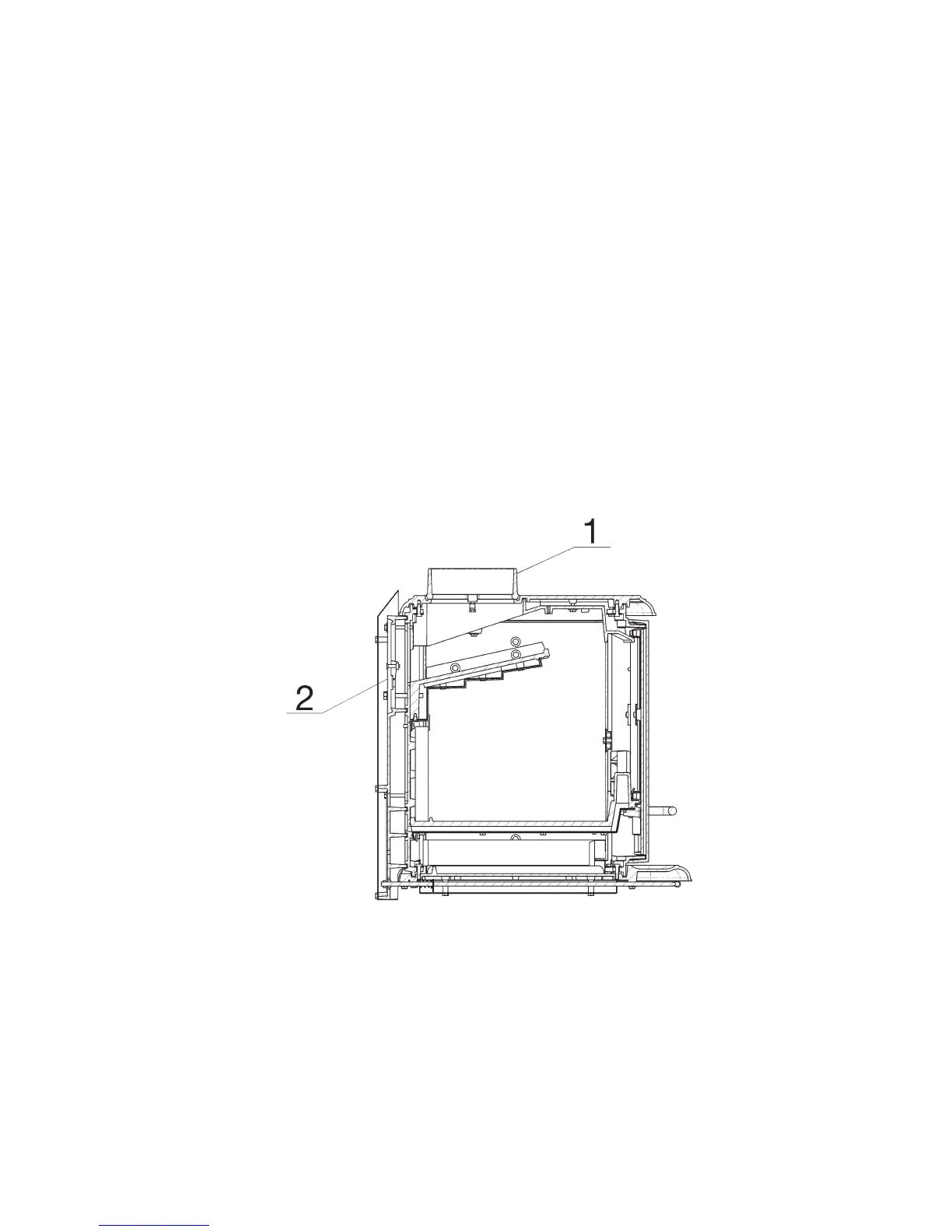

Morsø 3610 & 3640 are supplied with a factory fitted flue collar (1), this is fitted to the top
plate. A round cast iron blanking plate (2) covers the rear flue outlet (behind the rear heat
shield).
When required, the flue collar (1) can be removed and relocated to the rear flue outlet. To do
this, simply knock out the round panel cut into the rear shield to reveal the cast iron blanking
plate (2) situated behind. Untwist the blanking plate (2) anticlockwise and remove. The flue
collar (1) can now be clamped into position using the fixing lugs attached.
If the stove is fitted with a flue out of the top, the chimney should have a cleaning cover fit-
ted directly above the stove. The cleaning cover can face backwards, purely for cosmetic
reasons.
The blanking plate (2) should then be positioned onto the top flue outlet and secured into
place by pressing downwards and twisting clockwise. The blanking plate (2) can also function
as an extra clean-out access whilst performing the annual cleaning service of the stove and
chimney.
