1.6 Connecting the flue pipe
Lift the upper cast iron top plate off the stove.
Note: the round cast iron cover plate in the top plate must remain mounted if the stove is being
installed with the flue pipe to the rear, but unscrewed from the upper top plate if the flue pipe
is being installed pointing upwards.
Mounting the flue collar pointing upwards
From the factory, the stove is prepared for installation with the included flue collar (1) pointing
upwards with included ball stop and screws. The ball stop, which prevents the chimney sweep
from damaging the stove’s baffle plates while sweeping, is the 145 mm long rod that is provi-
ded.
Mounting the flue collar to the rear
If the stove is being installed with the
flue pipe to the rear, the round plate
fixed with two screws on the back of
the stove is dismounted. The iron pie-
ce on the inside convection back pa-
nel is knocked out with light, firm
taps with a hammer next to the small
”bridges” holding the piece.
The cast iron cover is removed from
the back panel and mounted on the
top plate. The flue collar is centred
and screwed onto the back of the st-
ove with the clamps and screws pro-
vided. The ball stop is not used when
installing the flue collar to the rear.

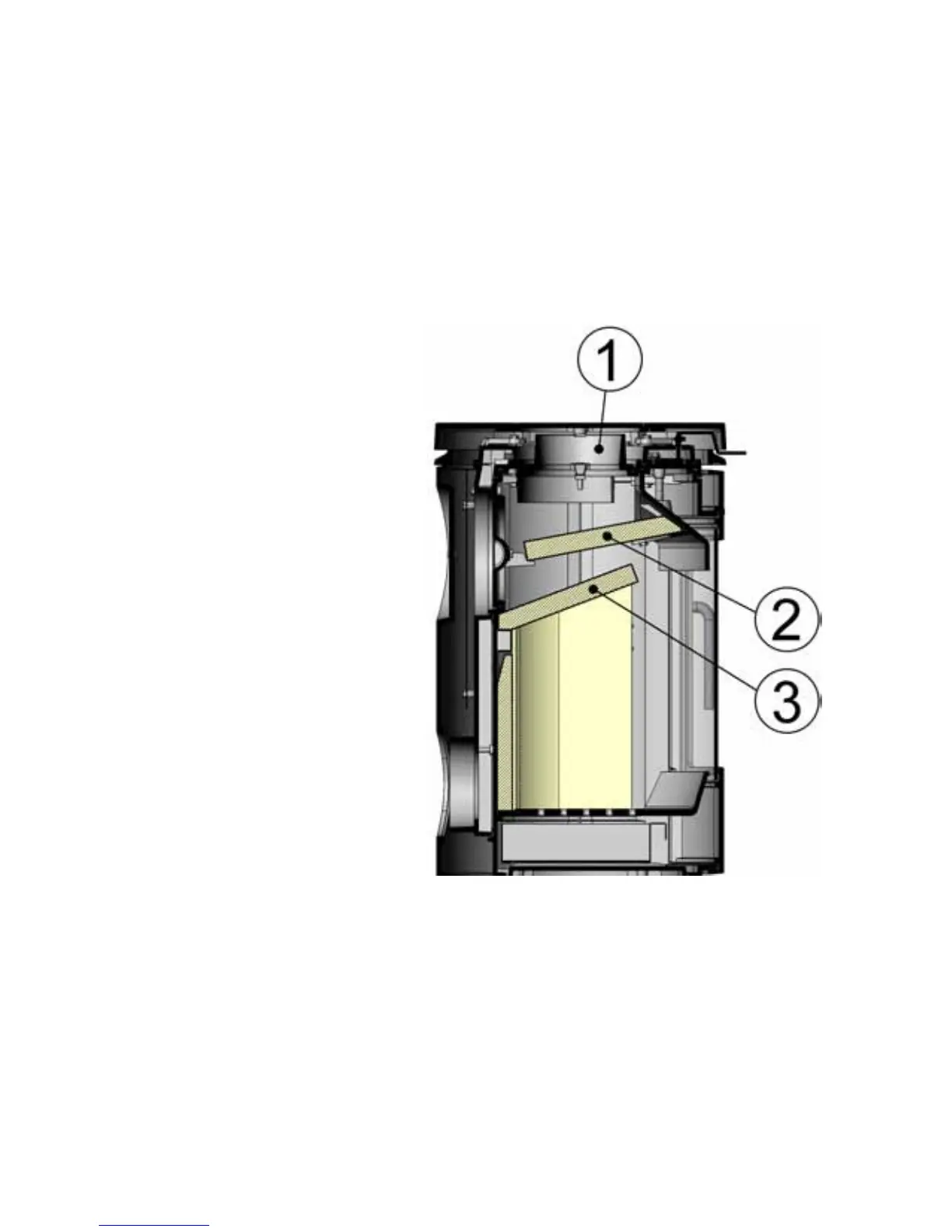

The location of the baffles
The baffles (2) and (3), which are
made from vermiculite, are mounted
at the factory.
Make sure that the baffles are cor-
rectly assembled before lighting the
stove (please see the sketch).
1.7 Connecting to a brick chimney
Brick a flue bushing securely into the wall, and insert the flue pipe into it. The pipe must not
extend into the actual chimney opening, but only to the inside of the chimney aperture. The
joints between the stove/pipe and pipe/wall bushing must be sealed with the glass tape provid-
ed. It is not normally necessary to seal between any pipe joints.
If the flue pipe transitions from horizontal to vertical, it is a good idea to install it with a gentle
bend so as to avoid any loss of draught.
The flue pipe must be dimensioned in accordance with national and local regulations. Morsø
recommends, however, that flue pipes be made of 2 mm sheet steel as this will extend the
service life.
