02/12/16 CH7K20C1_IT-EN-DE
ENGLISH
ENGLISH
REV.0-12/16

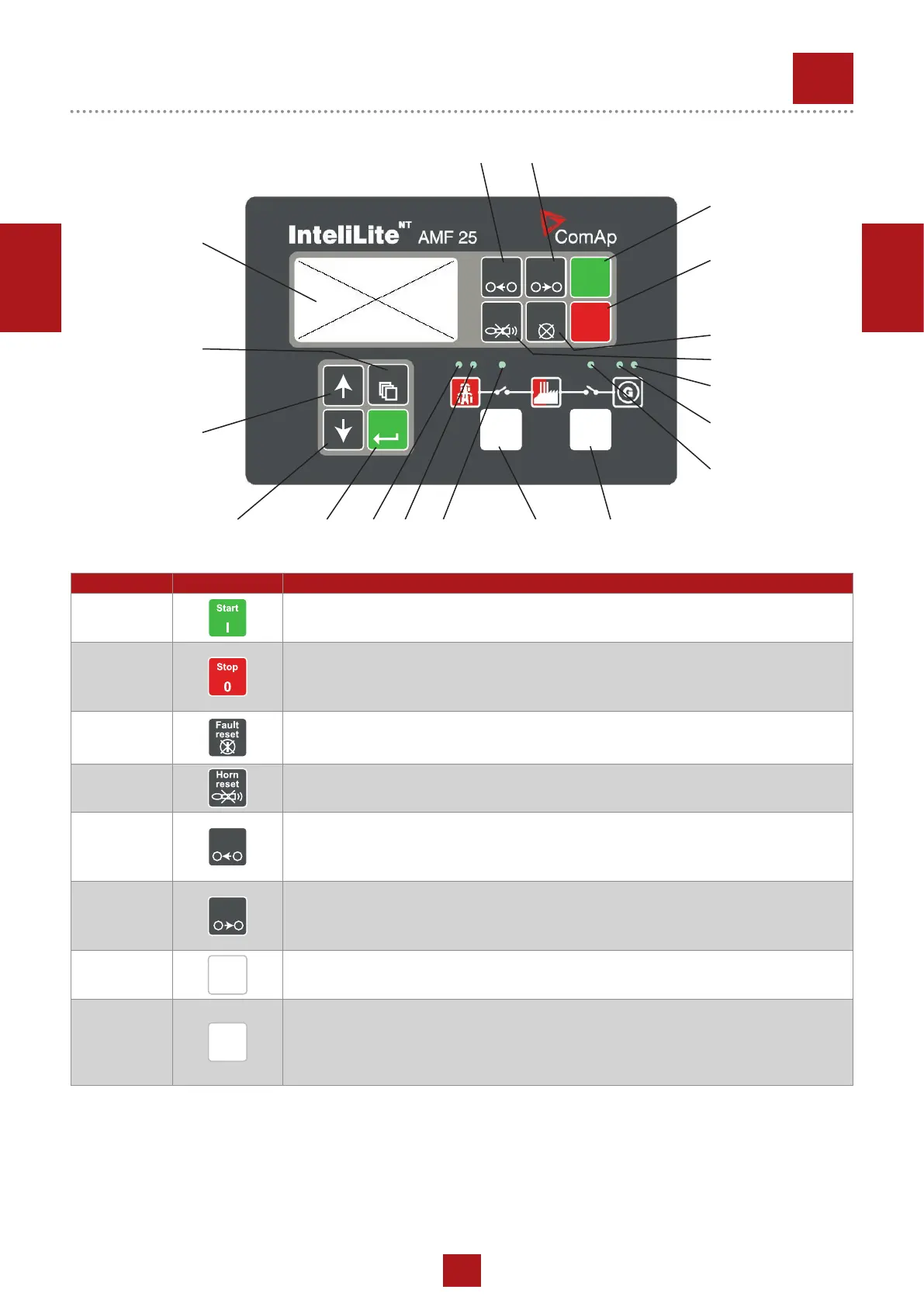

CONTROLLER AMF25
POSITION BUTTON DESCRIPTION
1
START BUTTON: Works in MAN mode only. Press this button to initiate the start sequence
of the engine.
2
STOP BUTTON: Works in MAN mode only. Press this button to initiate the stop sequence
of the gen-set. Repeated pressing or holding the button for more than 2s will cancel current
phase of stop sequence (like ramping the power down or cooling) and next phase will con-
tinue.
3
FAULT RESET BUTTON: Use this button to acknowledge alarms and deactivate the horn
output. Inactive alarms will disappear immediately and status of active alarms will be chan-
ged to “con rmed” so they will disappear as soon as their reasons dismiss.
4
HORN RESET BUTTON: Use this button to deactivate the horn output without acknowled-
ging the alarms.
5
Mode
MODE LEFT BUTTON: Use this button to change the mode. The button works only if the
main screen with the indicator of currently selected mode is displayed.
Note: This button will not work if the controller mode is forced by one of binary inputs Remo-
te OFF, Remote MAN, Remote AUT, Remote TEST.
6
Mode
MODE RIGHT BUTTON: Use this button to change the mode. The button works only if the
main screen with the indicator of currently selected mode is displayed.
Note: This button will not work if the controller mode is forced by one of binary inputs Remo-
te OFF, Remote MAN, Remote AUT, Remote TEST.
7
I / 0
GCB BUTTON: Works in MAN mode only. Press this button to open or close the GCB ma-
nually. Note that certain conditions must be valid otherwise GCB closing is blocked.
8
I / 0
MCB BUTTON: Works in MAN mode only. Press this button to open or close the MCB ma-
nually.
Caution!
You can disconnect the load from the mains supply with this button! Be sure you know well
what you are about to do!
GEN-SET CONTROL BUTTONS
Start
I
Enter
Stop
0
Fault
reset
I
Horn
reset
Mode
Page
Mode
I / 0 I / 0
15
16
17
5 6
1
2
3
4
9
10
11
781213141918
4. OPERATOR INTERFACE AMF 25
