Motion Composites Helio A7 User Manual

T (450) 588-6555 - 1 866 650-6555 F (450) 588-0200
info@motioncomposites.com
16
If you ignore these Warnings or fail to inspect or maintain your
wheelchair as directed in the manual , you may fall, tip over or lose
control of the wheelchair and seriously injure yourself or others or
damage the wheelchair.

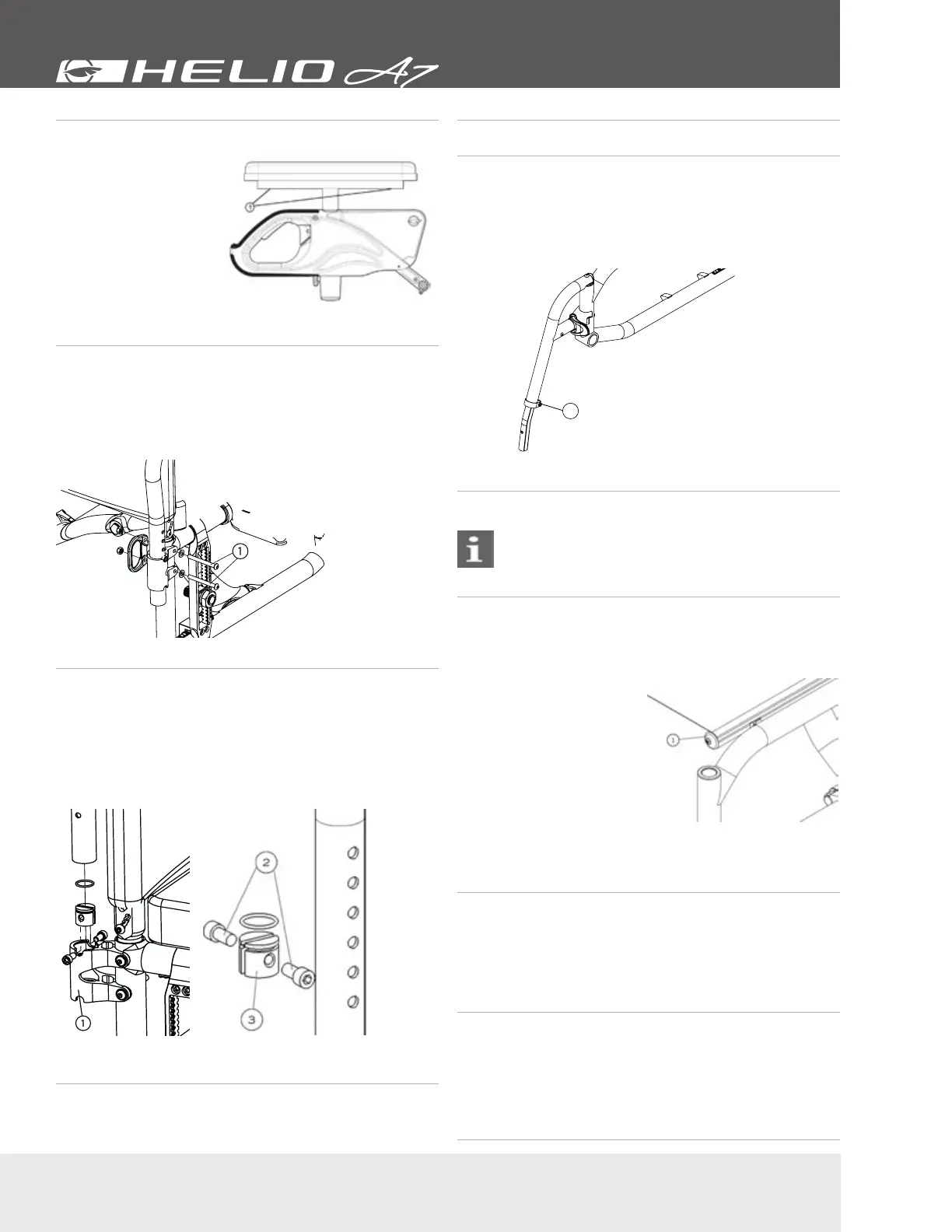

10.6.4 Replacing Armrest Pad
• Remove screws (1) (Fig.
20) located under pad
(through the tube).
• Replace with new
armrest pad.
• Reinstall screws (1) and
tighten firmly.
Fig. 20
10.6.5 Installing the Swing-away Armrest
receiver
• Remove the two bolts (1) (Fig. 21).
• Align the armrest receiver with the mounting holes of the
frame and of the transit securement anchor.
• Reinstall the bolts and tighten firmly.
Fig. 21
10.6.6 Adjusting Swing-away Armrest height
• Pull the armrest out of the receiver (1) (Fig. 22).
• Remove screws (2) (Fig. 23).
• Inside the armrest tube, slide the dowel nut with a long flat
screwdriver at the desired height (3)
• Reinstall screws (2).
• Reinsert armrest in receiver.
Fig. 22 Fig. 23
10.7 Footrest lenght
10.7.1 Adjusting Footrest length
• Loosen screw (1) (Fig. 24).
• Slide the extension tube inside the front rigging at the desired
length.
• Tighten screw (1) firmly.
1
Fig. 24
10.8 Seat
It may be difficult to unfold the wheelchair if the seat
upholstery has been installed too tight.
10.8.1 Replacing Seat Upholstery
SLIDE-ON SLING
• Remove end cap (1) (Fig.
25).
• Slide in new seat upholstery.
• Reinstall end cap (1)
• Adjust tension with the
velcro located under the
seat upholstery.
• Fully open the wheelchair
and make sure the
upholstery is tight. The
seat rails must be snapping
easily in the seat rail
supports.
Fig. 25
10.9 Seat-to-floor height
Any modification to the seat-to-floor height involves adjustment
of anti-tippers, front caster angle, and rear wheel toe-in/toe-out
if equipped with 3° or 6° camber. It is important to do these
adjustments before using the wheelchair as to reduce risk of
injuries.
10.9.1 Changing the Front Seat-to-Floor Height
To change the front seat-to-floor height, you can do one of the
following:
• Install the front caster in a different hole on the fork
• Install different caster size.
• Change the stem bold length (Standard, +1” (2.5 cm) and +2”
(5.0 cm) available)
