MotionGrey Motion Series - Step 1: Separate Frame Ends; Step 2: Attach Frame to Leg; Step 3: Install Side Bracket

❶
❸
❷

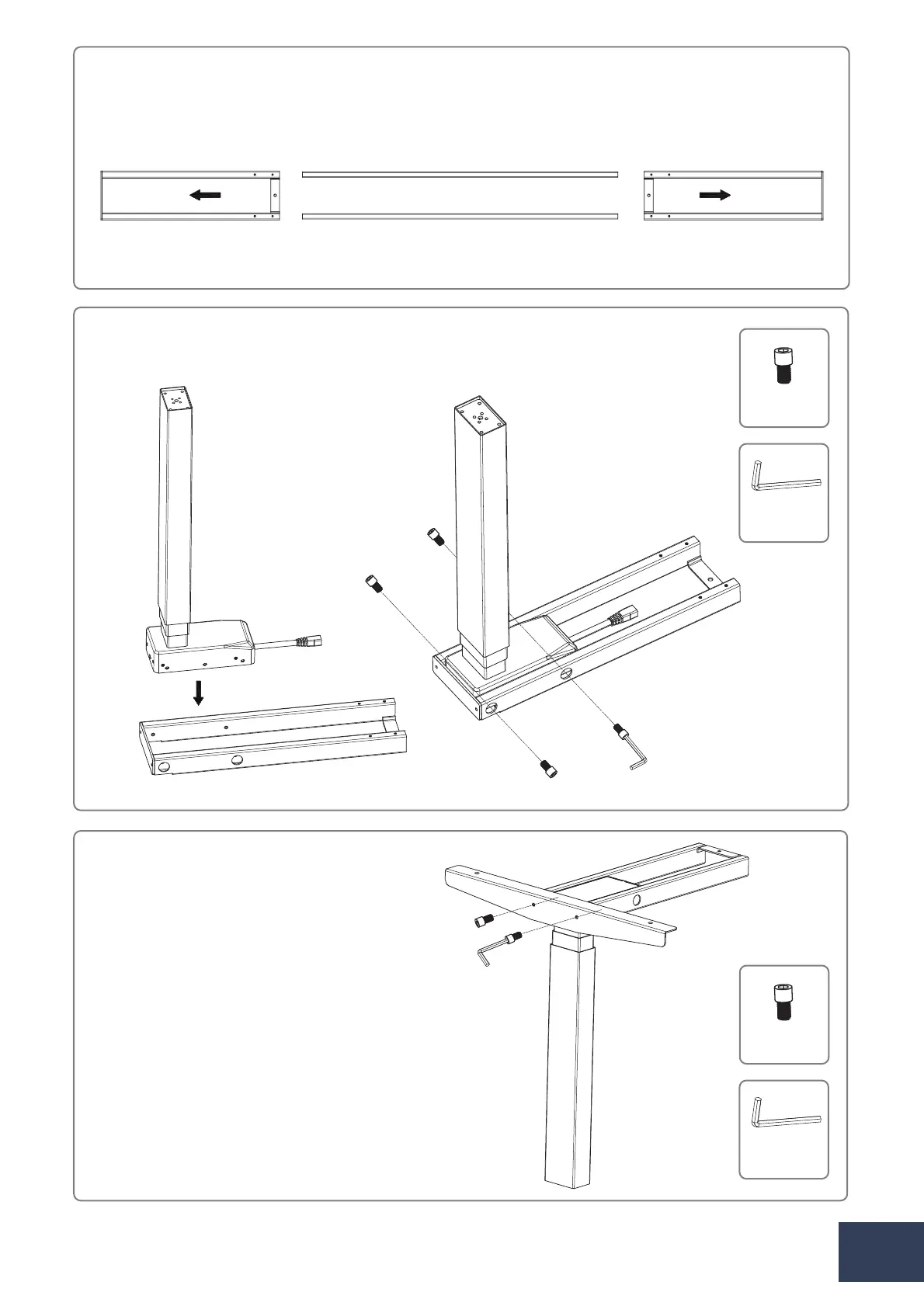

Separate the frame ends from the center rail inside.
Insert the frame end into the leg part, and then use the Allen
key to insert and tighten the four M6x10 screws.
Slide the side bracket into the frame
end. Insert two M6x10 screws
through the holes in the frame end
into the side bracket. Use the Allen
key to tighten the screws.
Repeat the same process for the
other frame end and leg assembly.
M6x10
5mm
Allen Key
M6x10
5mm
Allen Key
3
