All treadmills require adjustment of the running belt before leaving the factory and
after installation, but there may be some slack after a period of use. For example:
The user has the phenomenon of pause and slippage when running. When this
phenomenon occurs, adjust the adjusting bolts of the running belt synchronously
from left to right in a half-turn clockwise direction. (If you want to tighten the
running belt, do the opposite, and operate in a counterclockwise direction.) If the
running belt is too loose, if you step on the running belt, the running belt and the
roller will slip. load, damage the motor, running belt and drum, etc.
Belt Tension Adjustment
1. Put the electric treadmill on a flat surface.
2. Use an electric treadmill to run at a speed of about 3.5 km/h.

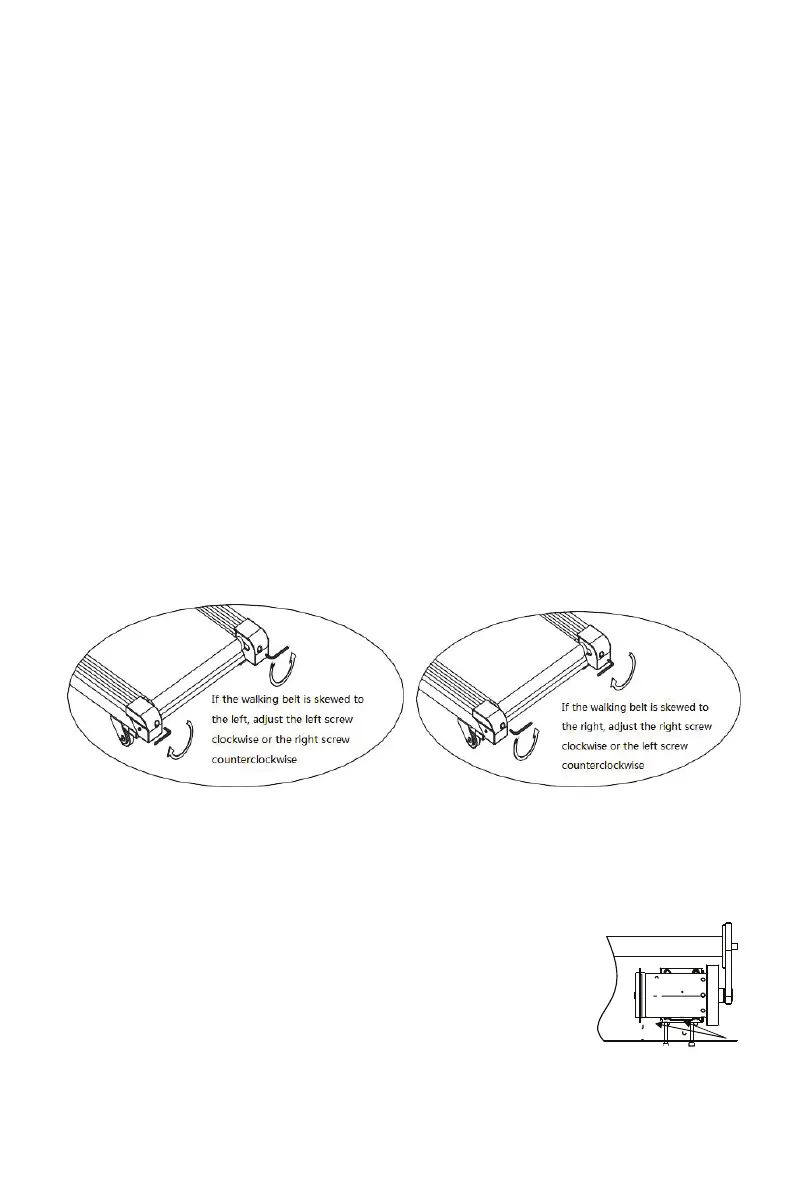

3. If the running belt is skewed to the left, turn the left adjustment bolt 1/2
turn clockwise and the right adjustment bolt 1/2 turn counterclockwise.
4. If the running belt is inclined to the right, turn the right adjusting bolt 1/2
turn clockwise, and then turn the left adjusting bolt 1/2
Running Belt Alignment
All treadmills have been adjusted on the drive belt before leaving the factory,
but after a period of use, there may be looseness and slippage,
which is mainly adjusted by the user.
Adjustment of the Drive Belt
Adjustment steps (as shown on the right):
① Turn the adjusting bolt clockwise with a wrench
② The adjustment range is subject to no slip under load
Note: Regularly clean the inclusions in the belt grooves and pulley grooves.
