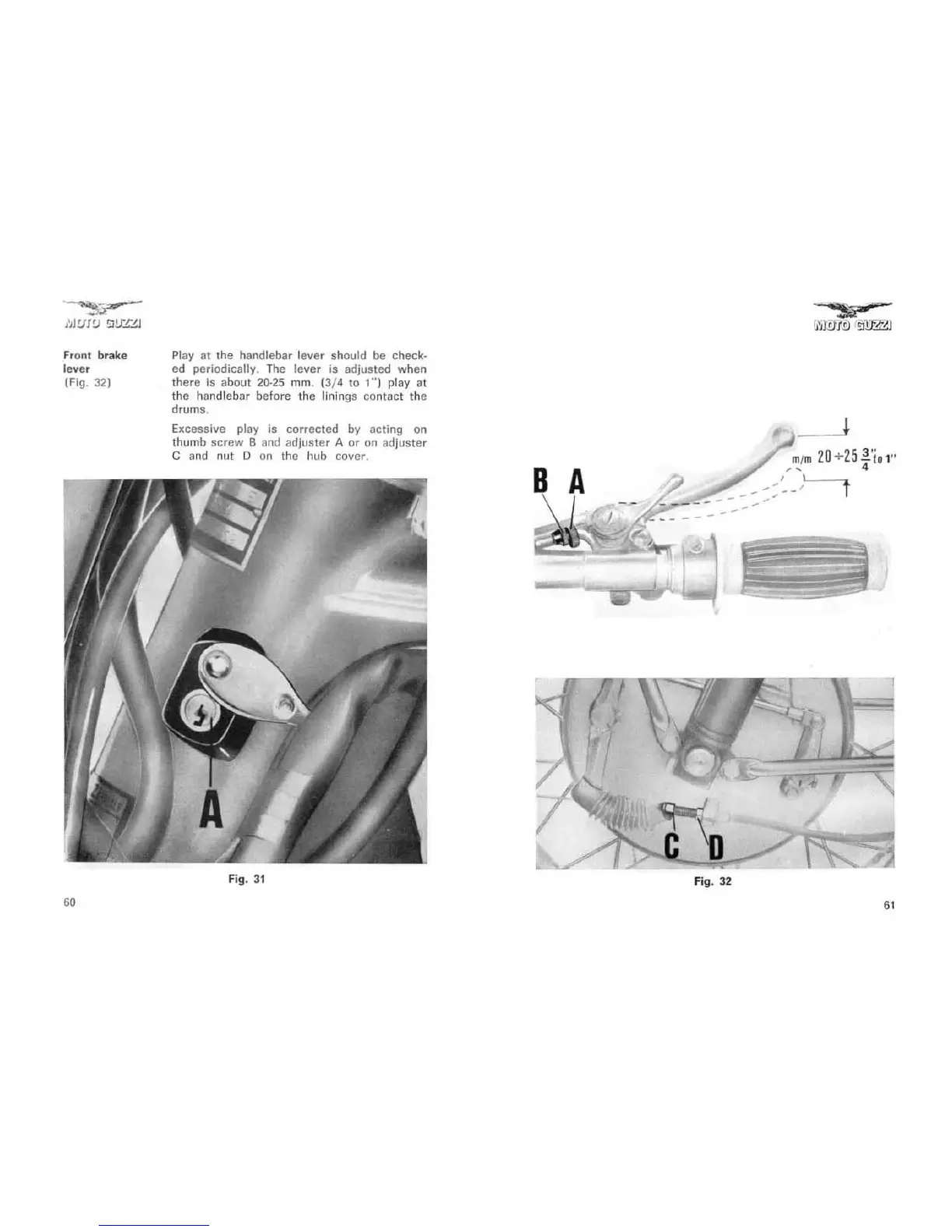

MOTO GUZZI 850 ELDORADO - Front Brake Lever Adjustment

. ~
j~J!Jl~ ~!.f~J
Fr ont brake
lever
(Fig. 32)
60
Play lit the handlebar lever should be check·
ed periodically. The lever is adjusted when
there Is about 20·25 mm. (3/4 to ,") play at
the handlebar before the linings cont ac t the
drums.
Excessive play Is corrected by acting on
thumb scr ew B and adjuster A or on adju st er
C and nut 0 on the hub cover .
Fig. 31
m/m 20+ 25 ! ' io 1"
"
4
,·L-' t
F ig . 32
6t
