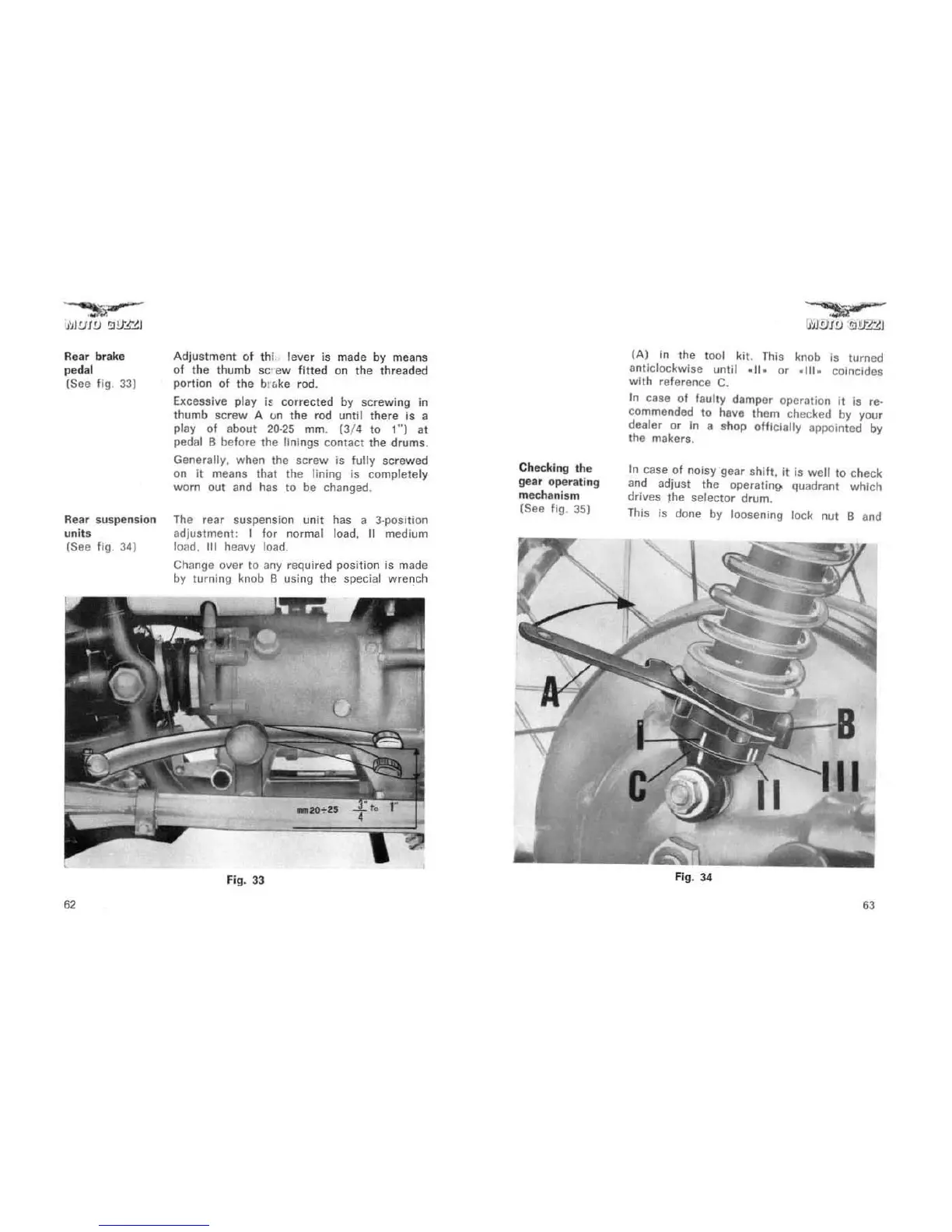

MOTO GUZZI 850 ELDORADO - Rear Brake Pedal and Suspension Units

Rea r brake
pedal
[See fig.
33J
Rear suspensi on
units
[See fig.
34)
62
Adjustment of Ih i lever is made by means
of the thumb sc ew fitted on the threaded
portion
of the b rb ke rod.
Excessive play
i~ corrected by screwing in
thumb screw A un the
rod unt il there is a
play of about 2().25 mm. {3 / 4 to 1" ) at
pedal 8 before the li nings contact the drums.
Generally. when the screw is lully screwed
on
It means that the lining is comple tely
worn out and has to be changed.
Th e rear suspension unit has II 3·position
adjustment: I for normal load, II medium
load. til heavy load.
Change over to any requ ire d position is made
by turning knob B u si ng the speci al wrench
Fig.
33
Ch ecking the
gear
operating
mechanism
[See fig.
35)
(AJ in the 1 001 kit. Th is knob Is turned
ant1clockwlse until .11. or .111 . coincides
with reference C.
In case of faully damper operation il Is r eo
commended to have th em checked by your
dealer
or in a shop officially appointed by
the makers.
In case 01 noisy gear shih. it is weI! to check
and adjust the
operating. quadrant which
driv es Ihe selector drum.
This
is done by loosening lock nul Band
Fi g. 34
63
