Handlebar

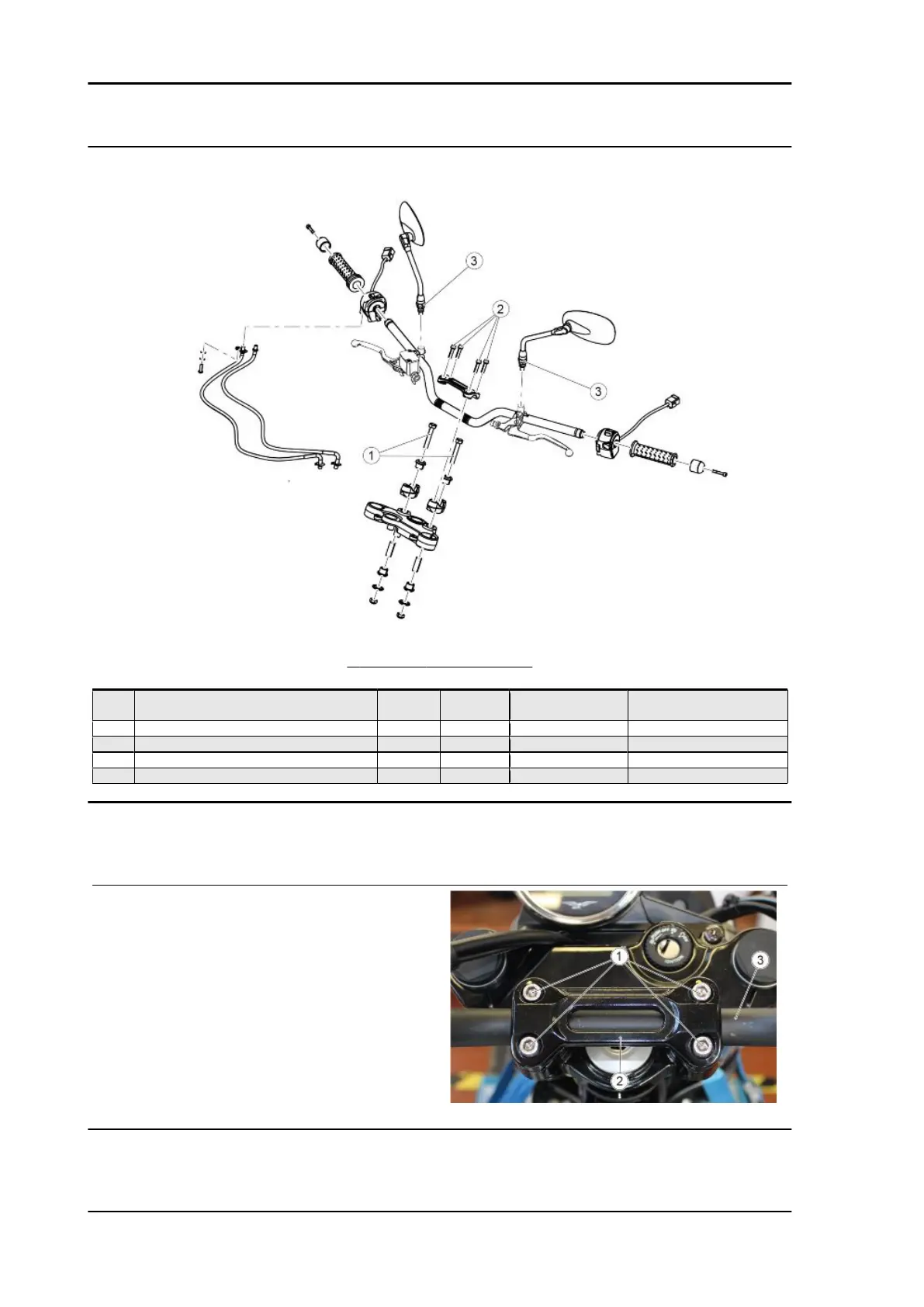

HANDLEBAR AND CONTROLS
Pos. Description Type Quantity Torque Notes
1 Screw fixing handlebar support U-bolts to
steering plate
M10 2 50 Nm (36.88 lb ft) -
2 Handlebar U-bolt fastener screws M8 4 25 Nm (18.44 lbf ft) -
3 Mirror fixing M10 2 Manual -
- Light switch fastening screws SWP 5 2 1.5 Nm (1.11 lb ft) -
- Throttle cable cover fastening screws M5 3 6 Nm (4.43 lbf ft) -
Removing
(SPECIAL/STONE)
•
Remove the light switches
•
Unscrew and remove the four fasten-
ing screws (1)
•
Remove the upper U-bolt (2)
•
Remove the handlebar (3)
Suspensions V7 E5 Special-Stone
SUSP - 190
