REMOVING
AND
REFITTING
THE SHOCK
ABSORBERS
AND
THE
SWING
ARM
REMOVING
THE
SHOCK
ABSORBERS:
Remove
the locknut
on the
shock
absorber
lower mounting
bolt
(tgmm
open
wrench,
fi9.
1).
Remove
the lower
mounting
bolts
(13mm
wrench,
fig.
2).
Collect
the locknuts,
spacers,
and washers.
The
wheel
and sw'ing
arm assembly
are
now free
to
drop
down.
Remove
the
upper bolt
assemblies
(tgmm
wrench, fig. 2).
Remove
the shock
absorbers.
REFITTING
THE SHOCK ABSORBERS:
Reverse
the above
procedure
but screw
in
the riqht hand
lower bolt
locknut
before
screwing
the
bolt in
fully.
When the bolt is
screwed
home,
the dis-
tance between
the bolt
and
the
freewheel
prevents
locknut
fittinq.
G2o

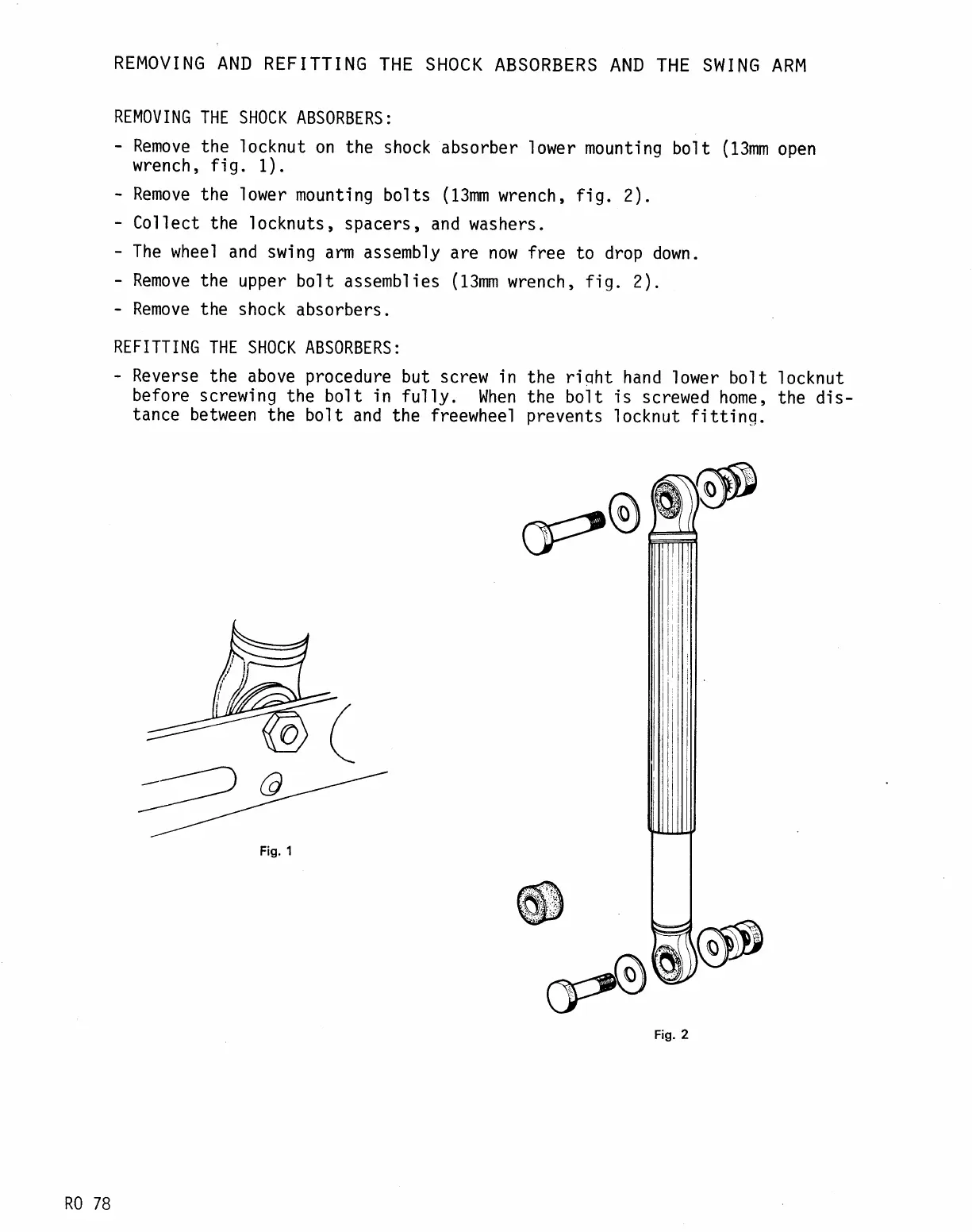

Fis. 1
s20
RO
78
Fig.2
