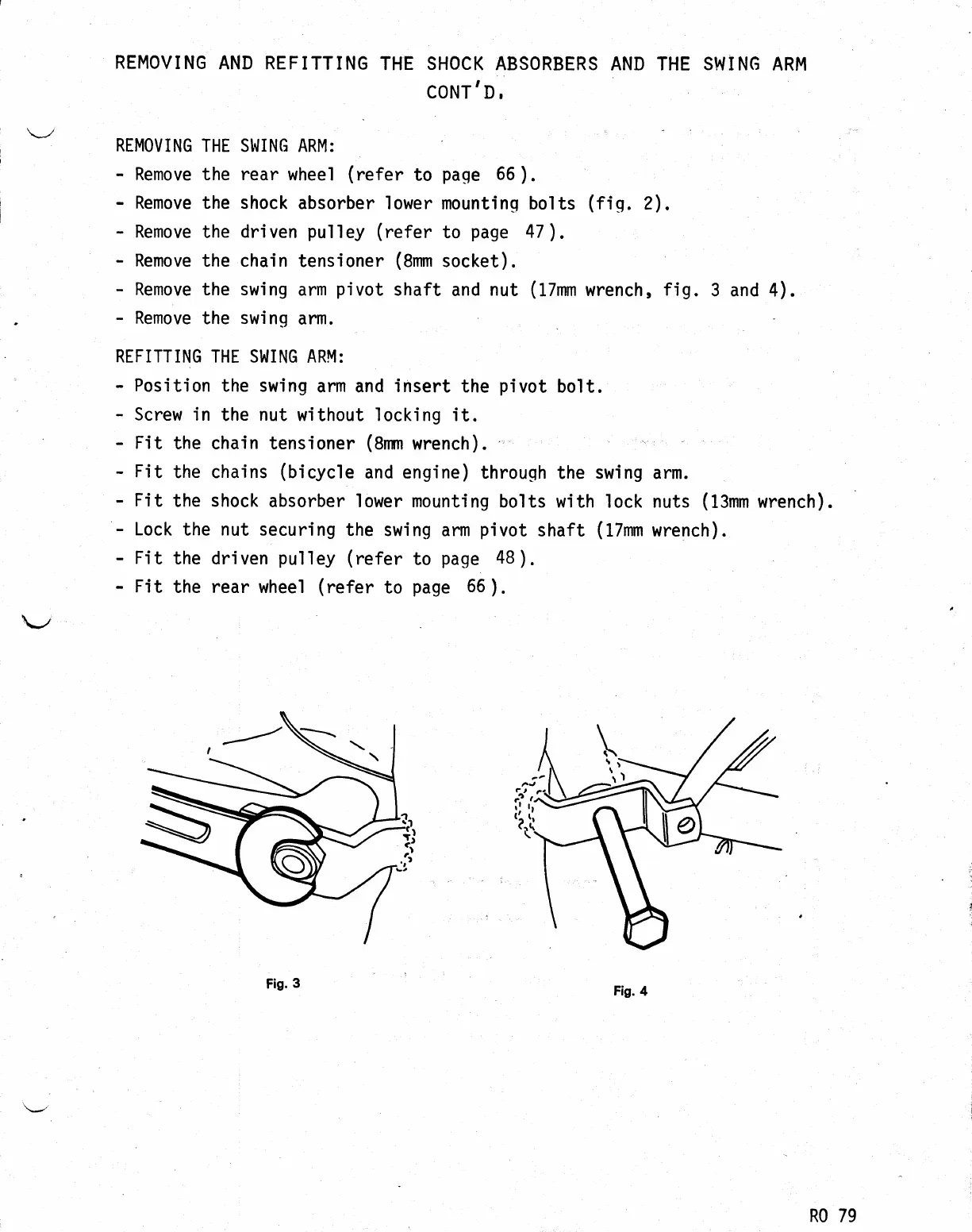

REMOVING
AND REFITTING
THE SHOCK ABSORBERS
AND THE
SWING
ARM
CONT,
D
,
REMOV
I
NG
THE SI.II NG ARM :
Remove the rear wheel
(refer
to
page
66
).
-
Remove
the
shock
absorber lower mounting bolts
(fig
.
2)o
Remove
the
driven
pulley
(refer
to
page
47
).
Remove
the chain
tensioner
(8mm
socket).
Remove
the swing
arm
pivot
shaft
and
nut
(tZmm
wrench,
fig.
3 and
4).
Remove
the swing
arYn.
REFITTING THE St,'lING
ARM:
Position
the swing
arm and
insert
the
pivot
bolt.
Screw in
the
nut
without locking
it.
Fit
the chain
tensioner
(Bnrm
wrench).
"1
Fit
the chains
(bicycle
and engine)
through the
swing
arm.
Fit
the
shock
absorber lower mounting
bolts with
lock nuts
(13mm
wrench).
Lock
the nut securing
the swing
arm
pivot
shaft
(t7mm
wrench).
Fit
the driven
pulley
(refer
to
page 48).
Fit
the rear wheel
(refer
to
page 66
).
rr
?\\
Fig.3
Fis.
4
R0 79
