Menu 11 – Side stand
A) input Stand used as N/C contact (engine start enabled when input is open)
B) input Stand used as N/O contact (engine start enabled when input switched to
ground)
Menu 12 – Parking light
A) deactive
B) active
C) 1h active
D) 3h active
E) 6h active
9.2 Starting setup
To start setup, press the horn push button 3 times briefly right after switching on the ignition. If the
horn sounds, please press the button faster.
9.3 Navigation in setup
LEDs on input side represent the menus 1 to 12. All LEDs on output side display the options A to J
of the selected menu. The LED flashing sequence displays the currently active menu item or
selectable option, respectively. Press the push button briefly to switch to next menu / option. Press

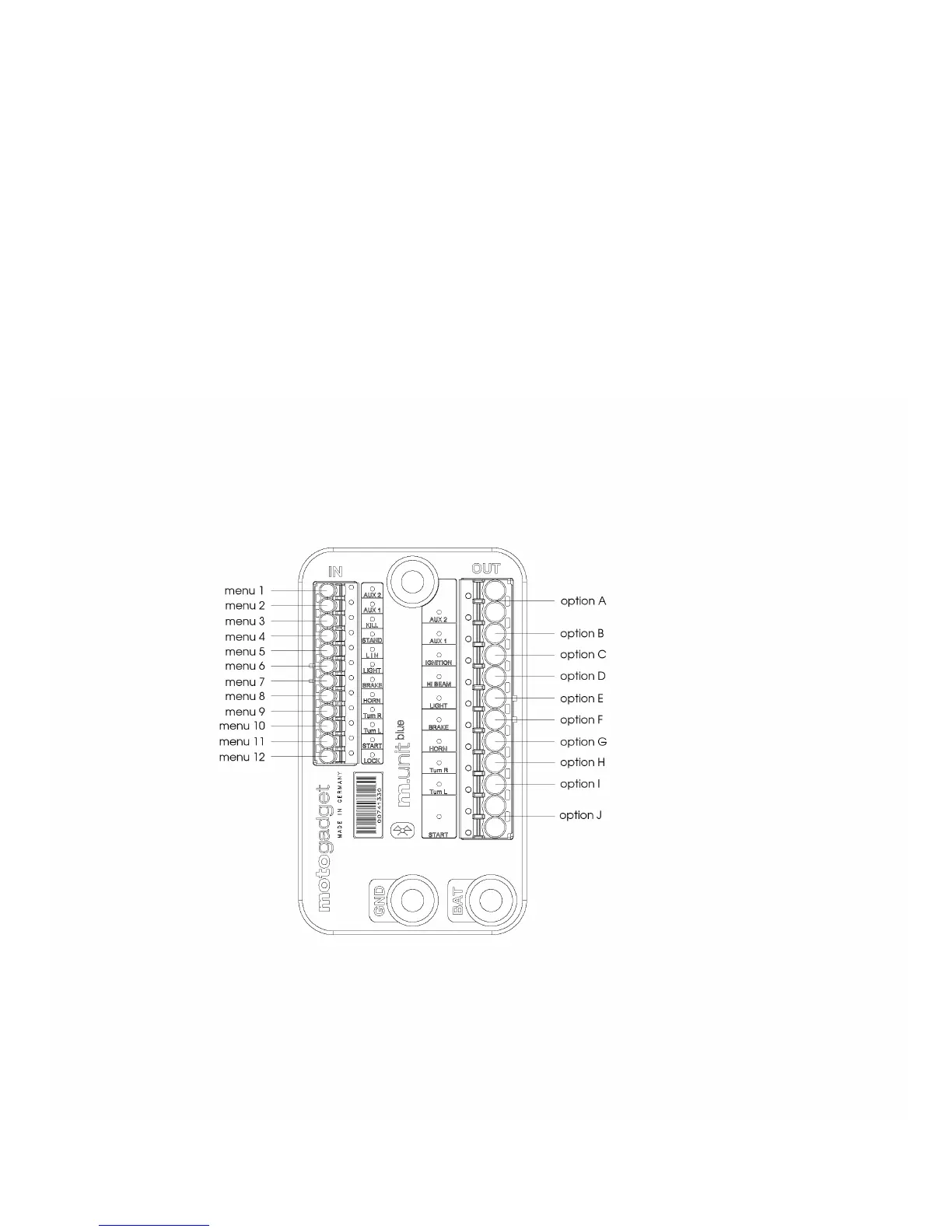

the push button for an extended time (2s) to toggle between menu and option. The drawing below
contains an overview of all menus and selectable options.
9.4 Exit from setup
Press and hold the push button until the device changes back to normal operation mode.
9.4.1 Calibration
When exiting from setup, m.unit calibrates to be able to detect defective illuminants while
operating. To do so, the outputs TurnR, TurnL, Light, Highbeam, Brake and AUX1 are switched on
one after the other to measure the individual currents applied on each output.
In case of a defective illuminant, a message will be transmitted to the m.ride app and, if possible,
the change to a different illuminant will be executed (low beam / high beam or rear light / brake
To Next Page
