motogadget m.unit blue User Manual

3
• THE DEVICE WILL BECOME DAMAGED BEYOND REPAIR IF A BATTERY CABLE IS
DISCONNECTED WHILE THE RUNS (LOOSE OR WORN CONTACT ETC.). PLEASE
MAKE SURE THAT THE VEHICLE’S BATTERY IS CONNECTED CORRECTLY AND THAT
THE CONNECTOR CABLES ARE FIXED TIGHTLY.
4 Duty Of Registration
The m.unit blue does not have to be registered. The user has the responsibility that chosen
settings for vehicles rear and brake light are conform to the country laws. The user also has to
ensure compliance with local regulation in respect to connection and usage.
5 Technical Data And Functions
5.1 General Data
length / width / depth 90 / 53 / 30 mm
weight 110 g
threaded fastening bores 2 x M5, bore spacing 74 mm
standby current approx. 450 µA
operating voltage 6 – 18V , suitable for 12V electrical systems
operating temperature -20°... + 80°C
input circuits 12
output circuits 10 (START and AUX2 with 2 wire terminals each)
display 23 internal LED

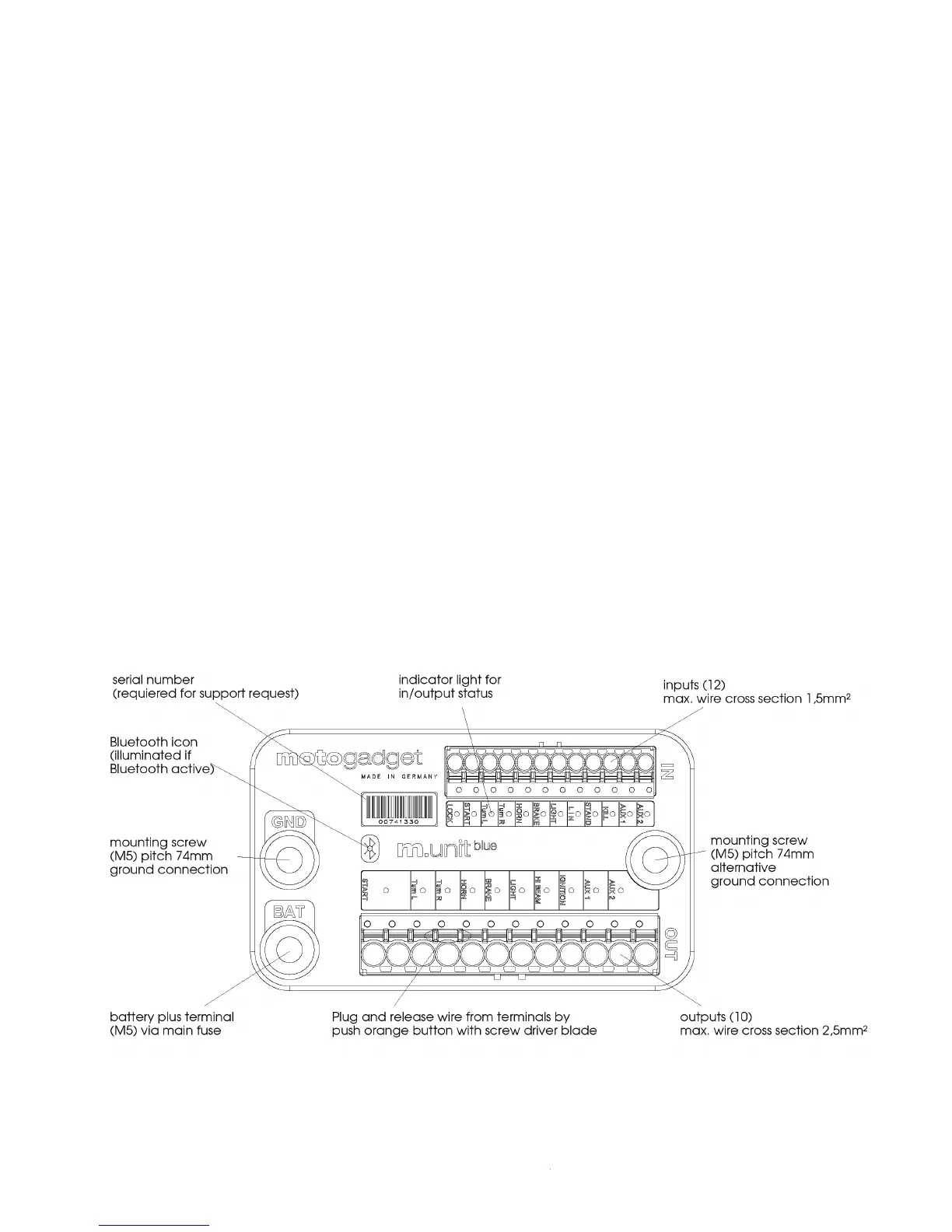

5.2. Overview

motogadget m.unit blue Specifications

General

Brand	motogadget
Model	m.unit blue
Category	Control Unit
Language	English
