MOTORGUIDE WIRELESS
8M4000137 For Questions, Contact Consumer Affairs at #1-920-929-5040 16
© 2005, MotorGuide www.motorguide.com
F

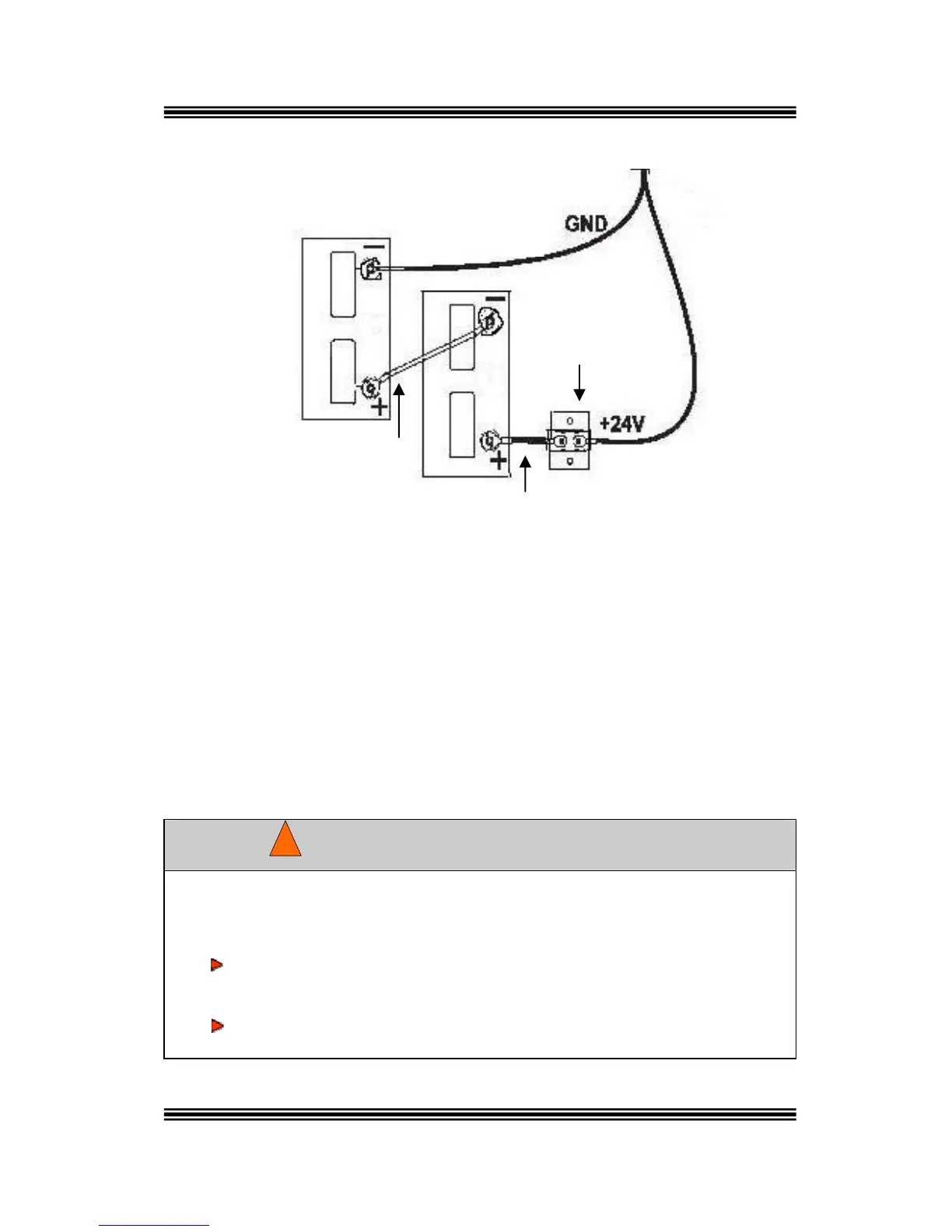

A) Battery A E) Red battery leads (+)
B) Battery B F) 50 amp circuit breaker and a power
C) To trolling motor connections switch
D) Black battery leads (-) G) Jumper wires
Connect the black battery lead from the power cable to the negative (-) post on
battery A and the red lead from the power cable o the positive (+) post on
battery B. Connect a jumper wire between the negative (-) post of battery B
and the positive (+) post of battery A. Install a 50 amp circuit breaker in line
with the positive lead to battery B as shown above. (See the “Assessories”
section in this manual for the circuit breaker and power switch part number.)
Observe installation guidelines when connecting the motor to the
batteries. When in doubt, consult a professional at your nearest
dealer.
Always connect to the battery through a power plug which can
be easily disconnected or through an easily accessible power
switch. Never “hardwire” the motor directly to the batteries.
Always use the recommended circuit breaker to protect the
wires.
!
WARNING
