Motorola A780 Service Manual

6809488A90 September 20, 2004 31
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Camera Assembly
1. Remove the battery cover, battery, SIM card, stylus, rear housing, and
transceiver board assembly as described in the procedures.
2. Use the disassembly tool to carefully pry the camera flex connector from its
mating connector on the transceiver board (see Figure 15).
3. To replace, insert the camera flex connector squarely into its mating connector
on the transceiver board and press firmly until it snaps into place.
4. Replace the transceiver board, rear housing, stylus, SIM card, battery, and
battery cover as described in the procedures.

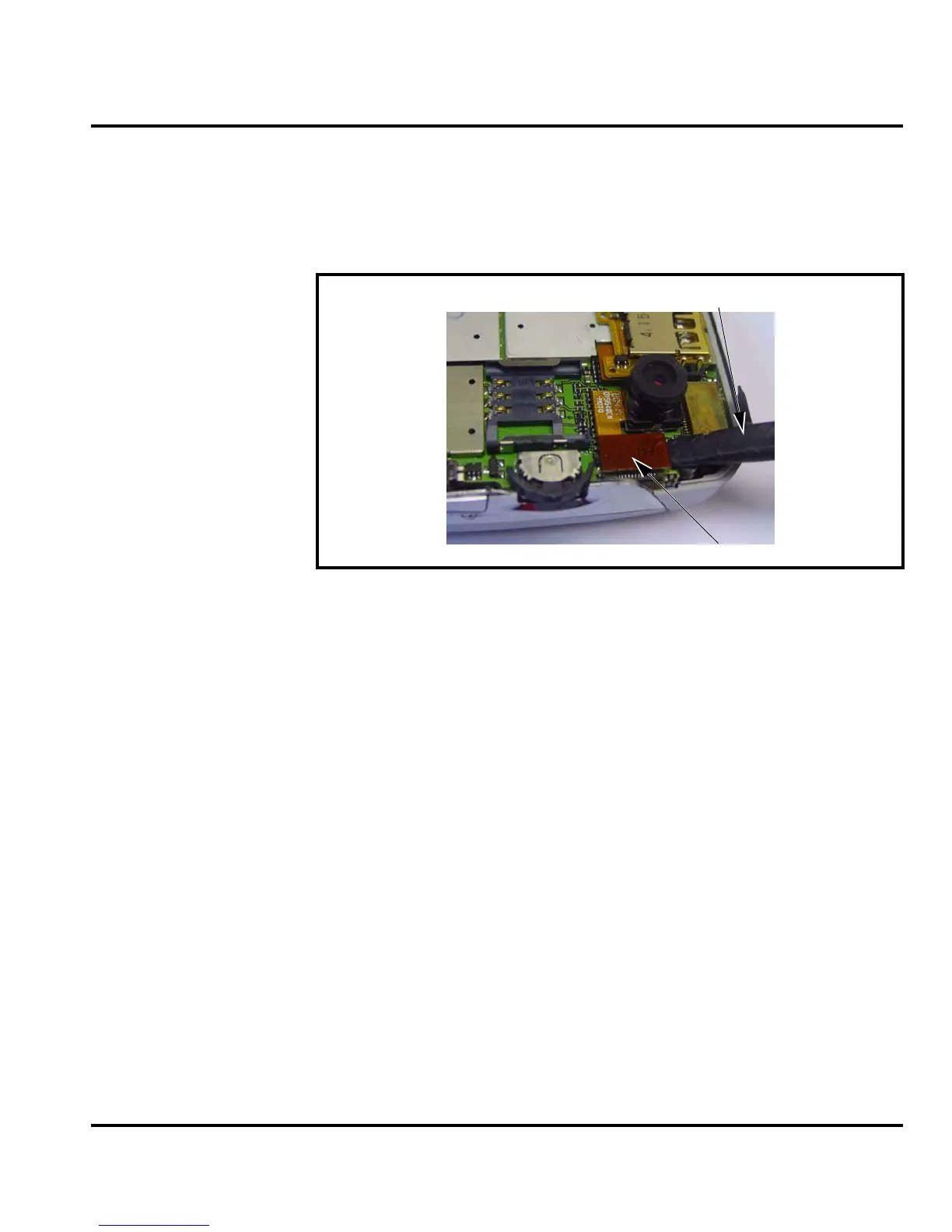

Figure 15. Removing the Camera Assembly
C
amera
Fl
ex
C
onnec
t
or
Di
sassem
bl
y
T
oo
l
