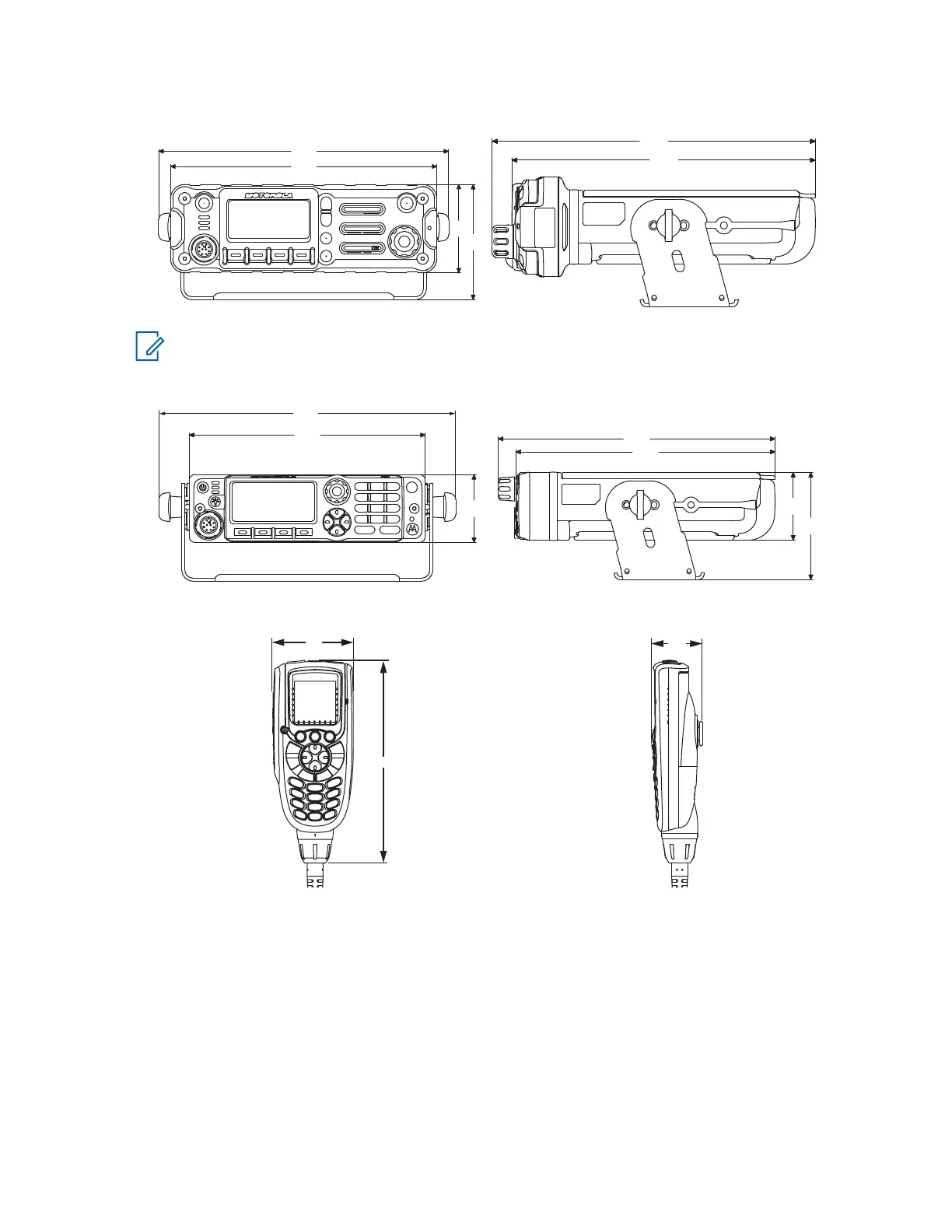

Motorola ASTRO Series - Figure 3: Front and Side View of O2 Control Head with Dash Mount Transceiver and Trunnion; Figure 4: Front and Side View of O7 Control Head with Dash Mount Transceiver and Trunnion; Figure 5: Front and Side View of O3 Control Head with Coiled Cable

Figure 3: Front and Side View of O2 Control Head with Dash Mount Transceiver and Trunnion
224
206
69
89
222
209
NOTICE: The rear accessory connector adds 0.75 in. to the overall length. The remote mount
length is 194 mm.
Figure 4: Front and Side View of O7 Control Head with Dash Mount Transceiver and Trunnion
178
51
224
207
194
51
80
Figure 5: Front and Side View of O3 Control Head with Coiled Cable
61
153
38
