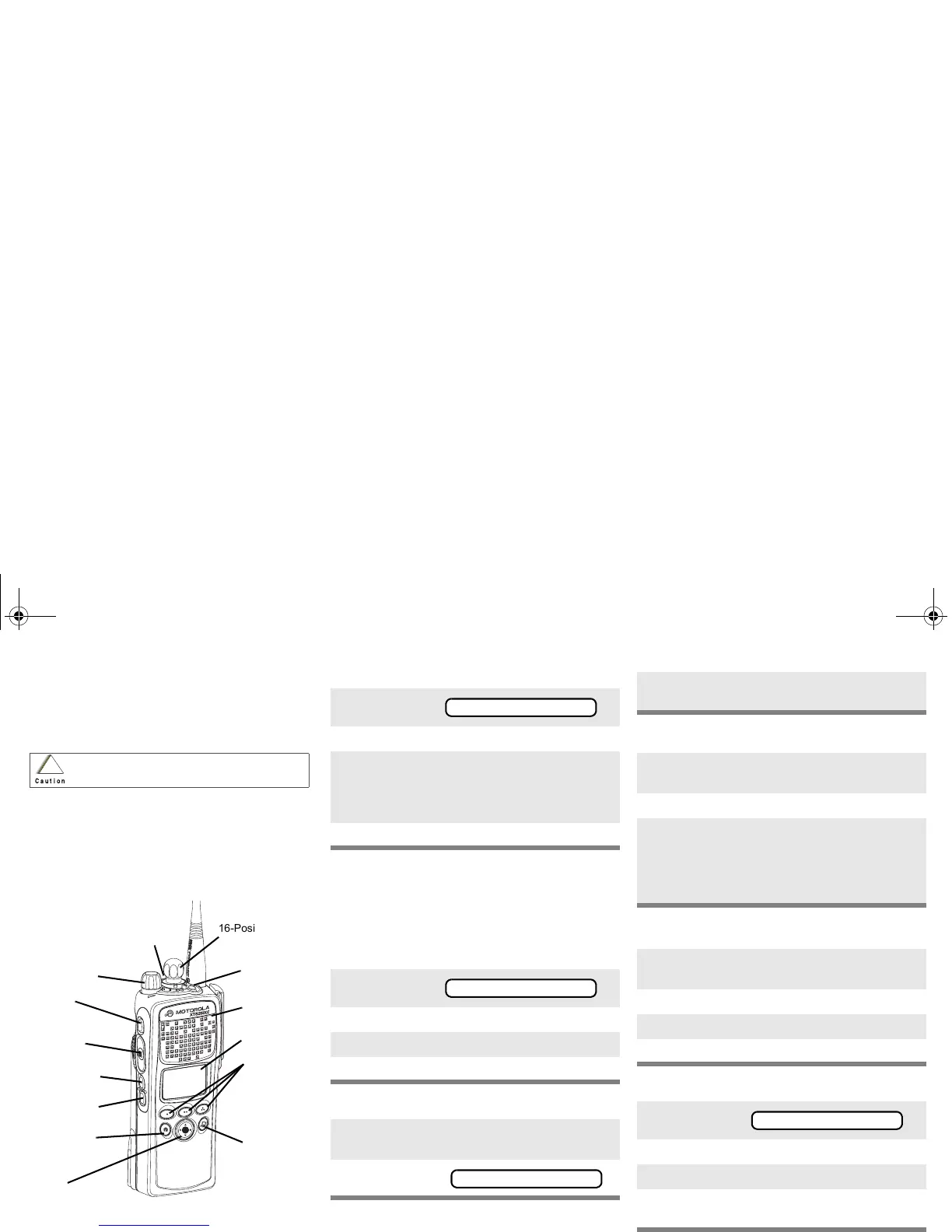

Motorola ASTRO XTS 2500 User Manual

ASTRO
®
XTS™ 2500 / XTS™ 2500I
Digital Portable Radio, Model II
Quick Reference Card
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to satisfy
FCC RF energy exposure requirements. Before using this
product, read the RF energy awareness information and
operating instructions in the Product Safety and RF
Exposure booklet enclosed with your radio (Motorola
Publication part number 6881095C98) to ensure
compliance with RF energy exposure limits.
Write your radio’s programmed features on the
dotted lines.
Select a Zone Using the Menu
Select a Channel
Method 1: Using the Select Knob
After selecting the desired zone, turn the 16-
position Select Knob to the desired channel.
Method 2: Using the Menu
Send an Emergency Alarm
Send Silent Emergency Alarm
Answer a Phone Call
Send a Phone Call
Before using this product, read the operating instructions
for safe usage contained in the Product Safety and RF
Exposure booklet enclosed with your radio.
!
Caution
16-Position
Select Knob
Speaker/Mic
Top Button
_ _ _ _ _ _ _
3-Position
Rotary Switch
_ _ _ _ _ _
Display
Home Button
Menu Select
Buttons
Top Side
Button
_ _ _ _ _ _ _
On/Off/
Volume Knob
Side Button 1
_ _ _ _ _ _ _
Side Button 2
_ _ _ _ _ _ _
PTT Button
4-Way
Navigation
Button
App Button
(TMS Button)
1Press U until
2Press D, E, or F directly below ZONE.
3Press U until the zone you desire is shown
OR
Use the keypad directly to dial the zone
number.
4Press h to confirm, or press PTT to transmit.
1Press U until
2Press D, E, or F directly below CHAN.
3Press U until channel you desire is shown.
4Press h to confirm, or press PTT to transmit.
1 Radio on and press Emergency button. You
see red LED; you hear short, medium-pitched
2 Display shows .
ZONE
CHAN
EMERGENCY
3 When acknowledgment is received, you hear
four tones;alarm ends;radio exits emergency.
1 Radio on and press Emergency button. You
see no LED; you hear no tone.
2Press PTT.
3 Alarm continues until you exit by:
• Press and hold Emergency button for one
second
OR
• Press PTT again.
1 Phone-like ringing, LED blinks GREEN,
PHONE CALL and m are displayed
2Press Call Response button.
3Press PTT button to talk; release to listen
4Press h to hang up.
1Press U until
2Press D, E, or F directly below PHON .
3Press U or V to scroll to phone number.
4Press PTT (or Quick Access button, if
programmed) to talk, release to listen.
PHON
