Chapter 3
TROUBLESHOOTING CHARTS

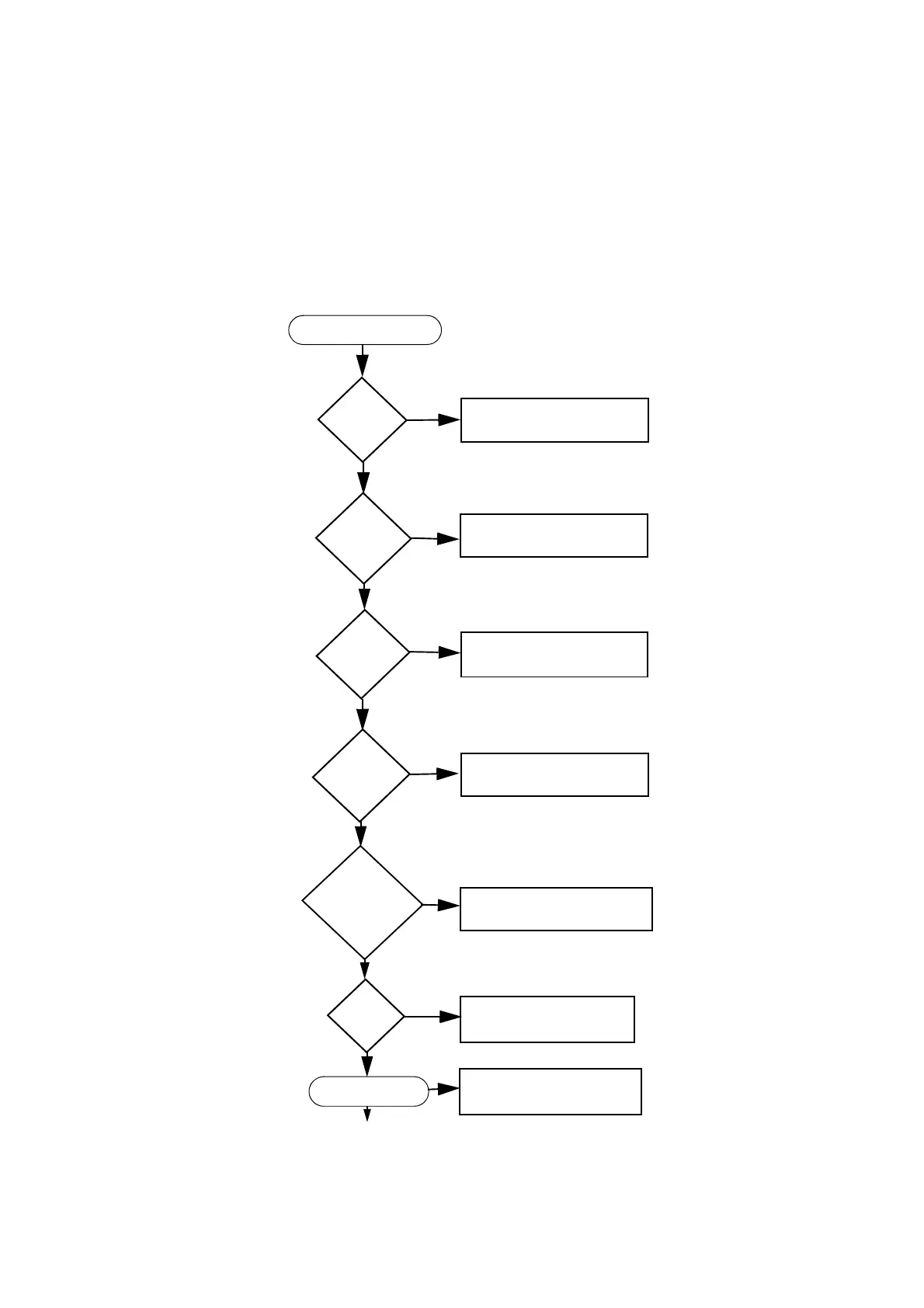

1.0 Controlhead CM140/CM340 Troubleshooting Chart
1.1 Control Head Failure
Back light
OK ?
Check 9.3V on
R808, R809
No
Control Head Check
Power-up
Alert Tone
OK ?
Check Speaker
Connection
No
Power-up
Red LED
Flash?
Check
D801, Q806, U801
No
Channel
Display
OK?
Check
DS801, U801, U802
No
Up/Down
P1 and P2
Alert Tone
Buttons OK?
Check R845, R846
R810, R811
No
EXT
PTT
OK ?
Check Q801, Q802
No
Communication Ok
Check Q803, Q812
Control Head is OK
YES
YES
YES
YES
YES
YES
No
