High-Definition All-Digital Dual Tuner DVR Set-top DCX3520e-M • User Guide
15
365-095-22821-x.1
Connecting a Standard-Definition TV (SDTV) and VCR/DVD
Recorder
1. Connect a stereo audio cable to the AUDIO OUT L and R connectors on the
DCX3520e-M Series set-top and the INPUT AUDIO L
and R connectors on the
VCR/DVD Recorder.
2. Connect a video cable to the VIDEO OUT connector on the DCX3520e-M Series set-
top and the INPUT VIDEO connector on the VCR/DVD Recorder.
3. Connect a stereo audio cable to the OUTPUT AUDIO L and R connectors on the
VCR/DVD Recorder and the INPUT AUDIO L and R connectors on the SDTV.
4. Connect a video cable to the OUTPUT VIDEO connector on the VCR/DVD Recorder
and the INPUT VIDEO connector on the SDTV.
Note: These video connection methods do not support HD video. If there is an HDTV,
see Connecting HDTV — Separate Video/Audio Connections.

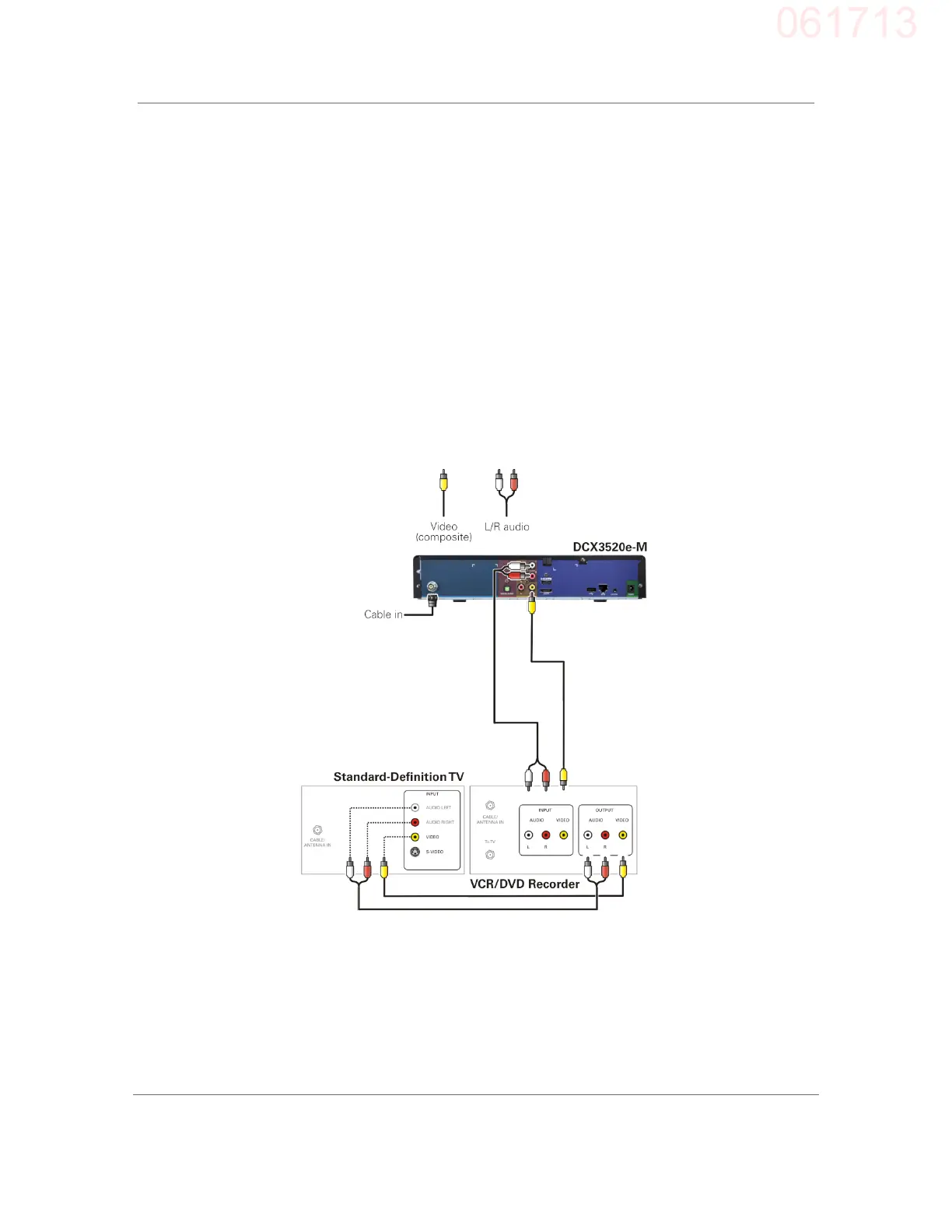

Figure 7: Connecting a Standard-Definition TV (SDTV) and VCR/DVD Recorder
061713
