5-2 Radio Alignment Procedures: Radio Tuning Setup
5.3 Radio Tuning Setup
A Windows 98/NT4/2000/ME/XP PC (personal computer) and Global Tuner are required to tune the
radio. To perform the tuning procedures, the radio must be connected to the PC, RIB (Radio Interface
Box) and Universal Test Set as shown in Figure 5-2 below. Refer to online help files for the tuning
procedures.

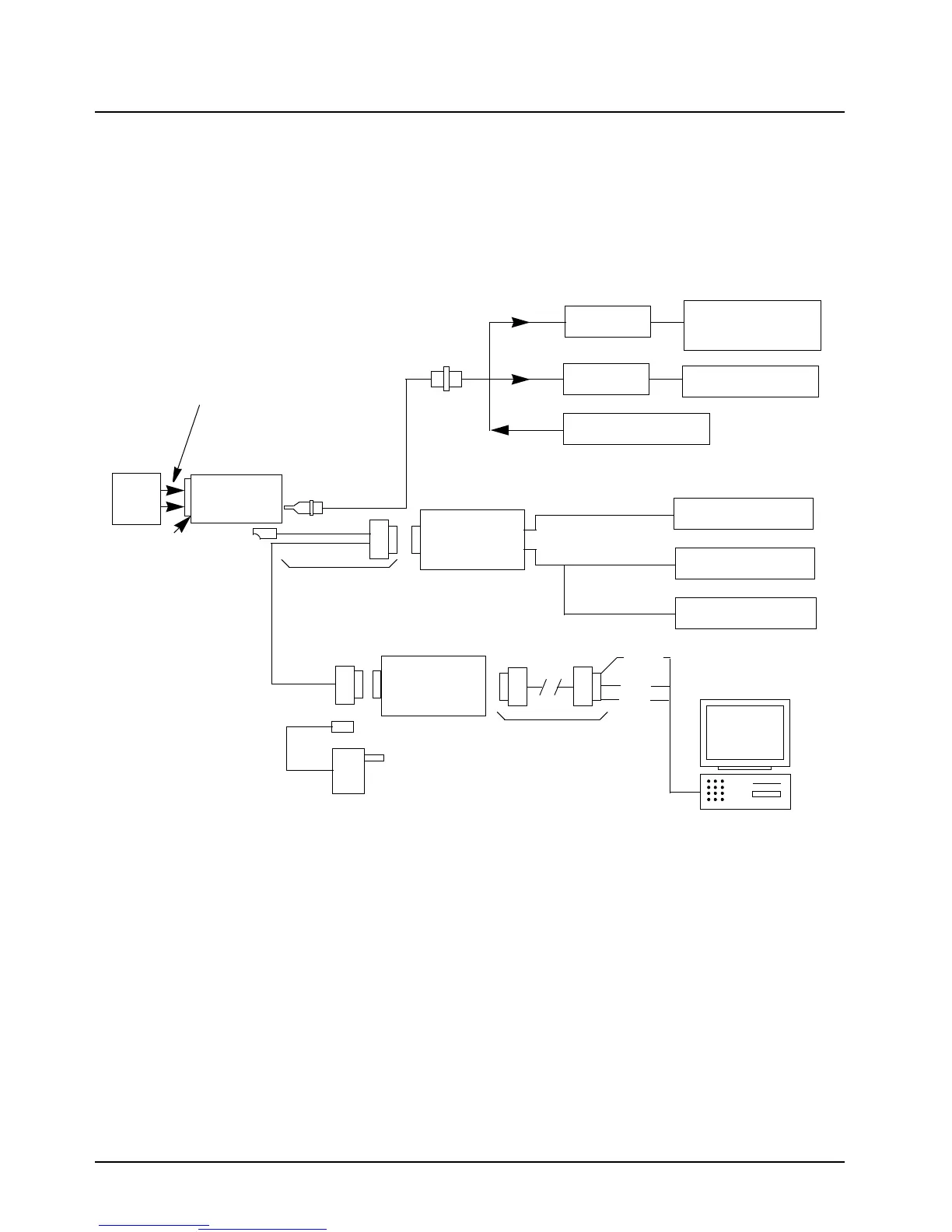

Figure 5-2. Radio Tuning Setup
Service Monitor or
Counter
Wattmeter
Audio Generator
Sinad Meter
AC Voltmeter
30 dB Pad
30 dB Pad
Battery
Eliminator
Power
Supply
Audio In
Tx
Rx
Receive
Transmit
RF Generator
BNC
RF Adaptor
5886564Z01
RIB
RLN4008
RIB Power Supply
RLN4460
Test Box
Rx
Gnd
Data
Tx Data
Radio
Computer Interface
Cable
Program/
Test Cable
AAPMKN4004
RLN5410
Power Cable
