5.3 Remote Control Head Installation
5.3.1 Removing the Front Housing
1. Remove the Controlhead from the Transceiver by inserting the dismantling tool (Motorola part
number 6686119B01) in the recess between the Controlhead and the Transceiver.
2. Split the Controlhead into Front and Back housings by inserting the dismantling tool in the
recess between them.
3. Remove the flex from the Transceiver only.
5.3.2 To Assemble the Remote Back Housing
1. Remove the twists from the flex and connect the flex from the Controlhead to the Remote
Back PCB connector.
2. Align the speaker with the speaker support.
3. Press the Controlhead onto the Remote Back Housing until ALL the tabs snap into place.
5.3.3 To Assemble the Remote Front Housing:
1. Connect the flex from the Remote Front Housing to the top small connector in the Transceiver.
2. Press the Remote Front Housing onto the Transceiver chassis until the chassis tabs snap into
place.
NOTE
1. To minimise cosmetic damage disassemble from the bottom side, (label side).
2. The Controlhead Back Housing is not required for remote mounting.

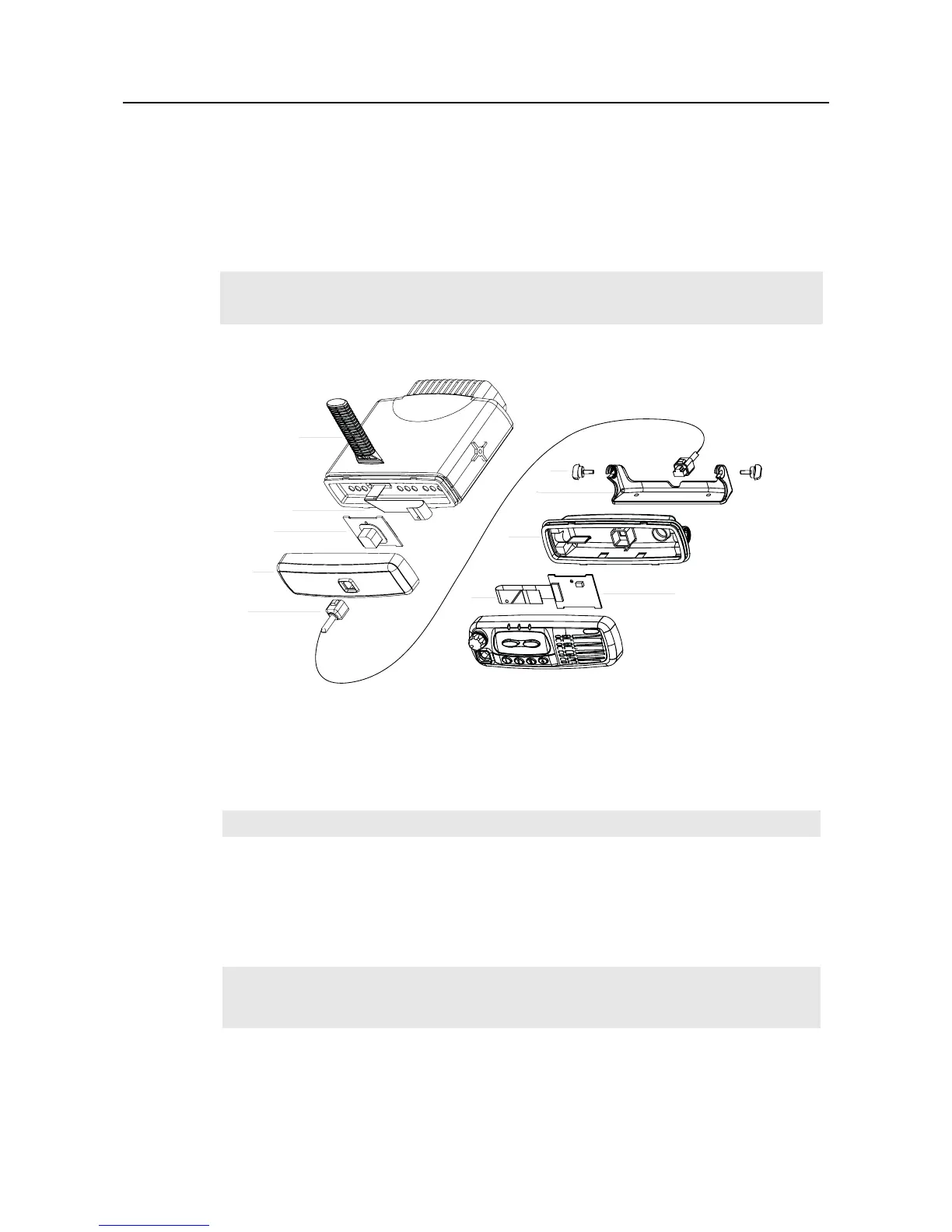

Figure 1-8 Remote Front and Back Housings
NOTE
For correct orientation of the flex, align the ‘O’ on the flex with the ‘O’ on the PCB.
NOTE
For correct orientation of the flex in the Transceiver, the “plastic” tab should be up,
contacts facing down. Align the ‘O’ on the flex with the ‘O’ on the Transceiver. The
flex must be pushed into the connector until it meets the stop.
1
2
3
4
5
6
7
5
4
8
ZWG0130204-O

Motorola GM Series Specifications

General

Channels	16
Waterproof	No
Frequency Range	VHF: 136-174 MHz
Signaling	DTMF, MDC1200
Dimensions	56 x 175 x 218 mm
