Motorola GP340 Series User Manual

3-26 MAINTENANCE

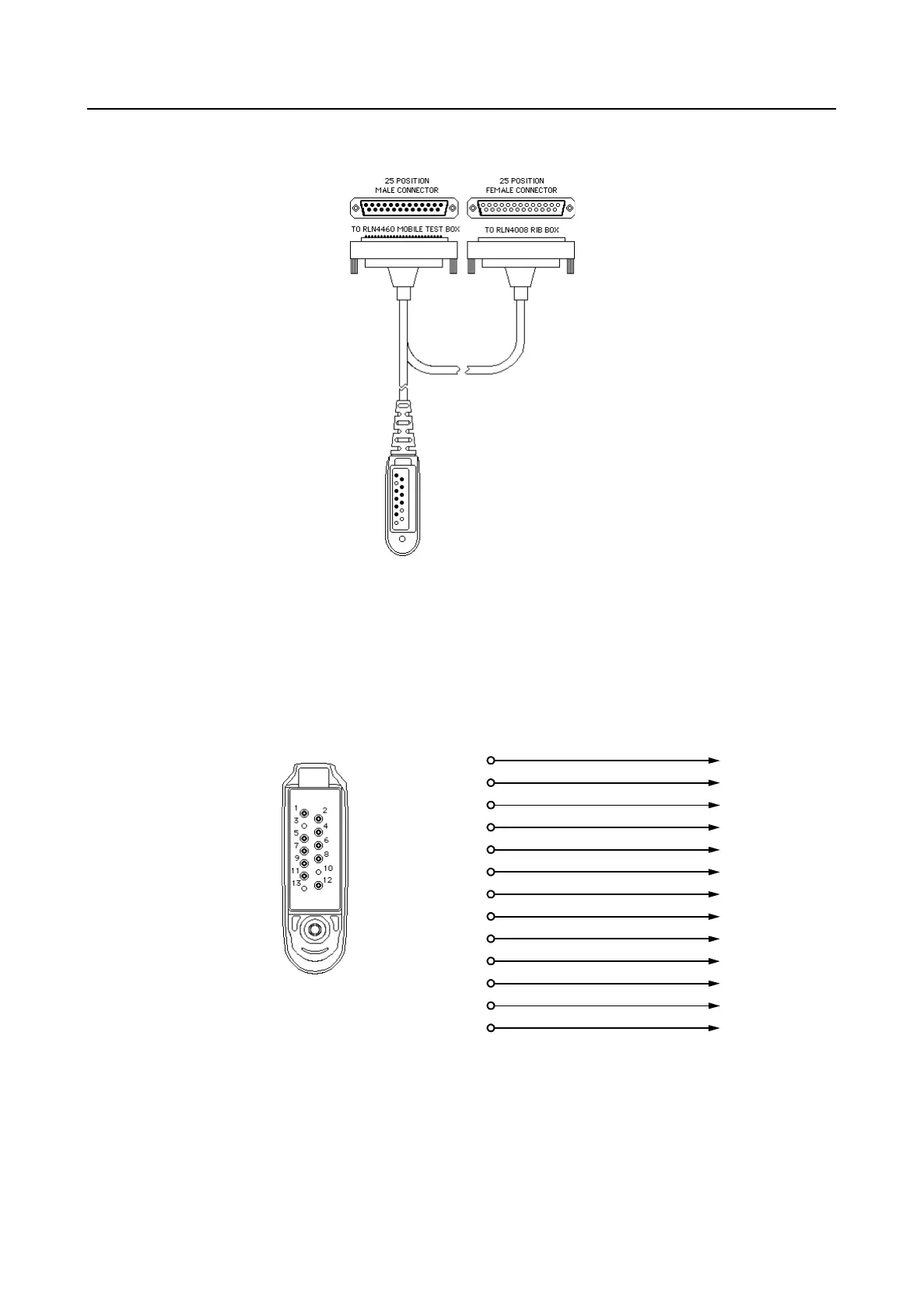

12.0 Programming/Test Cable
Figure 3-18 Programming Test/Cable
Figure 3-19 Pin Configuration of the Side Connector
Side
Connector
1 metre
Cable
1 metre
Cable
GP320/340/360/380 - RKN4074_
GP344/388 - JMKN4123_
External Speaker + Brown
1
1
External Speaker - Dark Blue
2
2
Option B + Red
3
3
External Mic Grey
4
4
Option Select 2 Light Blue
5
5
Option Select 1 Tan
6
6
Ground Black
7
7
Receive Data Yellow
8
8
Transmit Data Pink
9
9
RSSI Orange
10
10
Tx Audio / Rx Audio Violet
11
11
Boot Control Green
12
12
Not Used White
13
13
Internal
Connections
Pin Outs

Motorola GP340 Series Specifications

General

IP Rating	IP54
Frequency Range	VHF: 136-174 MHz
Channel Capacity	16 channels
Power Output	VHF: 5W; UHF: 4W
Dimensions	137 x 57.5 x 37.5 mm (without antenna)
MIL-STD	810 F
Power Supply	7.5 V (Nominal)
