Motorola GP360 Basic User's Guide

7
English
BASIC USER GUIDE

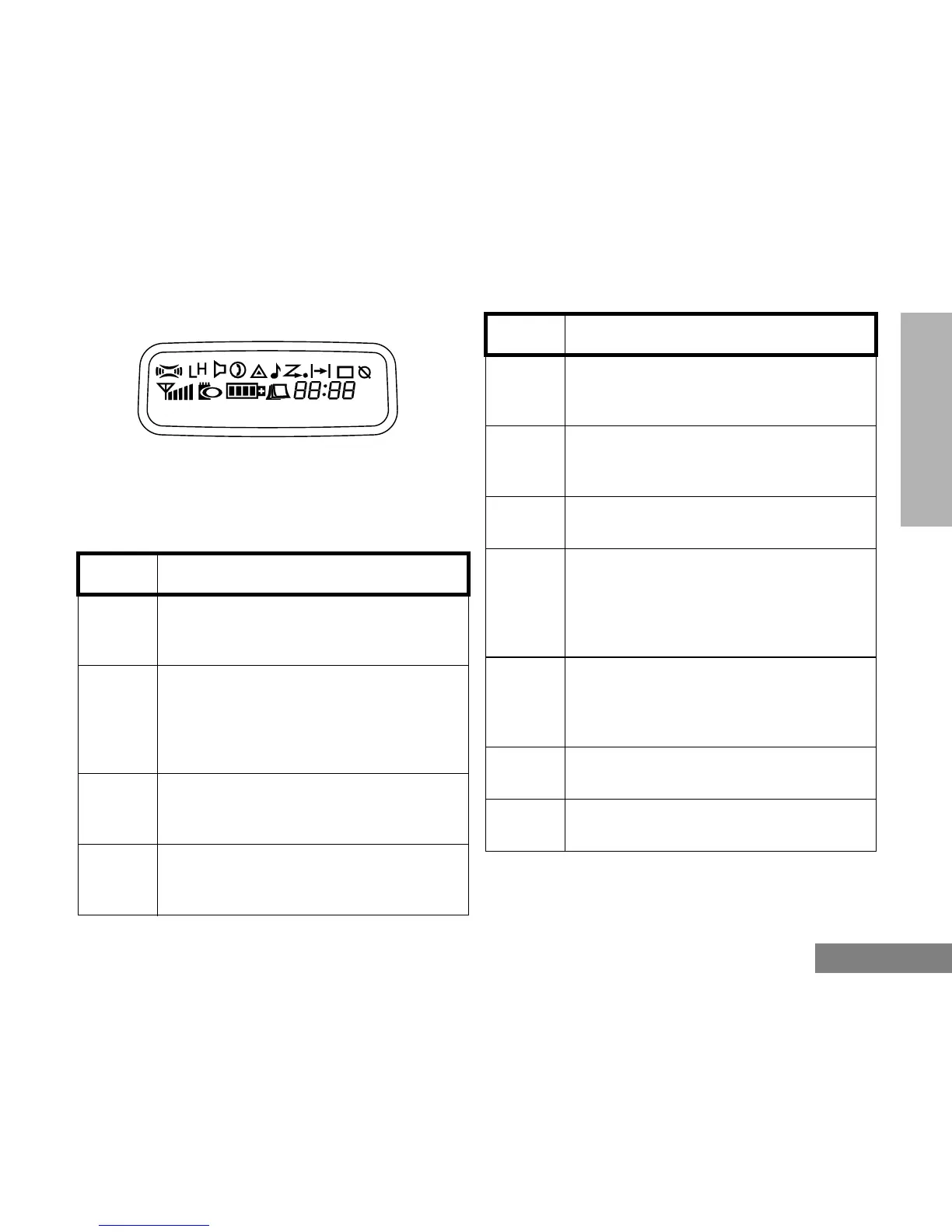

LCD Display and Icons
Displays channel, menu, and radio status
information. The top two screen rows show radio
status indicator symbols, explained in the table
below:
Symbol Name and Description
A
XPAND™ Indicator
Indicates that you have activated the
companding feature.
B
Power Level Indicator
L lights when your radio is configured to
transmit in Low Power. H lights when your
radio is configured to transmit in High
Power.
C
Monitor Indicator
On indicates carrier squelch.
Off indicates signalling squelch.
F
Voice Recorder Indicator
Indicates that there are stored messages or
memos in the voice recorder.
H
Scan Indicator
Indicates that you are scanning. The dot is
lit during priority scan mode.
L
Keypad Lock Indicator
On indicates that the menu keys are locked.
Off indicates unlocked.
N
Option Board Indicator
Indicates that an option board is activated.
P
Battery Level Indicator
Shows the remaining charge in your
battery, based on how many bars are
displayed.
Flashing, indicates flat battery.
Q
Missed Call Indicator
On indicates call in list.
Off indicates no calls in list.
Flashing, indicates new call in list.
J
Talkaround Indicator
Indicates talkaround enabled.
!
Timer
Shows the call time.
Symbol Name and Description

Motorola GP360 Specifications

Battery

battery life with standard high capacity NiMH battery low power	11 hours
battery life with standard high capacity NiMH battery high power	8 hours
battery life with ultra high capacity NiMH battery low power	14 hours
battery life with ultra high capacity NiMH battery high power	11 hours
battery life with NiCD battery low power	12 hours
battery life with NiCD battery high power	9 hours
battery life with Li-lon low power	11 hours
battery life with Li-lon high power	8 hours

Operating Environment

operating temperature	-20°C to +55°C
sealing	Withstands rain testing per MIL STD 810 C/D/E and IP54
shock and vibration	Protection via impact resistant housing exceeding MIL STD 810-C/D/E and TIA/EIA 603
dust and humidity	Protection via environment resistant housing exceeding MIL STD 810 C/D/E and TIA/EIA 603

Transmitter Specifications

frequencies full bandsplit VHF	136-174 MHz
frequencies full bandsplit UHF	403-470 MHz
channel spacing	12.5/20/25 kHz
frequency stability	±2.5 ppm
power VHF	1-5W
power UHF	1-4W

Receiver Specifications

frequencies full bandsplit VHF	136-174 MHz
frequencies full bandsplit UHF	403-470 MHz
channel spacing	12.5/20/25 kHz
frequency stability	±2.5 ppm
sensitivity (12 dB SINAD) EIA	0.25 µV typical
sensitivity (20 dB SINAD) EN	0.50 µV typical

Weight and Dimensions

dimensions with standard high capacity NiMH battery	137 x 57.5 x 37.5 mm
dimensions with ultra high capacity NiMH battery	137 x 57.5 x 40.0 mm
dimensions with NiCD battery	137 x 57.5 x 40.0 mm
dimensions with Li-lon battery	137 x 57.5 x 33.0 mm
weight with standard high capacity NiMH battery	428 gm
weight with ultra high capacity NiMH battery	508 gm
weight with NiCD battery	458 gm
weight with Li-lon battery	358 gm
