Motorola GP360 Basic User's Guide

3
English
BASIC USER GUIDE

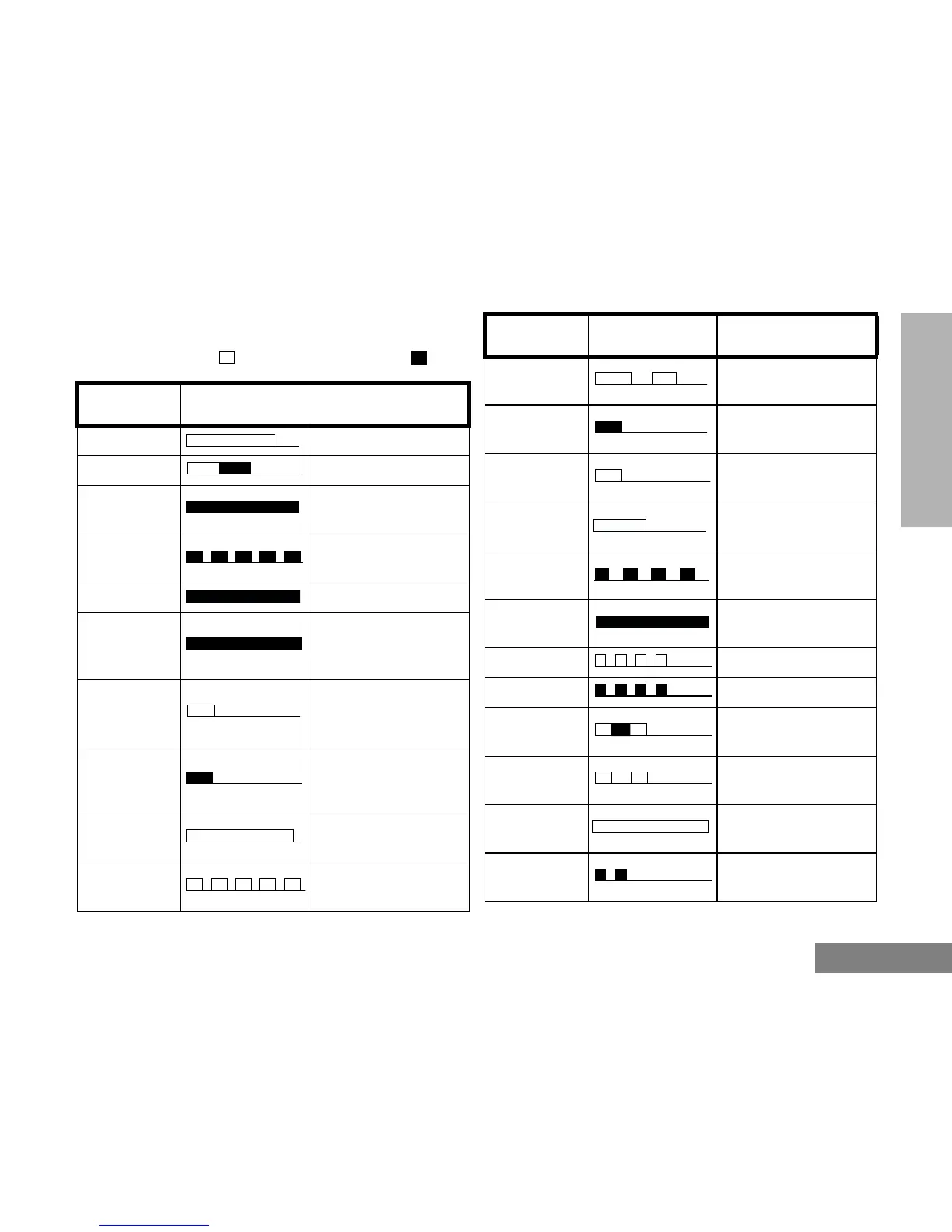

Audio Signal Tones
High pitched tone Low pitched tone
Tone Signal Description
Power up OK Radio self-test OK.
Power up Fail Radio self-test fail.
Button/
Keypad Error
Button/menu key
press not permitted.
Engaged
Channel busy or not
permitted to transmit.
Call Failed Call failed to connect.
Force Monitor
Radio must monitor
channel before trans-
mission permitted.
Button
Feature
Enable
Any option button
pressed to enable a
feature.
Button
Feature
Disable
Any option button
pressed to disable a
feature.
Group Call
Radio receives a
Group Call.
Individual Call
Radio receives an
Individual Call.
Call Reminder
Reminder of
unanswered call.
TOT Pre-Alert
Warns of expiry of
time out timer.
Monitor Alert
Alerts to change of
squelch.
Voice Storage
Voice Storage-
Recording.
Voice Storage
Voice Storage-
Warning.
Voice Storage
Voice Storage-
Full.
Scan Start Radio starts scanning.
Scan Stop Radio stops scanning.
Priority Call
Decode
Radio detects a
priority call.
Priority
Channel
Radio landed on the
priority channel.
Lone Worker
Reminds lone worker
to respond.
Low
Battery
Battery below receive
threshold level.
Tone Signal Description

Motorola GP360 Specifications

Battery

battery life with standard high capacity NiMH battery low power	11 hours
battery life with standard high capacity NiMH battery high power	8 hours
battery life with ultra high capacity NiMH battery low power	14 hours
battery life with ultra high capacity NiMH battery high power	11 hours
battery life with NiCD battery low power	12 hours
battery life with NiCD battery high power	9 hours
battery life with Li-lon low power	11 hours
battery life with Li-lon high power	8 hours

Operating Environment

operating temperature	-20°C to +55°C
sealing	Withstands rain testing per MIL STD 810 C/D/E and IP54
shock and vibration	Protection via impact resistant housing exceeding MIL STD 810-C/D/E and TIA/EIA 603
dust and humidity	Protection via environment resistant housing exceeding MIL STD 810 C/D/E and TIA/EIA 603

Transmitter Specifications

frequencies full bandsplit VHF	136-174 MHz
frequencies full bandsplit UHF	403-470 MHz
channel spacing	12.5/20/25 kHz
frequency stability	±2.5 ppm
power VHF	1-5W
power UHF	1-4W

Receiver Specifications

frequencies full bandsplit VHF	136-174 MHz
frequencies full bandsplit UHF	403-470 MHz
channel spacing	12.5/20/25 kHz
frequency stability	±2.5 ppm
sensitivity (12 dB SINAD) EIA	0.25 µV typical
sensitivity (20 dB SINAD) EN	0.50 µV typical

Weight and Dimensions

dimensions with standard high capacity NiMH battery	137 x 57.5 x 37.5 mm
dimensions with ultra high capacity NiMH battery	137 x 57.5 x 40.0 mm
dimensions with NiCD battery	137 x 57.5 x 40.0 mm
dimensions with Li-lon battery	137 x 57.5 x 33.0 mm
weight with standard high capacity NiMH battery	428 gm
weight with ultra high capacity NiMH battery	508 gm
weight with NiCD battery	458 gm
weight with Li-lon battery	358 gm
