3-4 MAINTENANCE
If a unit requires more complete testing or service than is customarily performed at the basic level,
send this unit to a Motorola Authorized Service Centre. (See Chapter 1 for a list of authorized
service centres.)
The following disassembly procedures should be performed only if necessary:
Chassis Assembly Disassembly (Paragraph 6.2)
Keypad, Display, and Keypad/Option Board Disassembly (Paragraph 6.3)
Speaker, Microphone, and Universal Connector Flex Disassembly (Paragraph 6.4)
PTT Disassembly (Paragraph 6.5)
Controller Board Disassembly -GP344/GP388 (Paragraph 6.6)
Control Top Disassembly (Paragraph 6.7)
6.0 Radio Disassembly — Detailed
6.1 Front Cover from Chassis Disassembly
1. Turn off the radio.
2. Remove the battery:
a. Pull down on the two battery-release buttons.
b. With the buttons pulled down, the top of the battery will fall from the radio.
c. Remove the battery from the radio.
3. Remove the antenna.

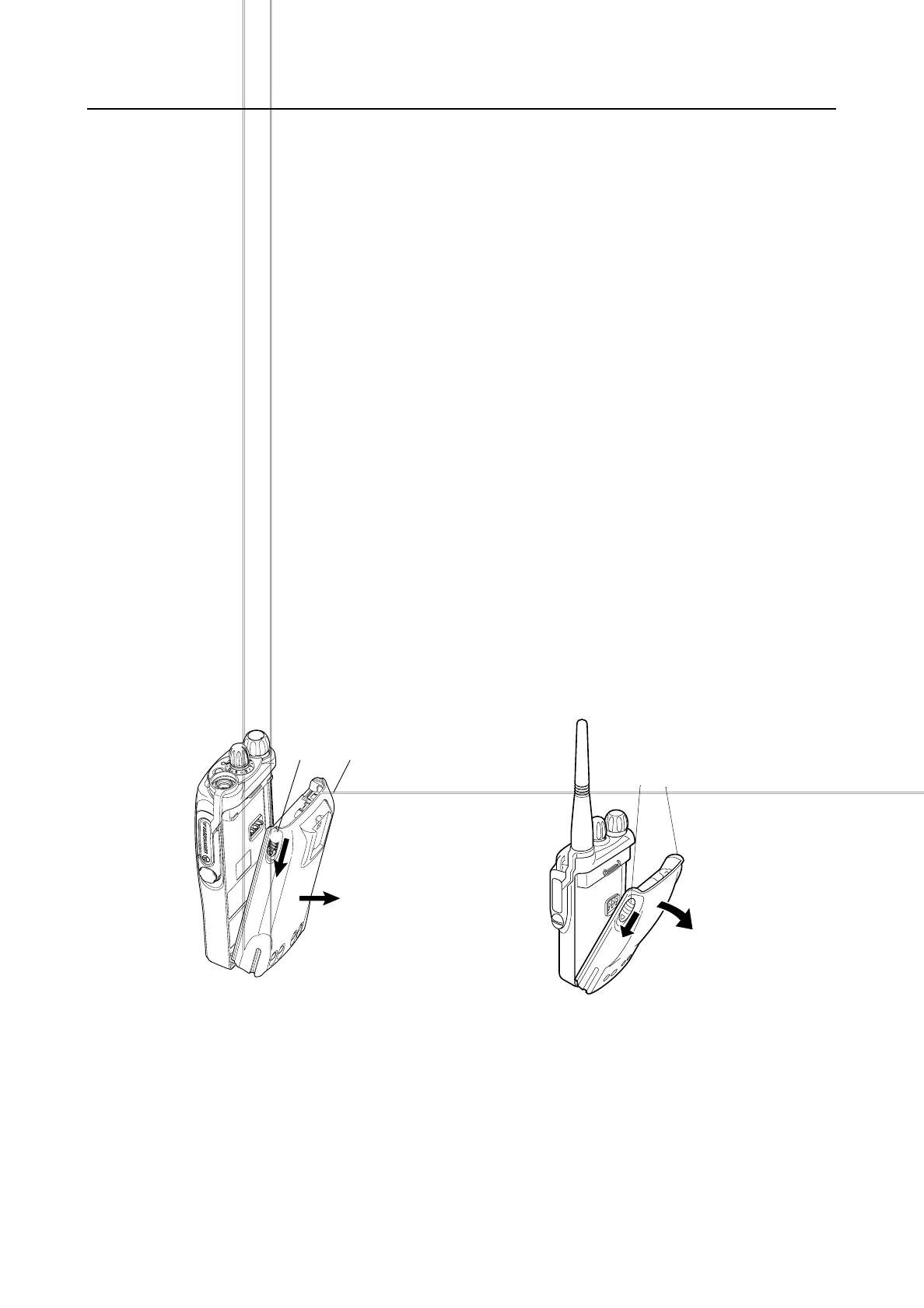

Figure 3-1 Battery Removal
Battery Release
Buttons
Battery Release
Buttons
GP320/340/360/380
GP344/388
