Disassembly L6
6. Carefully lift one side of the transceiver PC board out of the phone. Be careful
to avoid damage to the two flex cables and the coaxial cable.
7. Lift the transceiver PC board completely out of the phone.
8. To replace, carefully insert the side edge of the transceiver PC board into the
phone chassis.
9. Carefully re-attach the alert speaker wire connector, display flex connector,
the main flex connector, and the coaxial cable, to the transceiver PC board (see
Figure 15).
10. Reassemble the antenna, SIM, battery, and battery cover as described in the
procedures.
051259o

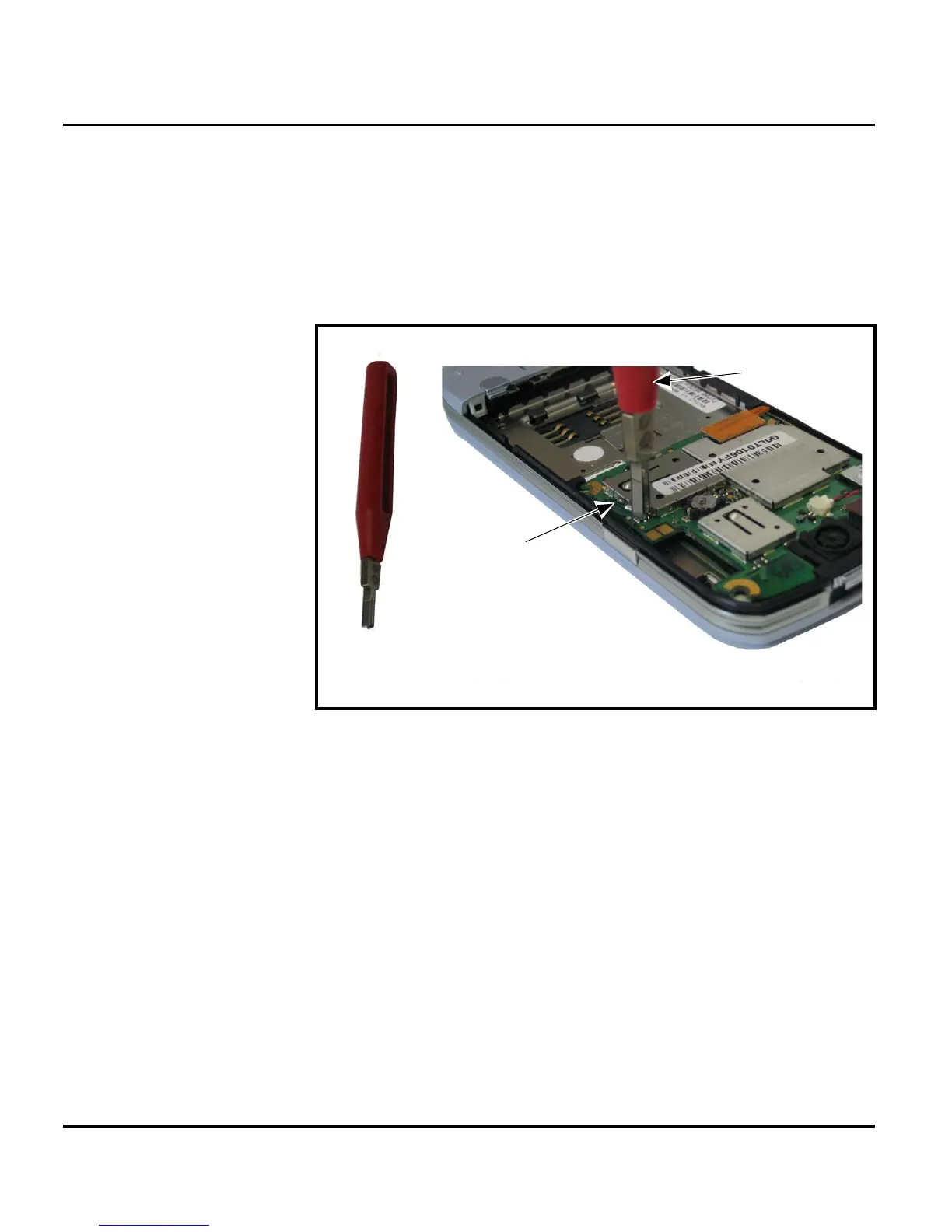

Figure 15. Coaxial Cable Connector Insertion
Coaxial cable
Coaxial Cable
Insertion Tool
Coaxial
cable
insertion
tool
