6809495A75-O October 14, 2005 29
Level 1 and 2 Service Manual Disassembly
4. Carefully lift the bottom end of the front housing over the phone.
5. Use the disassembly tool to separate the earpiece speaker from the front
housing (see Figure 19).
6. Remove the front housing.
7. To replace, attach the earpiece speaker to the front housing.
8. Rotate the front housing over the chassis to align the front housing to the
chassis.
9. Carefully and gently press the front housing into the chassis until all of the
housing catches are engaged.
10. Reassemble the transceiver PC board, antenna, SIM, battery and battery cover
as described in the procedures.
050807o

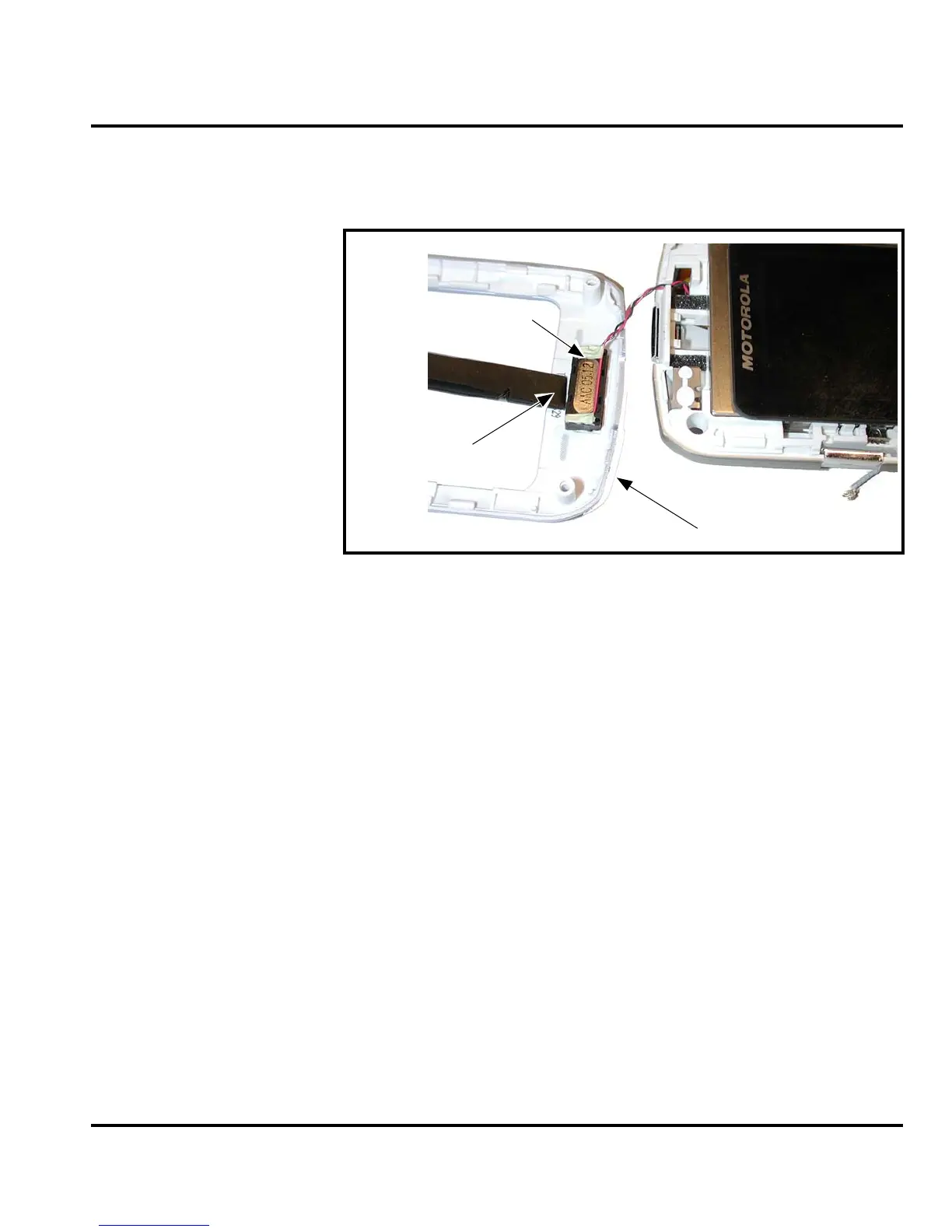

Figure 19. Removing the Earpiece Speaker from the Front Housing
Earpiece speaker
Disassembly tool
Front Housing
