68000222001-B November 10, 2008 41
Level 1 and 2 Service Manual Assembly
Note! Do not stress the flex or press on the display glass.
Installing the PCB into the Front Housing
1. Remove the liner from the Mic Mesh in the front housing.
2. Place and Press the Keyboard connector firmly into the PCB BTB connector.
3. Remove the liner from the display and also from the inside of the front housing.
(Do not touch glass with after removing the liners).
4. Clean the front housing lens and display with ionized air.
v541661

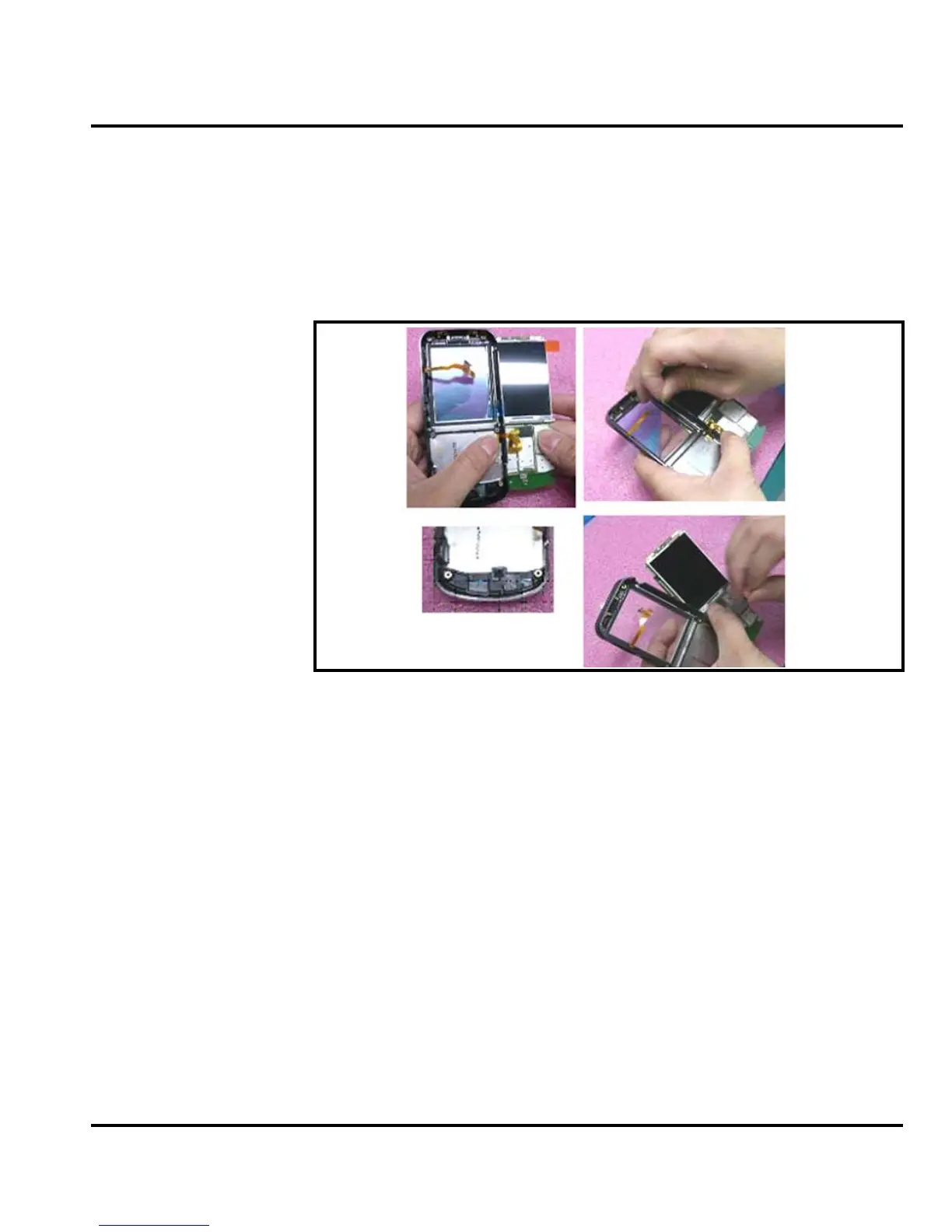

Figure 33. Attaching Flex Connectors to Main PCB

Table of Contents

Other manuals for Motorola Motozine ZN5

Preview: Getting Started Guide
Getting Started Guide16 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Motorola Motozine ZN5 and is the answer not in the manual?

Motorola Motozine ZN5 Specifications

General IconGeneral
Network TechnologyGSM
2G bandsGSM 850 / 900 / 1800 / 1900
GPRSClass 10
EDGEClass 10
Announced2008, June
StatusDiscontinued
SIMMini-SIM
TypeTFT, 256K colors
VideoYes
SecondaryNo
Alert typesVibration; Downloadable polyphonic, MP3 ringtones
LoudspeakerYes
3.5mm jackYes
WLANNo
Bluetooth2.0, A2DP
JavaYes, MIDP 2.0
BatteryRemovable Li-Ion 950 mAh battery
ColorsBlack
Resolution240 x 320 pixels
Memory Card slotmicroSD
Camera5 MP
USB2.0
RadioFM radio
Operating SystemProprietary
