INSTALLATION MTM800 Enhanced Mobile Terminal Installation Manual 41
Installing the Remote Mount Enhanced Control Head onto the Remote Mount
Trunnion
1. Slide the Remote Mount Enhanced Control Head onto the mounting trunnion until it snaps
into place.
2. Tighten the screws at both sides of the trunnion. After a few turns, tilt the control head for an
optimum view of the display. Then, complete the tightening of the screws.

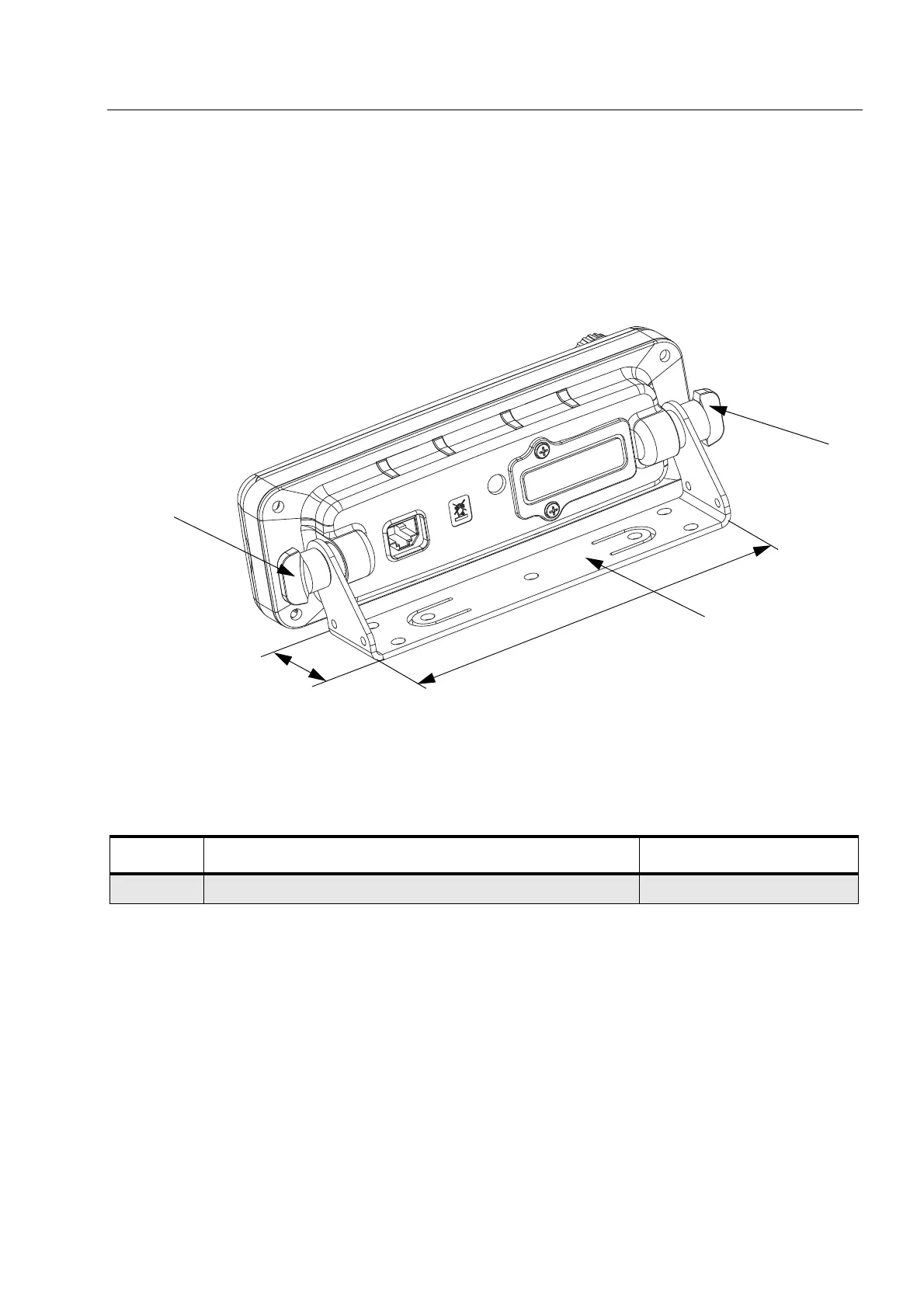

Figure 12 Remote Mount Enhanced Control Head Installation with Remote Mount Trunnion
Table 6 Remote Mount Enhanced Control Head Installation with Remote Mount Trunnion
- Mechanical Parts List for Installation
Item Description Part Number
1 & 2 Remote Mount Trunnion Kit PMLN4912
1
2
1
1
5
5
+
/
-
0
.
3
m
m
3
1
m
m
