62 MTM800 Enhanced Mobile Terminal Installation Manual INSTALLATION
Connectors and Pin Assignment of Data Expansion Head
Enhanced and Remote Head Enhanced

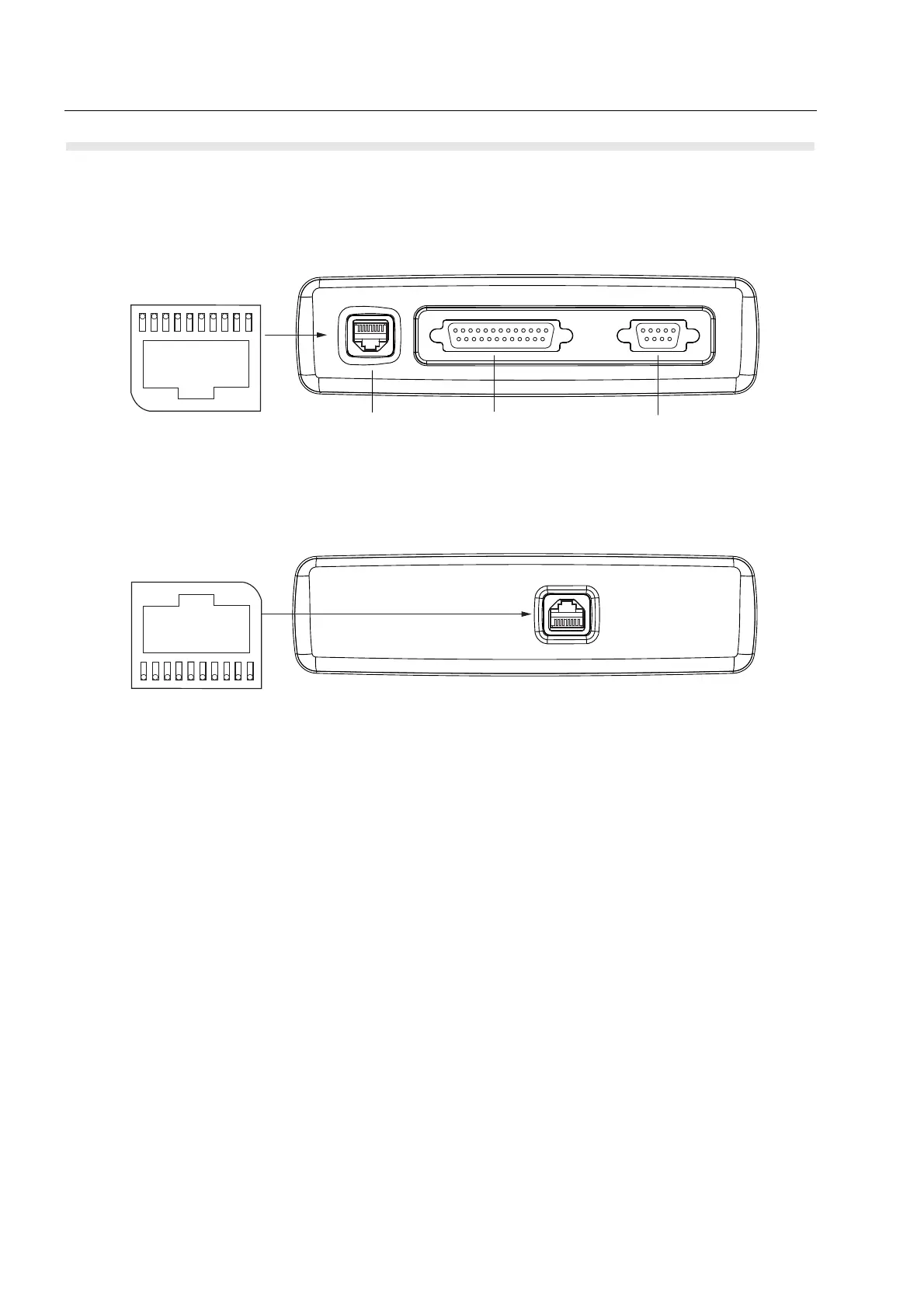

Figure 27 Data Expansion Head Enhanced - Front View and Connector Location
Figure 28 Remote Head Enhanced - Front View and Connector Location
10-Pin TELCO Connector
Data Expansion Head Enhanced:
a) The 10-pin TELCO connector can be used to connect a customized adapter, for example,
for connecting the helmet including microphone/earpiece (non-Motorola accessory) or an external
PTT. The customized adapter will be connected via the cable RKN4077.
b) The 10-pin TELCO connector can be used to connect a remote mount Enhanced Control Head.
DO NOT connect any other accessories (for example, microphone). This might result in
malfunctioning hardware failure.
Remote Head Enhanced:
The 10-pin TELCO connector of the Remote Head Enhanced can be used in the same way as
described on b).
Front View
CAUTION:
NOT NOT a Microphone Connector
25-Pin subD
Connector
9-Pin subD
Connector
1
13
14
25
1
5
69
10-Pin TELCO
Connector
J302
12345678910
Front View
CAUTION:
NOT NOT a Microphone Connector
J302
12345678910
10-Pin TELCO Connector
