Motorola P100 Series - Page 185

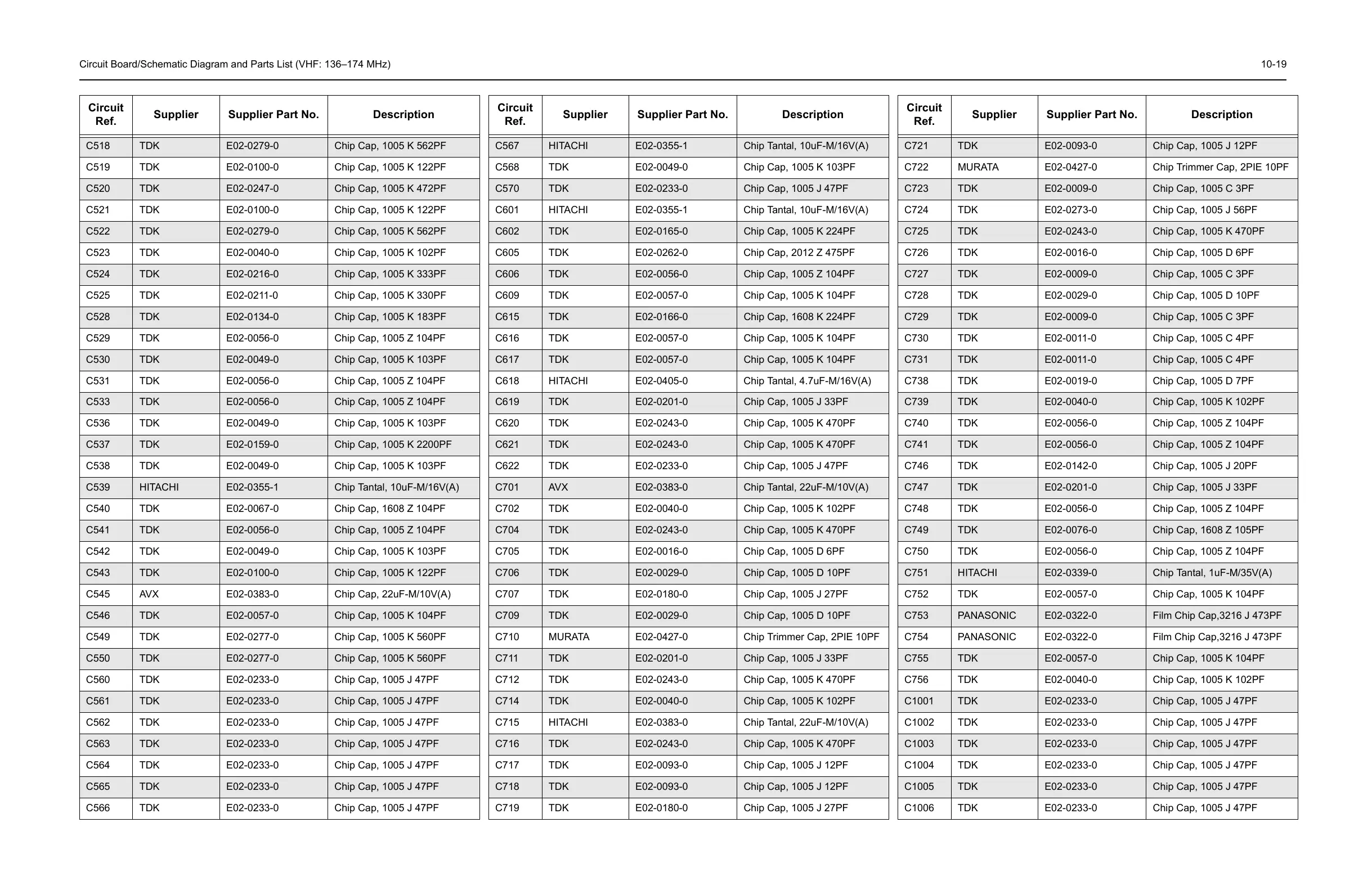

Circuit Board/Schematic Diagram and Parts List (VHF: 136–174 MHz) 10-19
C518 TDK E02-0279-0 Chip Cap, 1005 K 562PF
C519 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C520 TDK E02-0247-0 Chip Cap, 1005 K 472PF
C521 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C522 TDK E02-0279-0 Chip Cap, 1005 K 562PF
C523 TDK E02-0040-0 Chip Cap, 1005 K 102PF
C524 TDK E02-0216-0 Chip Cap, 1005 K 333PF
C525 TDK E02-0211-0 Chip Cap, 1005 K 330PF
C528 TDK E02-0134-0 Chip Cap, 1005 K 183PF
C529 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C530 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C531 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C533 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C536 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C537 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C538 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C539 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C540 TDK E02-0067-0 Chip Cap, 1608 Z 104PF
C541 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C542 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C543 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C545 AVX E02-0383-0 Chip Cap, 22uF-M/10V(A)
C546 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C549 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C550 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C560 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C561 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C562 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C563 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C564 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C565 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C566 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier Supplier Part No. Description
C567 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C568 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C570 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C601 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C602 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C605 TDK E02-0262-0 Chip Cap, 2012 Z 475PF
C606 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C609 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C615 TDK E02-0166-0 Chip Cap, 1608 K 224PF
C616 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C617 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C618 HITACHI E02-0405-0 Chip Tantal, 4.7uF-M/16V(A)
C619 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C620 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C621 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C622 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C701 AVX E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C702 TDK E02-0040-0 Chip Cap, 1005 K 102PF
C704 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C705 TDK E02-0016-0 Chip Cap, 1005 D 6PF
C706 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C707 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C709 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C710 MURATA E02-0427-0 Chip Trimmer Cap, 2PIE 10PF
C711 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C712 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C714 TDK E02-0040-0 Chip Cap, 1005 K 102PF
C715 HITACHI E02-0383-0 Chip Tantal, 22uF-M/10V(A)
C716 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C717 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C718 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C719 TDK E02-0180-0 Chip Cap, 1005 J 27PF
Circuit
Ref.
Supplier Supplier Part No. Description
C721 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C722 MURATA E02-0427-0 Chip Trimmer Cap, 2PIE 10PF
C723 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C724 TDK E02-0273-0 Chip Cap, 1005 J 56PF
C725 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C726 TDK E02-0016-0 Chip Cap, 1005 D 6PF
C727 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C728 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C729 TDK E02-0009-0 Chip Cap, 1005 C 3PF
C730 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C731 TDK E02-0011-0 Chip Cap, 1005 C 4PF
C738 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C739 TDK E02-0040-0 Chip Cap, 1005 K 102PF
C740 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C741 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C746 TDK E02-0142-0 Chip Cap, 1005 J 20PF
C747 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C748 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C749 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C750 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C751 HITACHI E02-0339-0 Chip Tantal, 1uF-M/35V(A)
C752 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C753 PANASONIC E02-0322-0 Film Chip Cap,3216 J 473PF
C754 PANASONIC E02-0322-0 Film Chip Cap,3216 J 473PF
C755 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C756 TDK E02-0040-0 Chip Cap, 1005 K 102PF
C1001 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1002 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1003 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1004 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1005 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1006 TDK E02-0233-0 Chip Cap, 1005 J 47PF
Circuit
Ref.
Supplier Supplier Part No. Description
