Motorola P100 Series Detailed Service Manual

Test Equipment, Service Aids, and Service Tools: Service Aids 2-3

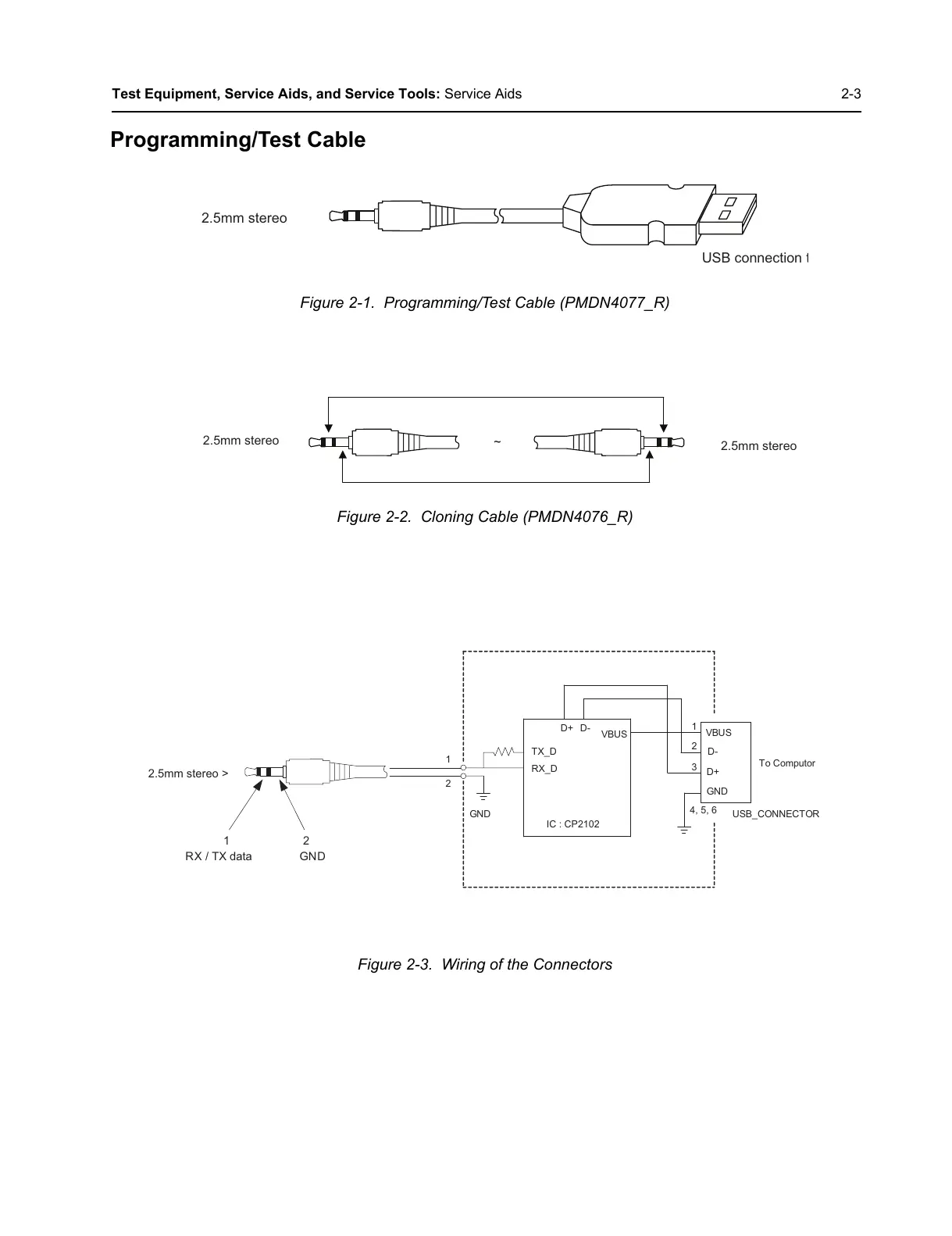

Programming/Test Cable
Figure 2-1. Programming/Test Cable (PMDN4077_R)
Figure 2-2. Cloning Cable (PMDN4076_R)
Figure 2-3. Wiring of the Connectors
2.5mm stereo
USB connection
t
~
2.5mm stereo
2.5mm stereo
2.5mm stereo >
12
TX_D
RX_D
4, 5, 6
GND
VBUS
D-
D+
D-D+
VBUS
1
2
3
USB_CONNECTOR
2
1
GND
IC : CP2102
To Computor
RX / TX data GND
