Motorola P100 Series Detailed Service Manual

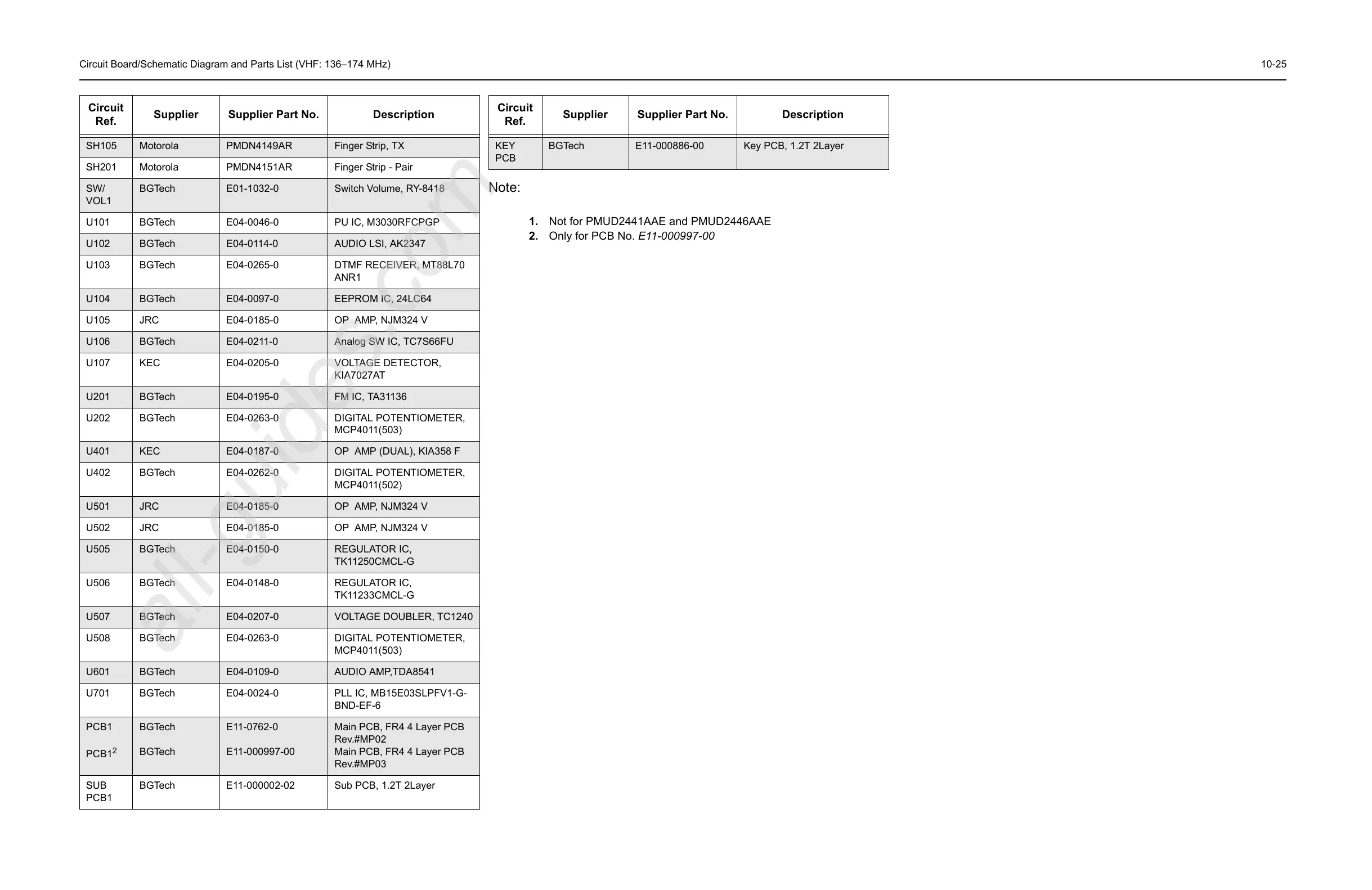

Circuit Board/Schematic Diagram and Parts List (VHF: 136–174 MHz) 10-25
Note:
1. Not for PMUD2441AAE and PMUD2446AAE
2. Only for PCB No. E11-000997-00
SH105 Motorola PMDN4149AR Finger Strip, TX
SH201 Motorola PMDN4151AR Finger Strip - Pair
SW/
VOL1
BGTech E01-1032-0 Switch Volume, RY-8418
U101 BGTech E04-0046-0 PU IC, M3030RFCPGP
U102 BGTech E04-0114-0 AUDIO LSI, AK2347
U103 BGTech E04-0265-0 DTMF RECEIVER, MT88L70
ANR1
U104 BGTech E04-0097-0 EEPROM IC, 24LC64
U105 JRC E04-0185-0 OP AMP, NJM324 V
U106 BGTech E04-0211-0 Analog SW IC, TC7S66FU
U107 KEC E04-0205-0 VOLTAGE DETECTOR,
KIA7027AT
U201 BGTech E04-0195-0 FM IC, TA31136
U202 BGTech E04-0263-0 DIGITAL POTENTIOMETER,
MCP4011(503)
U401 KEC E04-0187-0 OP AMP (DUAL), KIA358 F
U402 BGTech E04-0262-0 DIGITAL POTENTIOMETER,
MCP4011(502)
U501 JRC E04-0185-0 OP AMP, NJM324 V
U502 JRC E04-0185-0 OP AMP, NJM324 V
U505 BGTech E04-0150-0 REGULATOR IC,
TK11250CMCL-G
U506 BGTech E04-0148-0 REGULATOR IC,
TK11233CMCL-G
U507 BGTech E04-0207-0 VOLTAGE DOUBLER, TC1240
U508 BGTech E04-0263-0 DIGITAL POTENTIOMETER,
MCP4011(503)
U601 BGTech E04-0109-0 AUDIO AMP,TDA8541
U701 BGTech E04-0024-0 PLL IC, MB15E03SLPFV1-G-
BND-EF-6
PCB1
PCB1
2
BGTech
BGTech
E11-0762-0
E11-000997-00
Main PCB, FR4 4 Layer PCB
Rev.#MP02
Main PCB, FR4 4 Layer PCB
Rev.#MP03
SUB
PCB1
BGTech E11-000002-02 Sub PCB, 1.2T 2Layer
Circuit
Ref.
Supplier Supplier Part No. Description
KEY
PCB
BGTech E11-000886-00 Key PCB, 1.2T 2Layer
Circuit
Ref.
Supplier Supplier Part No. Description
