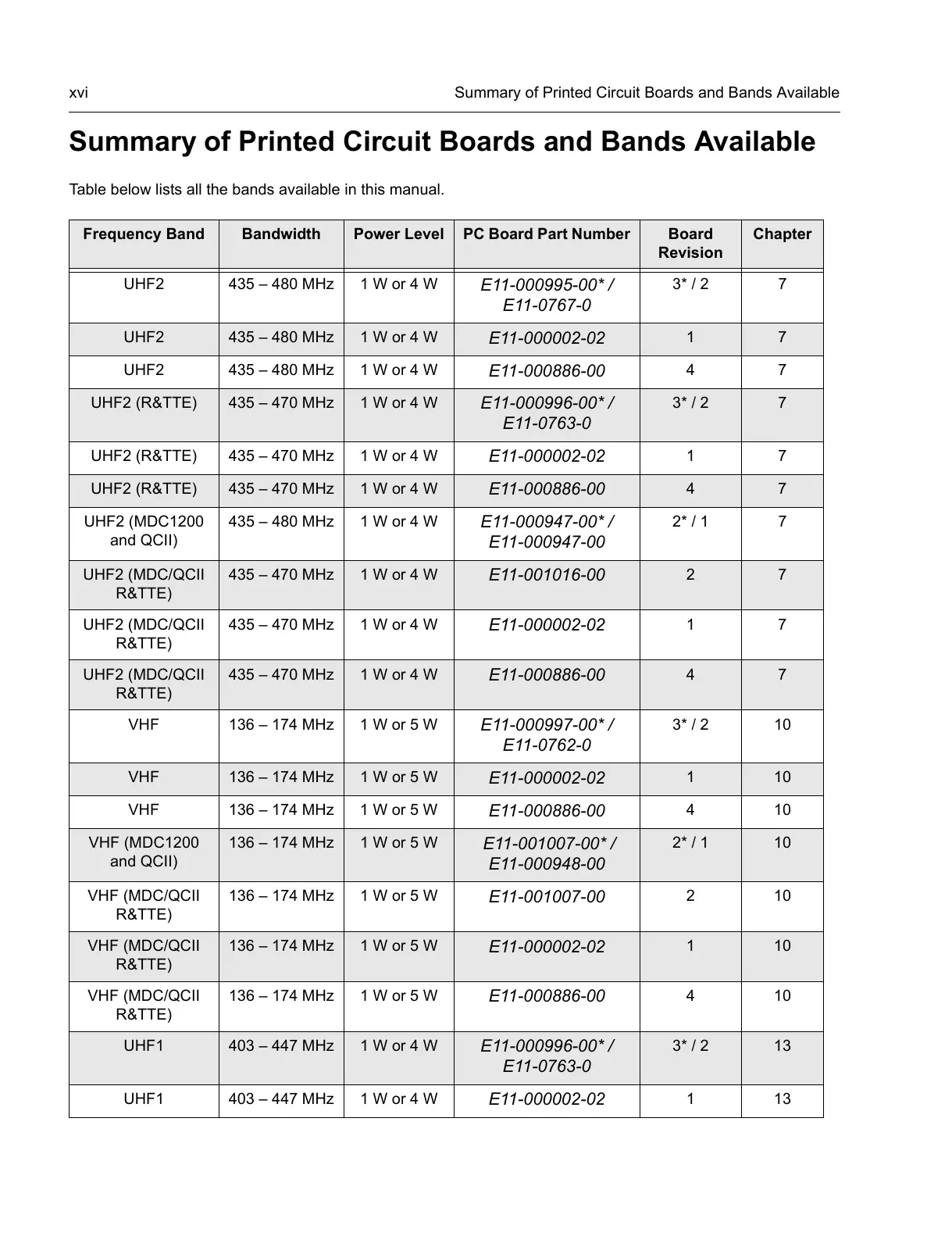

Motorola P100 Series Detailed Service Manual

xvi Summary of Printed Circuit Boards and Bands Available
Summary of Printed Circuit Boards and Bands Available
Table below lists all the bands available in this manual.
Frequency Band Bandwidth Power Level PC Board Part Number Board
Revision
Chapter
UHF2 435 – 480 MHz 1 W or 4 W
E11-000995-00* /
E11-0767-0
3* / 2 7
UHF2 435 – 480 MHz 1 W or 4 W
E11-000002-02
1 7
UHF2 435 – 480 MHz 1 W or 4 W
E11-000886-00
47
UHF2 (R&TTE) 435 – 470 MHz 1 W or 4 W
E11-000996-00* /
E11-0763-0
3* / 2 7
UHF2 (R&TTE) 435 – 470 MHz 1 W or 4 W
E11-000002-02
17
UHF2 (R&TTE) 435 – 470 MHz 1 W or 4 W
E11-000886-00
4 7
UHF2 (MDC1200
and QCII)
435 – 480 MHz 1 W or 4 W
E11-000947-00* /
E11-000947-00
2* / 1 7
UHF2 (MDC/QCII
R&TTE)
435 – 470 MHz 1 W or 4 W
E11-001016-00
2 7
UHF2 (MDC/QCII
R&TTE)
435 – 470 MHz 1 W or 4 W
E11-000002-02
17
UHF2 (MDC/QCII
R&TTE)
435 – 470 MHz 1 W or 4 W
E11-000886-00
4 7
VHF 136 – 174 MHz 1 W or 5 W
E11-000997-00* /
E11-0762-0
3* / 2 10
VHF 136 – 174 MHz 1 W or 5 W
E11-000002-02
1 10
VHF 136 – 174 MHz 1 W or 5 W
E11-000886-00
410
VHF (MDC1200
and QCII)
136 – 174 MHz 1 W or 5 W
E11-001007-00* /
E11-000948-00
2* / 1 10
VHF (MDC/QCII
R&TTE)
136 – 174 MHz 1 W or 5 W
E11-001007-00
210
VHF (MDC/QCII
R&TTE)
136 – 174 MHz 1 W or 5 W
E11-000002-02
1 10
VHF (MDC/QCII
R&TTE)
136 – 174 MHz 1 W or 5 W
E11-000886-00
410
UHF1 403 – 447 MHz 1 W or 4 W
E11-000996-00* /
E11-0763-0
3* / 2 13
UHF1 403 – 447 MHz 1 W or 4 W
E11-000002-02
113
