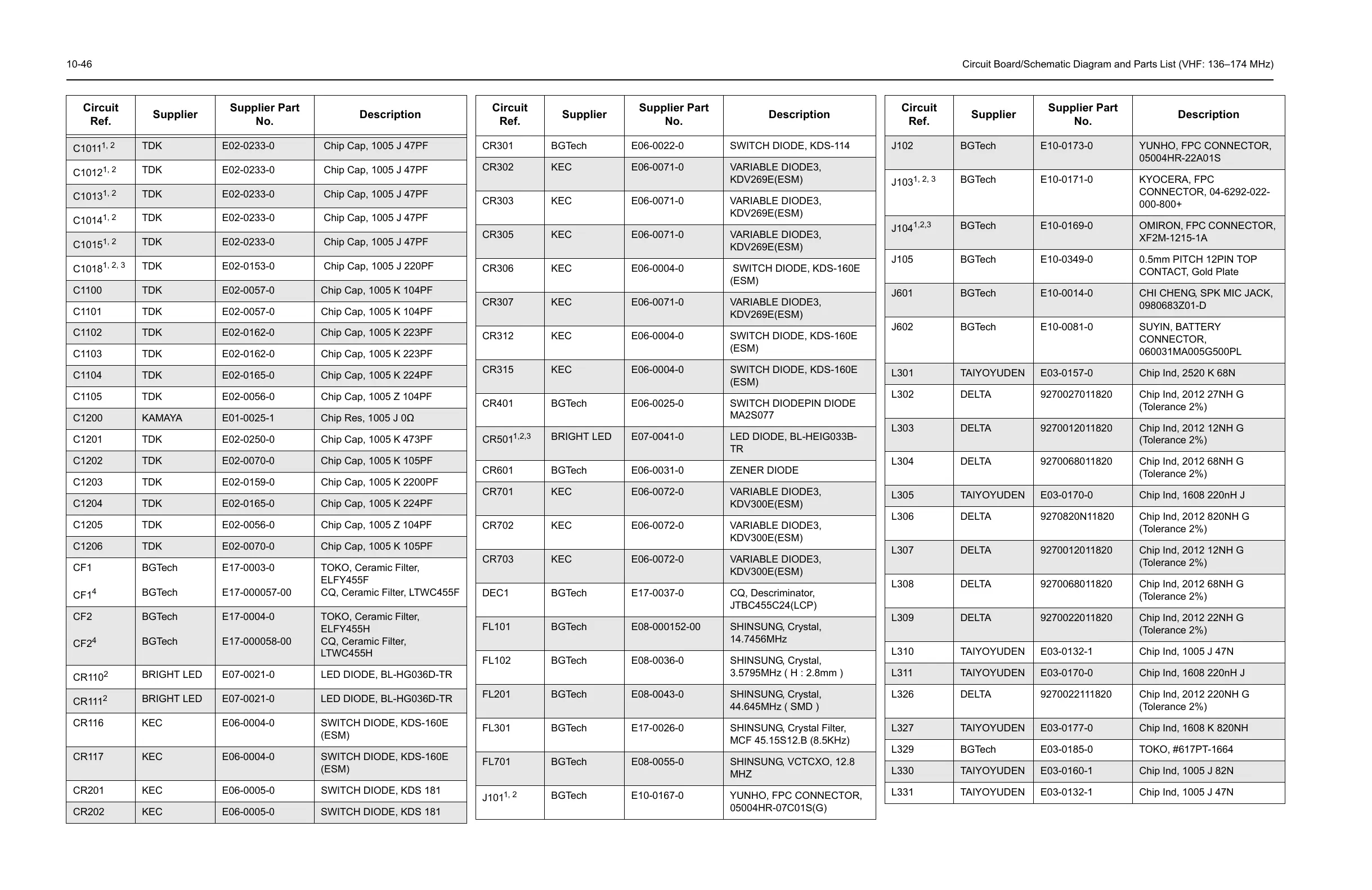

10-46 Circuit Board/Schematic Diagram and Parts List (VHF: 136–174 MHz)
C1011
1, 2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1012
1, 2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1013
1, 2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1014
1, 2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1015
1, 2
TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1018
1, 2, 3
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C1100 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C1101 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C1102 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C1103 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C1104 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C1105 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1200 KAMAYA E01-0025-1 Chip Res, 1005 J 0
C1201 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C1202 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C1203 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C1204 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C1205 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1206 TDK E02-0070-0 Chip Cap, 1005 K 105PF
CF1
CF1
4
BGTech
BGTech
E17-0003-0
E17-000057-00
TOKO, Ceramic Filter,
ELFY455F
CQ, Ceramic Filter, LTWC455F
CF2
CF2
4
BGTech
BGTech
E17-0004-0
E17-000058-00
TOKO, Ceramic Filter,
ELFY455H
CQ, Ceramic Filter,
LTWC455H
CR110
2
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR111
2
BRIGHT LED E07-0021-0 LED DIODE, BL-HG036D-TR
CR116 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR117 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR201 KEC E06-0005-0 SWITCH DIODE, KDS 181
CR202 KEC E06-0005-0 SWITCH DIODE, KDS 181
Circuit
Ref.
Supplier
Supplier Part
No.
Description
CR301 BGTech E06-0022-0 SWITCH DIODE, KDS-114
CR302 KEC E06-0071-0 VARIABLE DIODE3,
KDV269E(ESM)
CR303 KEC E06-0071-0 VARIABLE DIODE3,
KDV269E(ESM)
CR305 KEC E06-0071-0 VARIABLE DIODE3,
KDV269E(ESM)
CR306 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR307 KEC E06-0071-0 VARIABLE DIODE3,
KDV269E(ESM)
CR312 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR315 KEC E06-0004-0 SWITCH DIODE, KDS-160E
(ESM)
CR401 BGTech E06-0025-0 SWITCH DIODEPIN DIODE
MA2S077
CR501
1,2,3
BRIGHT LED E07-0041-0 LED DIODE, BL-HEIG033B-
TR
CR601 BGTech E06-0031-0 ZENER DIODE
CR701 KEC E06-0072-0 VARIABLE DIODE3,
KDV300E(ESM)
CR702 KEC E06-0072-0 VARIABLE DIODE3,
KDV300E(ESM)
CR703 KEC E06-0072-0 VARIABLE DIODE3,
KDV300E(ESM)
DEC1 BGTech E17-0037-0 CQ, Descriminator,
JTBC455C24(LCP)
FL101 BGTech E08-000152-00 SHINSUNG, Crystal,
14.7456MHz
FL102 BGTech E08-0036-0 SHINSUNG, Crystal,
3.5795MHz ( H : 2.8mm )
FL201 BGTech E08-0043-0 SHINSUNG, Crystal,
44.645MHz ( SMD )
FL301 BGTech E17-0026-0 SHINSUNG, Crystal Filter,
MCF 45.15S12.B (8.5KHz)
FL701 BGTech E08-0055-0 SHINSUNG, VCTCXO, 12.8
MHZ
J101
1, 2
BGTech E10-0167-0 YUNHO, FPC CONNECTOR,
05004HR-07C01S(G)
Circuit
Ref.
Supplier
Supplier Part
No.
Description
J102 BGTech E10-0173-0 YUNHO, FPC CONNECTOR,
05004HR-22A01S
J103
1, 2, 3
BGTech E10-0171-0 KYOCERA, FPC
CONNECTOR, 04-6292-022-
000-800+
J104
1,2,3
BGTech E10-0169-0 OMIRON, FPC CONNECTOR,
XF2M-1215-1A
J105 BGTech E10-0349-0 0.5mm PITCH 12PIN TOP
CONTACT, Gold Plate
J601 BGTech E10-0014-0 CHI CHENG, SPK MIC JACK,
0980683Z01-D
J602 BGTech E10-0081-0 SUYIN, BATTERY
CONNECTOR,
060031MA005G500PL
L301 TAIYOYUDEN E03-0157-0 Chip Ind, 2520 K 68N
L302 DELTA 9270027011820 Chip Ind, 2012 27NH G
(Tolerance 2%)
L303 DELTA 9270012011820 Chip Ind, 2012 12NH G
(Tolerance 2%)
L304 DELTA 9270068011820 Chip Ind, 2012 68NH G
(Tolerance 2%)
L305 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L306 DELTA 9270820N11820 Chip Ind, 2012 820NH G
(Tolerance 2%)
L307 DELTA 9270012011820 Chip Ind, 2012 12NH G
(Tolerance 2%)
L308 DELTA 9270068011820 Chip Ind, 2012 68NH G
(Tolerance 2%)
L309 DELTA 9270022011820 Chip Ind, 2012 22NH G
(Tolerance 2%)
L310 TAIYOYUDEN E03-0132-1 Chip Ind, 1005 J 47N
L311 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L326 DELTA 9270022111820 Chip Ind, 2012 220NH G
(Tolerance 2%)
L327 TAIYOYUDEN E03-0177-0 Chip Ind, 1608 K 820NH
L329 BGTech E03-0185-0 TOKO, #617PT-1664
L330 TAIYOYUDEN E03-0160-1 Chip Ind, 1005 J 82N
L331 TAIYOYUDEN E03-0132-1 Chip Ind, 1005 J 47N
Circuit
Ref.
Supplier
Supplier Part
No.
Description
