Motorola P100 Series - Page 214

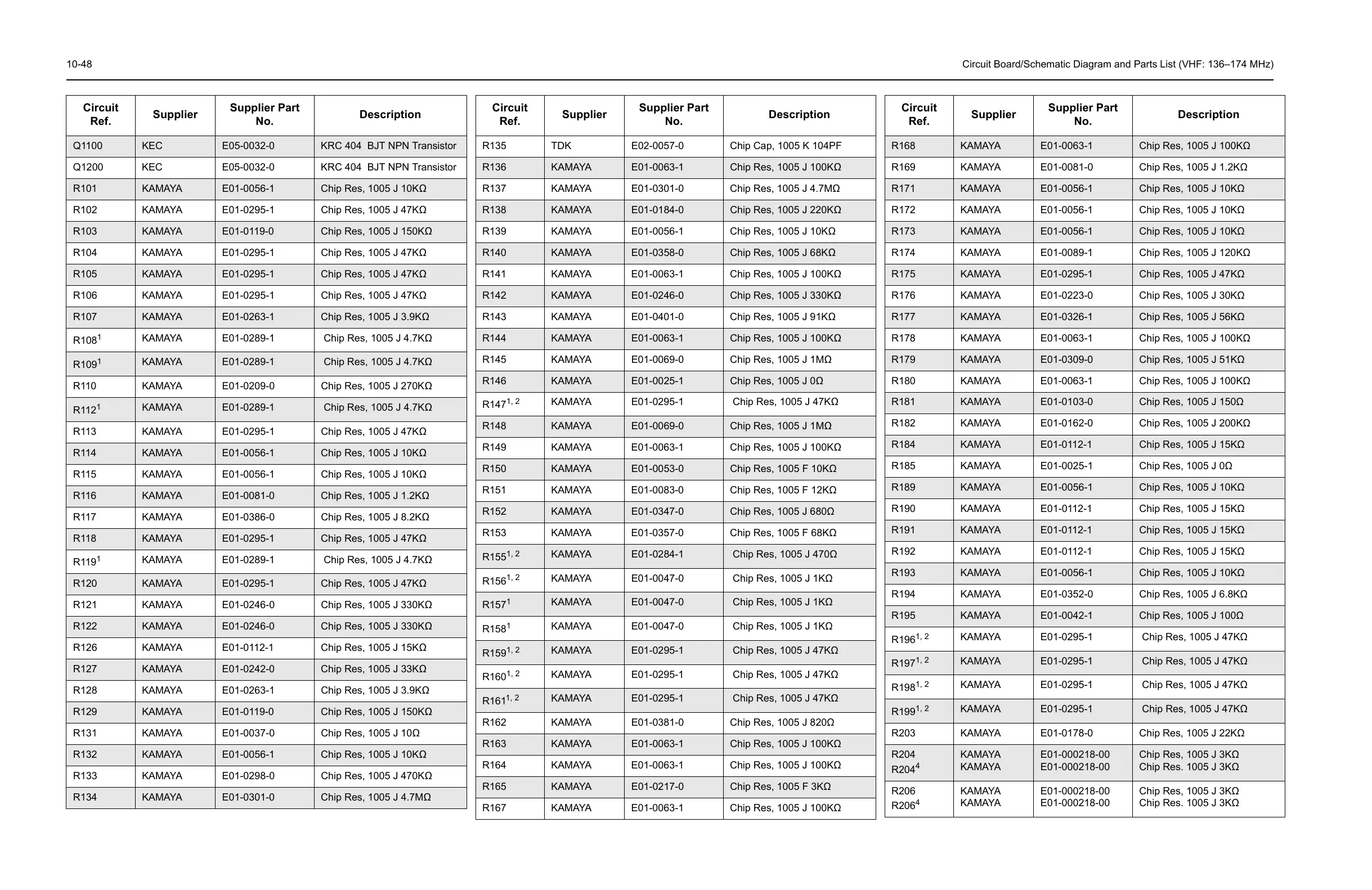

10-48 Circuit Board/Schematic Diagram and Parts List (VHF: 136–174 MHz)
Q1100 KEC E05-0032-0 KRC 404 BJT NPN Transistor
Q1200 KEC E05-0032-0 KRC 404 BJT NPN Transistor
R101 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R102 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R103 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R104 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R106 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R107 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R108
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R109
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R110 KAMAYA E01-0209-0 Chip Res, 1005 J 270K
R112
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R113 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R114 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R115 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R116 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R117 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R118 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R119
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R120 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R121 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R122 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R126 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R127 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R128 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R129 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R131 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R132 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R133 KAMAYA E01-0298-0 Chip Res, 1005 J 470K
R134 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M
Circuit
Ref.
Supplier
Supplier Part
No.
Description
R135 TDK E02-0057-0 Chip Cap, 1005 K 104PF
R136 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R137 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M
R138 KAMAYA E01-0184-0 Chip Res, 1005 J 220K
R139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R140 KAMAYA E01-0358-0 Chip Res, 1005 J 68K
R141 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R142 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R143 KAMAYA E01-0401-0 Chip Res, 1005 J 91K
R144 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R145 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
R146 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R147
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R148 KAMAYA E01-0069-0 Chip Res, 1005 J 1M
R149 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R150 KAMAYA E01-0053-0 Chip Res, 1005 F 10K
R151 KAMAYA E01-0083-0 Chip Res, 1005 F 12K
R152 KAMAYA E01-0347-0 Chip Res, 1005 J 680
R153 KAMAYA E01-0357-0 Chip Res, 1005 F 68K
R155
1, 2
KAMAYA E01-0284-1 Chip Res, 1005 J 470
R156
1, 2
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R157
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R158
1
KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R159
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R160
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R161
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R162 KAMAYA E01-0381-0 Chip Res, 1005 J 820
R163 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R164 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R165 KAMAYA E01-0217-0 Chip Res, 1005 F 3K
R167 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
Circuit
Ref.
Supplier
Supplier Part
No.
Description
R168 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R169 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R171 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R172 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R173 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R174 KAMAYA E01-0089-1 Chip Res, 1005 J 120K
R175 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R176 KAMAYA E01-0223-0 Chip Res, 1005 J 30K
R177 KAMAYA E01-0326-1 Chip Res, 1005 J 56K
R178 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R179 KAMAYA E01-0309-0 Chip Res, 1005 J 51K
R180 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R181 KAMAYA E01-0103-0 Chip Res, 1005 J 150
R182 KAMAYA E01-0162-0 Chip Res, 1005 J 200K
R184 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R185 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R189 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R190 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R191 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R192 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R193 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R194 KAMAYA E01-0352-0 Chip Res, 1005 J 6.8K
R195 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R196
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R197
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R198
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R199
1, 2
KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R203 KAMAYA E01-0178-0 Chip Res, 1005 J 22K
R204
R204
4
KAMAYA
KAMAYA
E01-000218-00
E01-000218-00
Chip Res, 1005 J 3K
Chip Res. 1005 J 3K
R206
R206
4
KAMAYA
KAMAYA
E01-000218-00
E01-000218-00
Chip Res, 1005 J 3K
Chip Res. 1005 J 3K
Circuit
Ref.
Supplier
Supplier Part
No.
Description
