Motorola P100 Series - Page 216

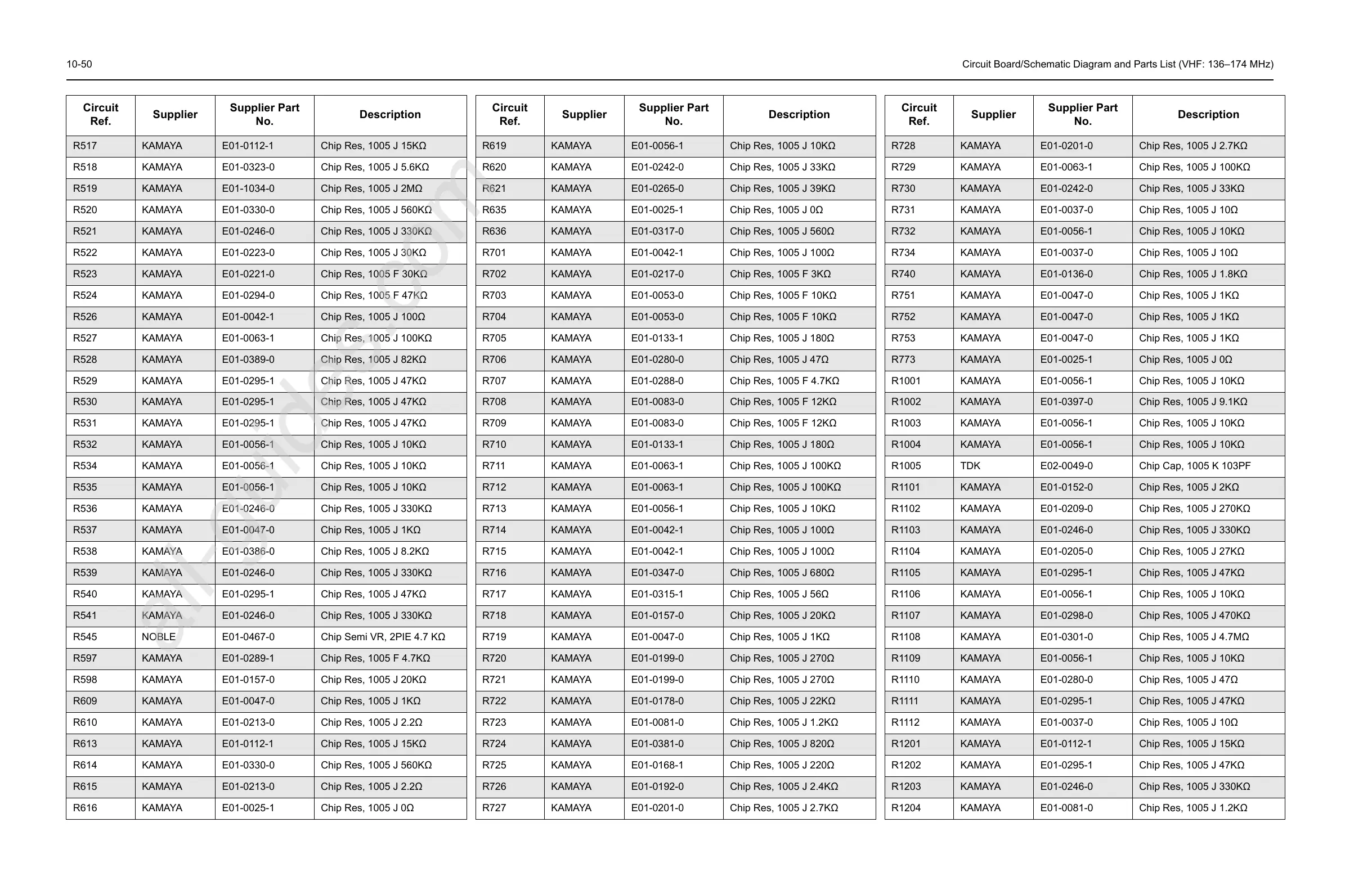

10-50 Circuit Board/Schematic Diagram and Parts List (VHF: 136–174 MHz)
R517 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R518 KAMAYA E01-0323-0 Chip Res, 1005 J 5.6K
R519 KAMAYA E01-1034-0 Chip Res, 1005 J 2M
R520 KAMAYA E01-0330-0 Chip Res, 1005 J 560K
R521 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R522 KAMAYA E01-0223-0 Chip Res, 1005 J 30K
R523 KAMAYA E01-0221-0 Chip Res, 1005 F 30K
R524 KAMAYA E01-0294-0 Chip Res, 1005 F 47K
R526 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R527 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R528 KAMAYA E01-0389-0 Chip Res, 1005 J 82K
R529 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R530 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R531 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R532 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R534 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R535 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R536 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R537 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R538 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R539 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R540 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R541 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R545 NOBLE E01-0467-0 Chip Semi VR, 2PIE 4.7 K
R597 KAMAYA E01-0289-1 Chip Res, 1005 F 4.7K
R598 KAMAYA E01-0157-0 Chip Res, 1005 J 20K
R609 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R610 KAMAYA E01-0213-0 Chip Res, 1005 J 2.2
R613 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R614 KAMAYA E01-0330-0 Chip Res, 1005 J 560K
R615 KAMAYA E01-0213-0 Chip Res, 1005 J 2.2
R616 KAMAYA E01-0025-1 Chip Res, 1005 J 0
Circuit
Ref.
Supplier
Supplier Part
No.
Description
R619 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R620 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R621 KAMAYA E01-0265-0 Chip Res, 1005 J 39K
R635 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R636 KAMAYA E01-0317-0 Chip Res, 1005 J 560
R701 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R702 KAMAYA E01-0217-0 Chip Res, 1005 F 3K
R703 KAMAYA E01-0053-0 Chip Res, 1005 F 10K
R704 KAMAYA E01-0053-0 Chip Res, 1005 F 10K
R705 KAMAYA E01-0133-1 Chip Res, 1005 J 180
R706 KAMAYA E01-0280-0 Chip Res, 1005 J 47
R707 KAMAYA E01-0288-0 Chip Res, 1005 F 4.7K
R708 KAMAYA E01-0083-0 Chip Res, 1005 F 12K
R709 KAMAYA E01-0083-0 Chip Res, 1005 F 12K
R710 KAMAYA E01-0133-1 Chip Res, 1005 J 180
R711 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R712 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R713 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R714 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R715 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R716 KAMAYA E01-0347-0 Chip Res, 1005 J 680
R717 KAMAYA E01-0315-1 Chip Res, 1005 J 56
R718 KAMAYA E01-0157-0 Chip Res, 1005 J 20K
R719 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R720 KAMAYA E01-0199-0 Chip Res, 1005 J 270
R721 KAMAYA E01-0199-0 Chip Res, 1005 J 270
R722 KAMAYA E01-0178-0 Chip Res, 1005 J 22K
R723 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R724 KAMAYA E01-0381-0 Chip Res, 1005 J 820
R725 KAMAYA E01-0168-1 Chip Res, 1005 J 220
R726 KAMAYA E01-0192-0 Chip Res, 1005 J 2.4K
R727 KAMAYA E01-0201-0 Chip Res, 1005 J 2.7K
Circuit
Ref.
Supplier
Supplier Part
No.
Description
R728 KAMAYA E01-0201-0 Chip Res, 1005 J 2.7K
R729 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R730 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R731 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R732 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R734 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R740 KAMAYA E01-0136-0 Chip Res, 1005 J 1.8K
R751 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R752 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R753 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R773 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R1001 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1002 KAMAYA E01-0397-0 Chip Res, 1005 J 9.1K
R1003 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1004 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1005 TDK E02-0049-0 Chip Cap, 1005 K 103PF
R1101 KAMAYA E01-0152-0 Chip Res, 1005 J 2K
R1102 KAMAYA E01-0209-0 Chip Res, 1005 J 270K
R1103 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R1104 KAMAYA E01-0205-0 Chip Res, 1005 J 27K
R1105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R1106 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1107 KAMAYA E01-0298-0 Chip Res, 1005 J 470K
R1108 KAMAYA E01-0301-0 Chip Res, 1005 J 4.7M
R1109 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1110 KAMAYA E01-0280-0 Chip Res, 1005 J 47
R1111 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R1112 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R1201 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R1202 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R1203 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R1204 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
Circuit
Ref.
Supplier
Supplier Part
No.
Description
