Motorola P100 Series - Page 233

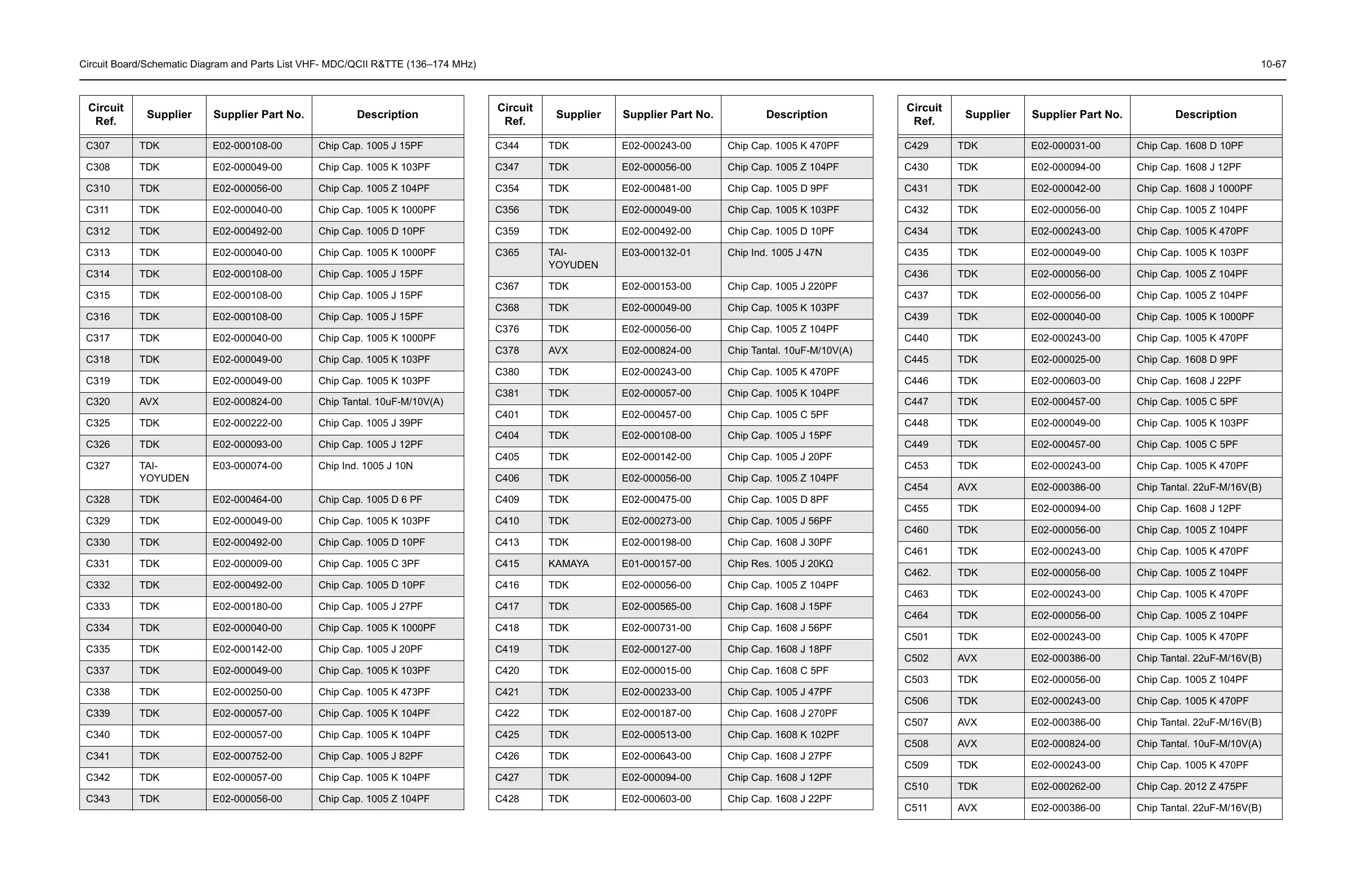

Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz) 10-67
C307 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C308 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C310 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C311 TDK E02-000040-00 Chip Cap. 1005 K 1000PF
C312 TDK E02-000492-00 Chip Cap. 1005 D 10PF
C313 TDK E02-000040-00 Chip Cap. 1005 K 1000PF
C314 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C315 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C316 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C317 TDK E02-000040-00 Chip Cap. 1005 K 1000PF
C318 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C319 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C320 AVX E02-000824-00 Chip Tantal. 10uF-M/10V(A)
C325 TDK E02-000222-00 Chip Cap. 1005 J 39PF
C326 TDK E02-000093-00 Chip Cap. 1005 J 12PF
C327 TAI-
YOYUDEN
E03-000074-00 Chip Ind. 1005 J 10N
C328 TDK E02-000464-00 Chip Cap. 1005 D 6 PF
C329 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C330 TDK E02-000492-00 Chip Cap. 1005 D 10PF
C331 TDK E02-000009-00 Chip Cap. 1005 C 3PF
C332 TDK E02-000492-00 Chip Cap. 1005 D 10PF
C333 TDK E02-000180-00 Chip Cap. 1005 J 27PF
C334 TDK E02-000040-00 Chip Cap. 1005 K 1000PF
C335 TDK E02-000142-00 Chip Cap. 1005 J 20PF
C337 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C338 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C339 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C340 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C341 TDK E02-000752-00 Chip Cap. 1005 J 82PF
C342 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C343 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
Circuit
Ref.
Supplier Supplier Part No. Description
C344 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C347 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C354 TDK E02-000481-00 Chip Cap. 1005 D 9PF
C356 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C359 TDK E02-000492-00 Chip Cap. 1005 D 10PF
C365 TAI-
YOYUDEN
E03-000132-01 Chip Ind. 1005 J 47N
C367 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C368 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C376 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C378 AVX E02-000824-00 Chip Tantal. 10uF-M/10V(A)
C380 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C381 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C401 TDK E02-000457-00 Chip Cap. 1005 C 5PF
C404 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C405 TDK E02-000142-00 Chip Cap. 1005 J 20PF
C406 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C409 TDK E02-000475-00 Chip Cap. 1005 D 8PF
C410 TDK E02-000273-00 Chip Cap. 1005 J 56PF
C413 TDK E02-000198-00 Chip Cap. 1608 J 30PF
C415 KAMAYA E01-000157-00 Chip Res. 1005 J 20K
C416 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C417 TDK E02-000565-00 Chip Cap. 1608 J 15PF
C418 TDK E02-000731-00 Chip Cap. 1608 J 56PF
C419 TDK E02-000127-00 Chip Cap. 1608 J 18PF
C420 TDK E02-000015-00 Chip Cap. 1608 C 5PF
C421 TDK E02-000233-00 Chip Cap. 1005 J 47PF
C422 TDK E02-000187-00 Chip Cap. 1608 J 270PF
C425 TDK E02-000513-00 Chip Cap. 1608 K 102PF
C426 TDK E02-000643-00 Chip Cap. 1608 J 27PF
C427 TDK E02-000094-00 Chip Cap. 1608 J 12PF
C428 TDK E02-000603-00 Chip Cap. 1608 J 22PF
Circuit
Ref.
Supplier Supplier Part No. Description
C429 TDK E02-000031-00 Chip Cap. 1608 D 10PF
C430 TDK E02-000094-00 Chip Cap. 1608 J 12PF
C431 TDK E02-000042-00 Chip Cap. 1608 J 1000PF
C432 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C434 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C435 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C436 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C437 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C439 TDK E02-000040-00 Chip Cap. 1005 K 1000PF
C440 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C445 TDK E02-000025-00 Chip Cap. 1608 D 9PF
C446 TDK E02-000603-00 Chip Cap. 1608 J 22PF
C447 TDK E02-000457-00 Chip Cap. 1005 C 5PF
C448 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C449 TDK E02-000457-00 Chip Cap. 1005 C 5PF
C453 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C454 AVX E02-000386-00 Chip Tantal. 22uF-M/16V(B)
C455 TDK E02-000094-00 Chip Cap. 1608 J 12PF
C460 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C461 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C462. TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C463 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C464 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C501 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C502 AVX E02-000386-00 Chip Tantal. 22uF-M/16V(B)
C503 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C506 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C507 AVX E02-000386-00 Chip Tantal. 22uF-M/16V(B)
C508 AVX E02-000824-00 Chip Tantal. 10uF-M/10V(A)
C509 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C510 TDK E02-000262-00 Chip Cap. 2012 Z 475PF
C511 AVX E02-000386-00 Chip Tantal. 22uF-M/16V(B)
Circuit
Ref.
Supplier Supplier Part No. Description
