Motorola P100 Series Detailed Service Manual

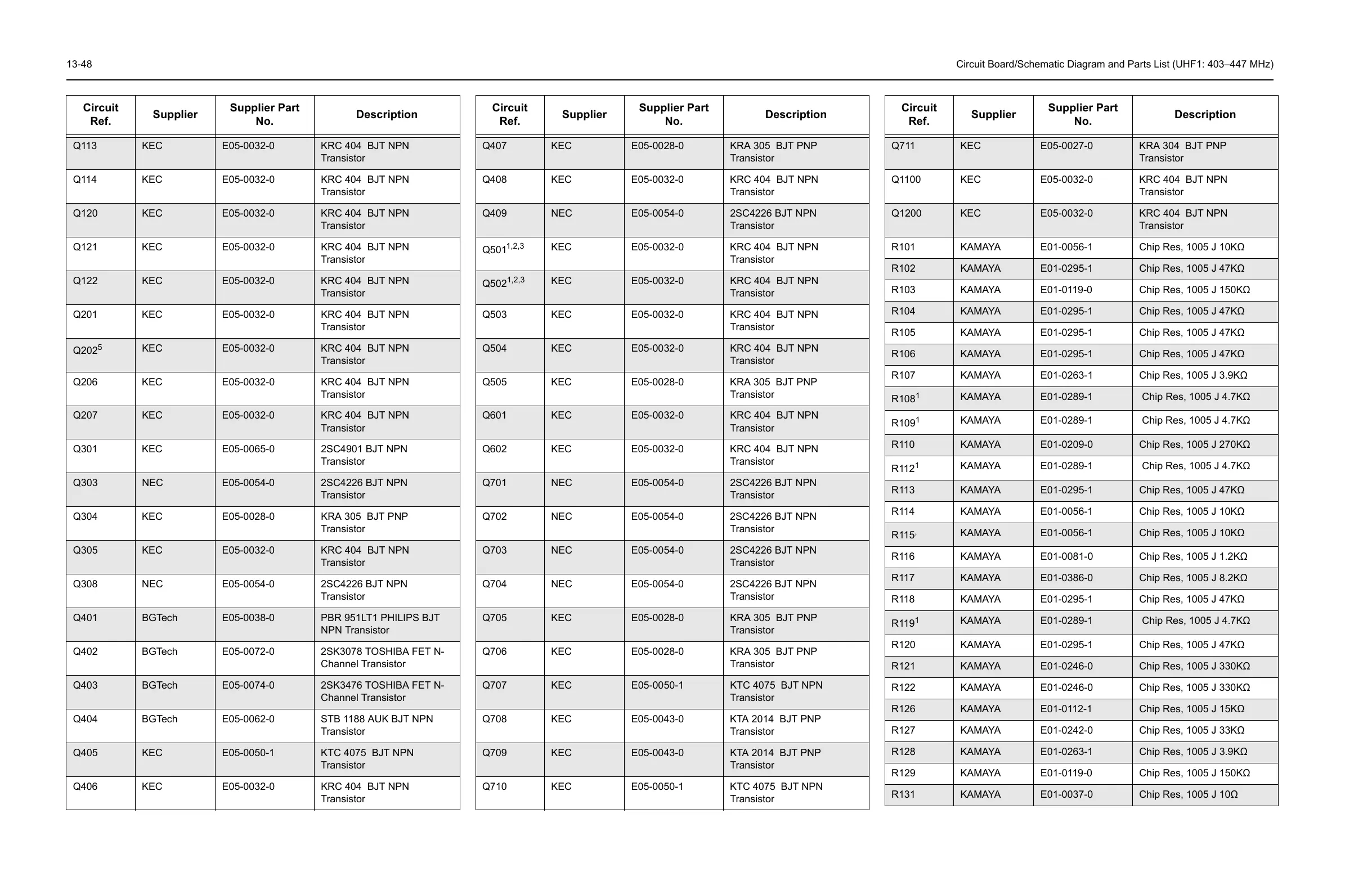

13-48 Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz)
Q113 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q114 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q120 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q121 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q122 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q201 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q202
5
KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q206 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q207 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q301 KEC E05-0065-0 2SC4901 BJT NPN
Transistor
Q303 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q304 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q305 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q308 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q401 BGTech E05-0038-0 PBR 951LT1 PHILIPS BJT
NPN Transistor
Q402 BGTech E05-0072-0 2SK3078 TOSHIBA FET N-
Channel Transistor
Q403 BGTech E05-0074-0 2SK3476 TOSHIBA FET N-
Channel Transistor
Q404 BGTech E05-0062-0 STB 1188 AUK BJT NPN
Transistor
Q405 KEC E05-0050-1 KTC 4075 BJT NPN
Transistor
Q406 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Circuit
Ref.
Supplier
Supplier Part
No.
Description
Q407 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q408 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q409 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q501
1,2,3
KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q502
1,2,3
KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q503 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q504 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q505 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q601 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q602 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q701 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q702 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q703 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q704 NEC E05-0054-0 2SC4226 BJT NPN
Transistor
Q705 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q706 KEC E05-0028-0 KRA 305 BJT PNP
Transistor
Q707 KEC E05-0050-1 KTC 4075 BJT NPN
Transistor
Q708 KEC E05-0043-0 KTA 2014 BJT PNP
Transistor
Q709 KEC E05-0043-0 KTA 2014 BJT PNP
Transistor
Q710 KEC E05-0050-1 KTC 4075 BJT NPN
Transistor
Circuit
Ref.
Supplier
Supplier Part
No.
Description
Q711 KEC E05-0027-0 KRA 304 BJT PNP
Transistor
Q1100 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
Q1200 KEC E05-0032-0 KRC 404 BJT NPN
Transistor
R101 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R102 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R103 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R104 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R105 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R106 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R107 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R108
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R109
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R110 KAMAYA E01-0209-0 Chip Res, 1005 J 270K
R112
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R113 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R114 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R115
,
KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R116 KAMAYA E01-0081-0 Chip Res, 1005 J 1.2K
R117 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R118 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R119
1
KAMAYA E01-0289-1 Chip Res, 1005 J 4.7K
R120 KAMAYA E01-0295-1 Chip Res, 1005 J 47K
R121 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R122 KAMAYA E01-0246-0 Chip Res, 1005 J 330K
R126 KAMAYA E01-0112-1 Chip Res, 1005 J 15K
R127 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R128 KAMAYA E01-0263-1 Chip Res, 1005 J 3.9K
R129 KAMAYA E01-0119-0 Chip Res, 1005 J 150K
R131 KAMAYA E01-0037-0 Chip Res, 1005 J 10
Circuit
Ref.
Supplier
Supplier Part
No.
Description
