Motorola P100 Series Detailed Service Manual

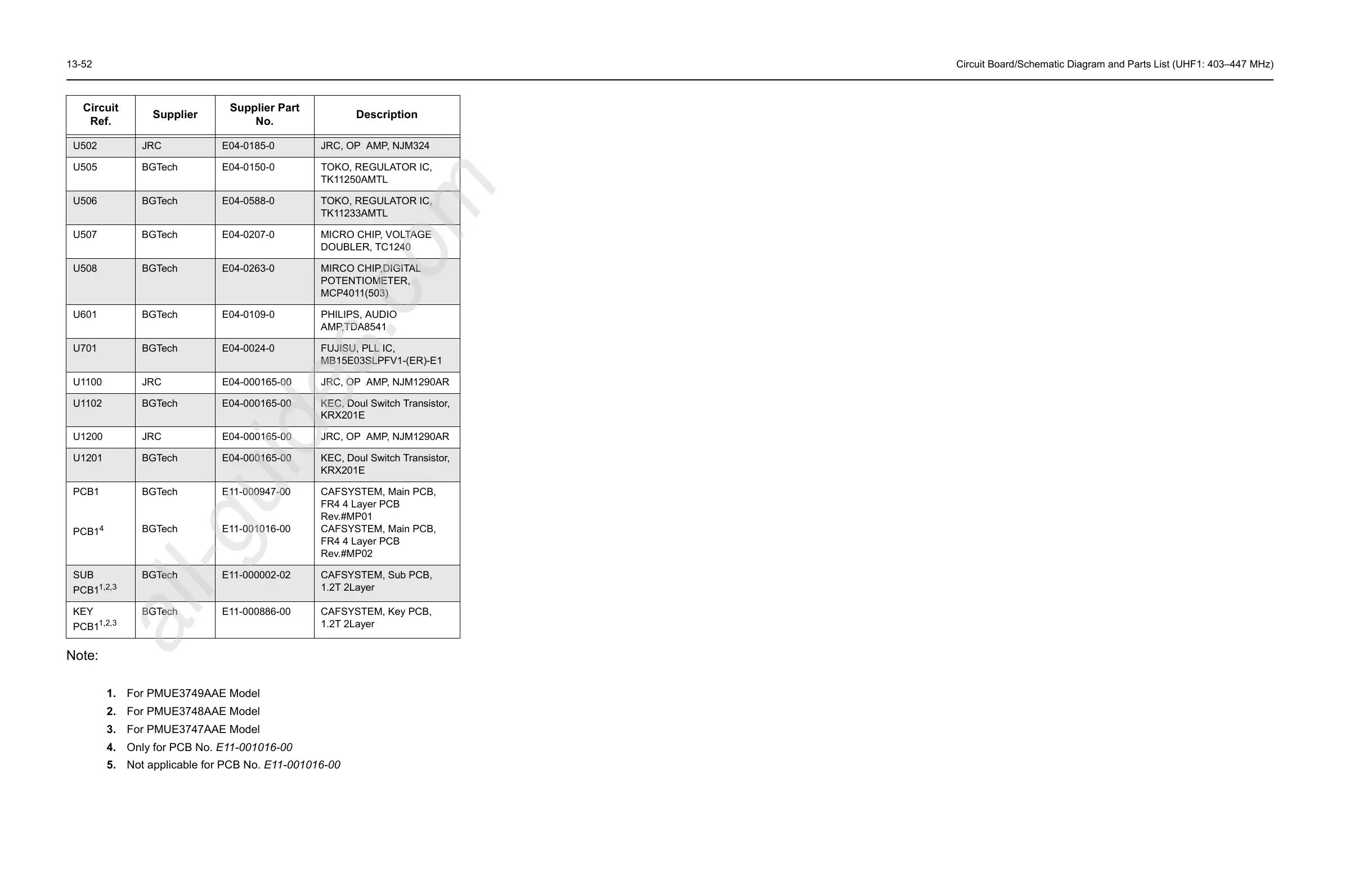

13-52 Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz)
Note:
1. For PMUE3749AAE Model
2. For PMUE3748AAE Model
3. For PMUE3747AAE Model
4. Only for PCB No. E11-001016-00
5. Not applicable for PCB No. E11-001016-00
U502 JRC E04-0185-0 JRC, OP AMP, NJM324
U505 BGTech E04-0150-0 TOKO, REGULATOR IC,
TK11250AMTL
U506 BGTech E04-0588-0 TOKO, REGULATOR IC,
TK11233AMTL
U507 BGTech E04-0207-0 MICRO CHIP, VOLTAGE
DOUBLER, TC1240
U508 BGTech E04-0263-0 MIRCO CHIP,DIGITAL
POTENTIOMETER,
MCP4011(503)
U601 BGTech E04-0109-0 PHILIPS, AUDIO
AMP,TDA8541
U701 BGTech E04-0024-0 FUJISU, PLL IC,
MB15E03SLPFV1-(ER)-E1
U1100 JRC E04-000165-00 JRC, OP AMP, NJM1290AR
U1102 BGTech E04-000165-00 KEC, Doul Switch Transistor,
KRX201E
U1200 JRC E04-000165-00 JRC, OP AMP, NJM1290AR
U1201 BGTech E04-000165-00 KEC, Doul Switch Transistor,
KRX201E
PCB1
PCB1
4
BGTech
BGTech
E11-000947-00
E11-001016-00
CAFSYSTEM, Main PCB,
FR4 4 Layer PCB
Rev.#MP01
CAFSYSTEM, Main PCB,
FR4 4 Layer PCB
Rev.#MP02
SUB
PCB1
1,2,3
BGTech E11-000002-02 CAFSYSTEM, Sub PCB,
1.2T 2Layer
KEY
PCB1
1,2,3
BGTech E11-000886-00 CAFSYSTEM, Key PCB,
1.2T 2Layer
Circuit
Ref.
Supplier
Supplier Part
No.
Description
