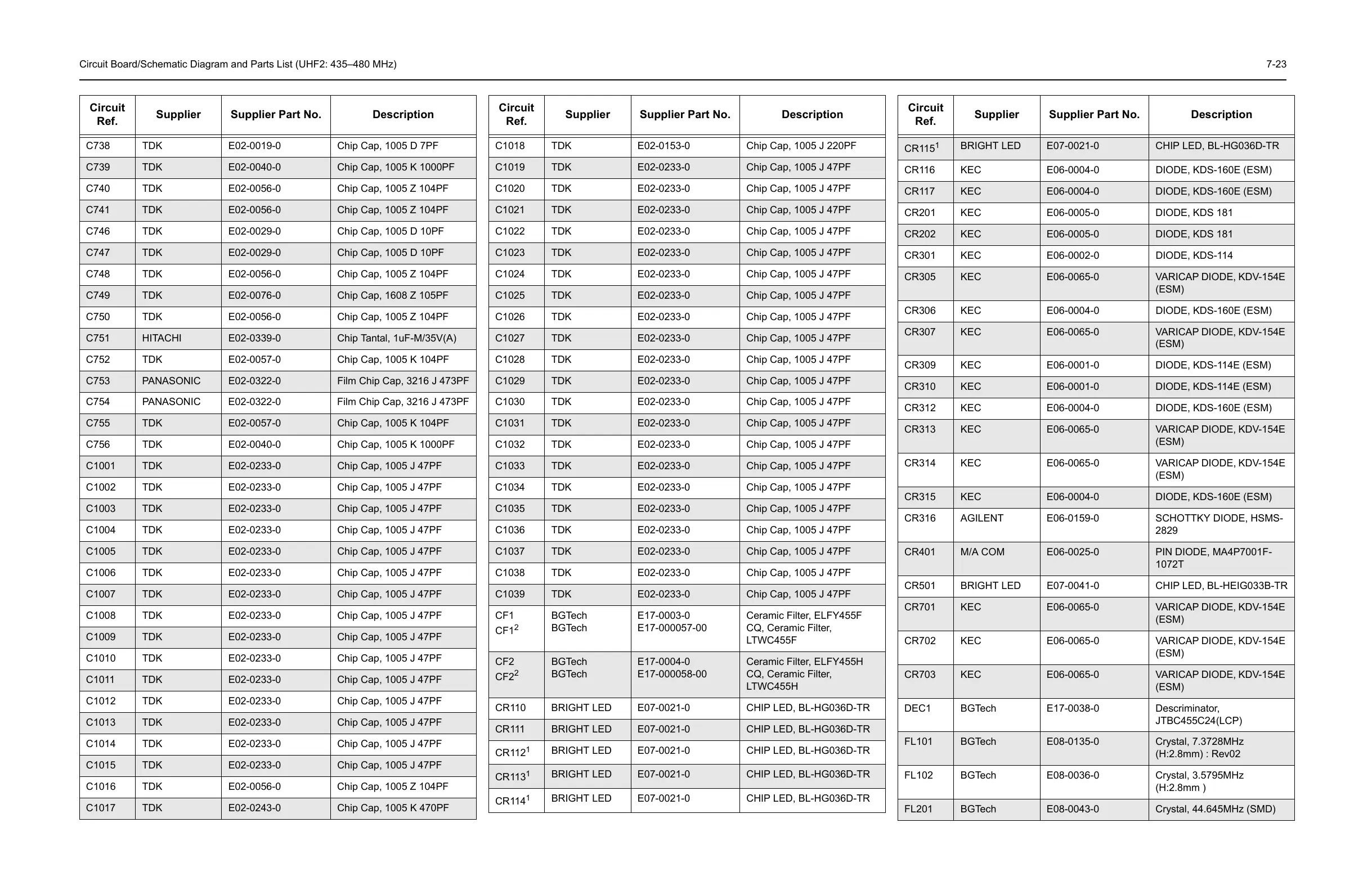

Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz) 7-23
C738 TDK E02-0019-0 Chip Cap, 1005 D 7PF
C739 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C740 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C741 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C746 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C747 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C748 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C749 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C750 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C751 HITACHI E02-0339-0 Chip Tantal, 1uF-M/35V(A)
C752 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C753 PANASONIC E02-0322-0 Film Chip Cap, 3216 J 473PF
C754 PANASONIC E02-0322-0 Film Chip Cap, 3216 J 473PF
C755 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C756 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C1001 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1002 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1003 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1004 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1005 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1006 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1007 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1008 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1009 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1010 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1011 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1012 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1013 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1014 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1015 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1016 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C1017 TDK E02-0243-0 Chip Cap, 1005 K 470PF
Circuit
Ref.
Supplier Supplier Part No. Description
C1018 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C1019 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1020 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1021 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1022 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1023 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1024 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1025 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1026 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1027 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1028 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1029 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1030 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1031 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1032 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1033 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1034 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1035 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1036 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1037 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1038 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C1039 TDK E02-0233-0 Chip Cap, 1005 J 47PF
CF1
CF1
2
BGTech
BGTech
E17-0003-0
E17-000057-00
Ceramic Filter, ELFY455F
CQ, Ceramic Filter,
LTWC455F
CF2
CF2
2
BGTech
BGTech
E17-0004-0
E17-000058-00
Ceramic Filter, ELFY455H
CQ, Ceramic Filter,
LTWC455H
CR110 BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR111 BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR112
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR113
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR114
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
Circuit
Ref.
Supplier Supplier Part No. Description
CR115
1
BRIGHT LED E07-0021-0 CHIP LED, BL-HG036D-TR
CR116 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR117 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR201 KEC E06-0005-0 DIODE, KDS 181
CR202 KEC E06-0005-0 DIODE, KDS 181
CR301 KEC E06-0002-0 DIODE, KDS-114
CR305 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
CR306 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR307 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
CR309 KEC E06-0001-0 DIODE, KDS-114E (ESM)
CR310 KEC E06-0001-0 DIODE, KDS-114E (ESM)
CR312 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR313 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
CR314 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
CR315 KEC E06-0004-0 DIODE, KDS-160E (ESM)
CR316 AGILENT E06-0159-0 SCHOTTKY DIODE, HSMS-
2829
CR401 M/A COM E06-0025-0 PIN DIODE, MA4P7001F-
1072T
CR501 BRIGHT LED E07-0041-0 CHIP LED, BL-HEIG033B-TR
CR701 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
CR702 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
CR703 KEC E06-0065-0 VARICAP DIODE, KDV-154E
(ESM)
DEC1 BGTech E17-0038-0 Descriminator,
JTBC455C24(LCP)
FL101 BGTech E08-0135-0 Crystal, 7.3728MHz
(H:2.8mm) : Rev02
FL102 BGTech E08-0036-0 Crystal, 3.5795MHz
(H:2.8mm )
FL201 BGTech E08-0043-0 Crystal, 44.645MHz (SMD)
Circuit
Ref.
Supplier Supplier Part No. Description
