Motorola P100 Series Detailed Service Manual

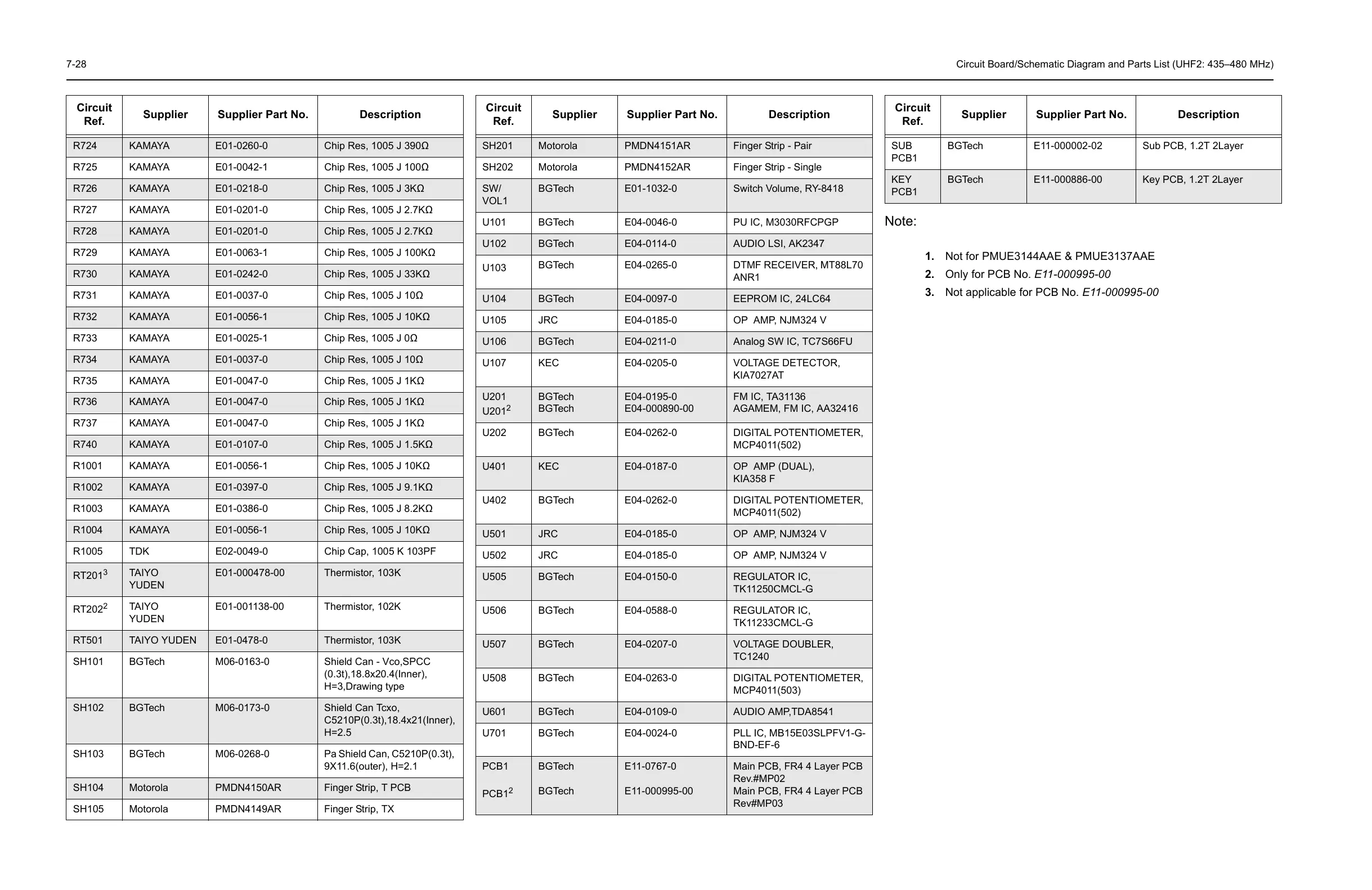

7-28 Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz)
Note:
1. Not for PMUE3144AAE & PMUE3137AAE
2. Only for PCB No. E11-000995-00
3. Not applicable for PCB No. E11-000995-00
R724 KAMAYA E01-0260-0 Chip Res, 1005 J 390
R725 KAMAYA E01-0042-1 Chip Res, 1005 J 100
R726 KAMAYA E01-0218-0 Chip Res, 1005 J 3K
R727 KAMAYA E01-0201-0 Chip Res, 1005 J 2.7K
R728 KAMAYA E01-0201-0 Chip Res, 1005 J 2.7K
R729 KAMAYA E01-0063-1 Chip Res, 1005 J 100K
R730 KAMAYA E01-0242-0 Chip Res, 1005 J 33K
R731 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R732 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R733 KAMAYA E01-0025-1 Chip Res, 1005 J 0
R734 KAMAYA E01-0037-0 Chip Res, 1005 J 10
R735 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R736 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R737 KAMAYA E01-0047-0 Chip Res, 1005 J 1K
R740 KAMAYA E01-0107-0 Chip Res, 1005 J 1.5K
R1001 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1002 KAMAYA E01-0397-0 Chip Res, 1005 J 9.1K
R1003 KAMAYA E01-0386-0 Chip Res, 1005 J 8.2K
R1004 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
R1005 TDK E02-0049-0 Chip Cap, 1005 K 103PF
RT201
3
TAIYO
YUDEN
E01-000478-00 Thermistor, 103K
RT202
2
TAIYO
YUDEN
E01-001138-00 Thermistor, 102K
RT501 TAIYO YUDEN E01-0478-0 Thermistor, 103K
SH101 BGTech M06-0163-0 Shield Can - Vco,SPCC
(0.3t),18.8x20.4(Inner),
H=3,Drawing type
SH102 BGTech M06-0173-0 Shield Can Tcxo,
C5210P(0.3t),18.4x21(Inner),
H=2.5
SH103 BGTech M06-0268-0 Pa Shield Can, C5210P(0.3t),
9X11.6(outer), H=2.1
SH104 Motorola PMDN4150AR Finger Strip, T PCB
SH105 Motorola PMDN4149AR Finger Strip, TX
Circuit
Ref.
Supplier Supplier Part No. Description
SH201 Motorola PMDN4151AR Finger Strip - Pair
SH202 Motorola PMDN4152AR Finger Strip - Single
SW/
VOL1
BGTech E01-1032-0 Switch Volume, RY-8418
U101 BGTech E04-0046-0 PU IC, M3030RFCPGP
U102 BGTech E04-0114-0 AUDIO LSI, AK2347
U103
BGTech E04-0265-0 DTMF RECEIVER, MT88L70
ANR1
U104 BGTech E04-0097-0 EEPROM IC, 24LC64
U105 JRC E04-0185-0 OP AMP, NJM324 V
U106 BGTech E04-0211-0 Analog SW IC, TC7S66FU
U107 KEC E04-0205-0 VOLTAGE DETECTOR,
KIA7027AT
U201
U201
2
BGTech
BGTech
E04-0195-0
E04-000890-00
FM IC, TA31136
AGAMEM, FM IC, AA32416
U202 BGTech E04-0262-0 DIGITAL POTENTIOMETER,
MCP4011(502)
U401 KEC E04-0187-0 OP AMP (DUAL),
KIA358 F
U402 BGTech E04-0262-0 DIGITAL POTENTIOMETER,
MCP4011(502)
U501 JRC E04-0185-0 OP AMP, NJM324 V
U502 JRC E04-0185-0 OP AMP, NJM324 V
U505 BGTech E04-0150-0 REGULATOR IC,
TK11250CMCL-G
U506 BGTech E04-0588-0 REGULATOR IC,
TK11233CMCL-G
U507 BGTech E04-0207-0 VOLTAGE DOUBLER,
TC1240
U508 BGTech E04-0263-0 DIGITAL POTENTIOMETER,
MCP4011(503)
U601 BGTech E04-0109-0 AUDIO AMP,TDA8541
U701 BGTech E04-0024-0 PLL IC, MB15E03SLPFV1-G-
BND-EF-6
PCB1
PCB1
2
BGTech
BGTech
E11-0767-0
E11-000995-00
Main PCB, FR4 4 Layer PCB
Rev.#MP02
Main PCB, FR4 4 Layer PCB
Rev#MP03
Circuit
Ref.
Supplier Supplier Part No. Description
SUB
PCB1
BGTech E11-000002-02 Sub PCB, 1.2T 2Layer
KEY
PCB1
BGTech E11-000886-00 Key PCB, 1.2T 2Layer
Circuit
Ref.
Supplier Supplier Part No. Description
